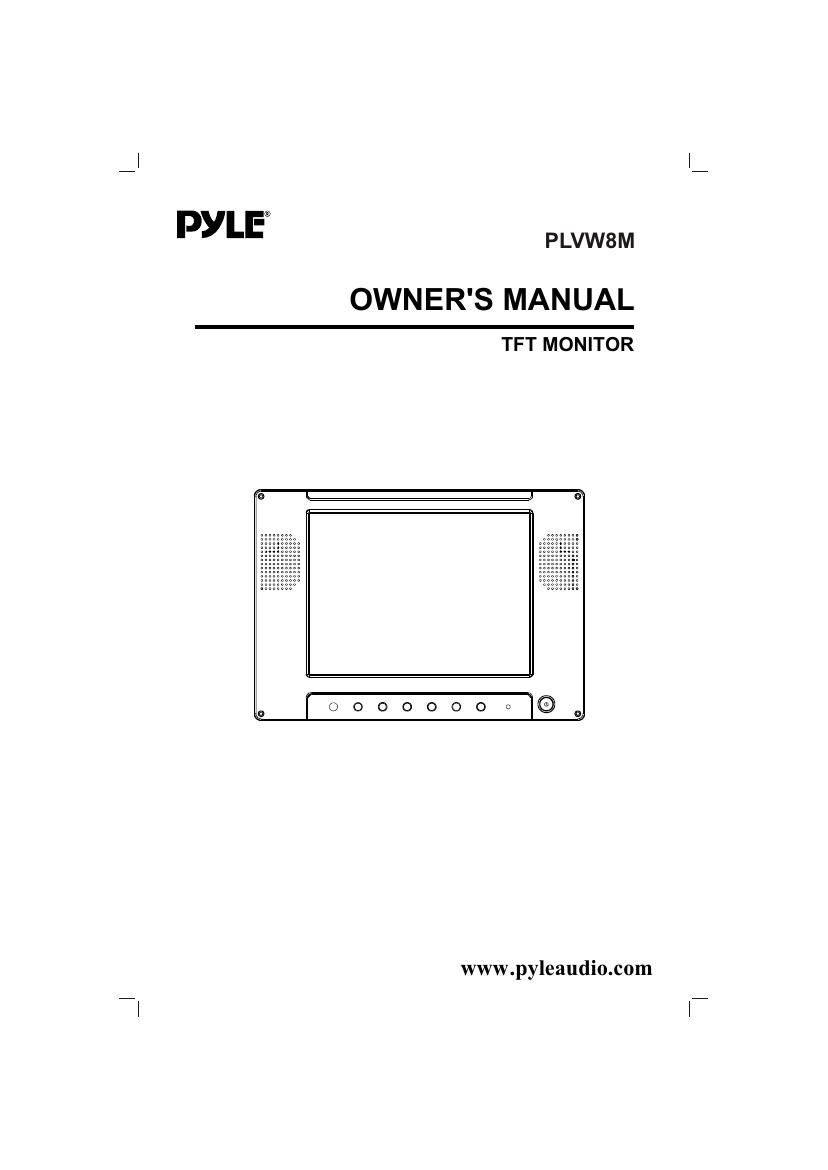

Pyle plvw 8 m owners manual
This is the 15 pages manual for pyle plvw 8 m owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plvw 8 m owners manual (Ocr-read)
Page 1
2INSTALLATION The monitor (Fig.1) can be installed on the bracket (Fig.2). You can mount the unit according to the following steps.1. Insert the position plate on the bracket into the slot 1 on the mounting bracket. Then slide the position plate upward to the slot 2 and select the proper location. Then rotate the screw cover 2 to fix the monitor on the bracket.2. When mounting the monitor on the bracket, you can release the screw cover 1 to turn the rotation top upward or downward to find a good viewing angle, then rotate the screw cover 1 to fix the rotation top.3. The monitor can be rotated leftward or rightward by rotating the rotation base.4. On the bottom of the base, there is a layer of magic tape. When you remove the protective paper, you can stick the unit to the desired location of your vehicle system. Be sure that the mounting surface is clear and dry.Mounting BracketSlot 2MonitorSlot 1Fig.1 Screw Cover 2Rotation TopRotation BaseScrew Cover 1Position PlateBaseFig2.
Page 2
3 Toother DVD/VCD systemREMOTE AUDIO R IN(RED)VIDEO IN(YELLOW)AUDIO L IN(WHITE)S-VIDEOIN (YELLOW)(WHITE)(RED)ELECTRICAL CONNECTION REDBLACKDCPLUGGround wireTothe +12V power terminal
