Pyle plvw 1345 r owners manual
This is the 7 pages manual for pyle plvw 1345 r owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plvw 1345 r owners manual (Ocr-read)

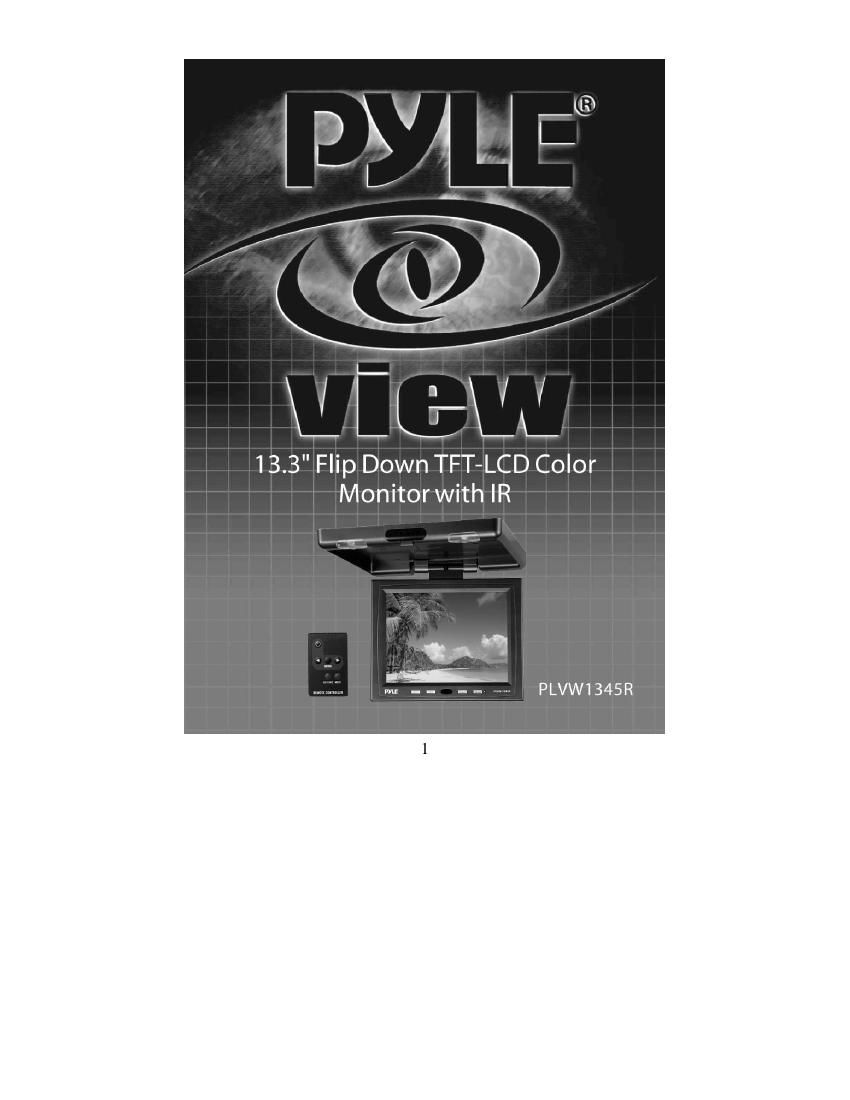

Page 1
2 TABLE OF CONTENT 1. INSTALLATION GUIDE 2. FUNCTION KEYS 2.1 FUNCTIONS OF FRONT PANEL 2.2 FUNCTIONS OF REMOTE CONTROL 3. TROUBLE SHOOTING 3.1 NO POWER 3.2 NO FUNCTION OF REMOTE CONTROL 3.3 NO DISPLAY OR NOT CLEAR 4. ACCESSORIES 5. SPECIFICATIONS
Page 2
3 1. INSTALLATION GUIDE 1. On a towel or soft cloth, gently place the monitor unit "facedown" on a stable work surface. 2. Locate the pigtail with the DIN connector. 3. Connect the DIN connector to the interface cable provided. 4. Connect the RED wire to the positive (+) battery terminal. 5. Connect the Black wire to a chassis electrical ground point. 6. Connect the cable with YELLOW RCA jack to Video Input sources for your Video Program material. 7. Connect the cable with RED and WHITE RCA jack to Audio sources for your Audio Program material.
