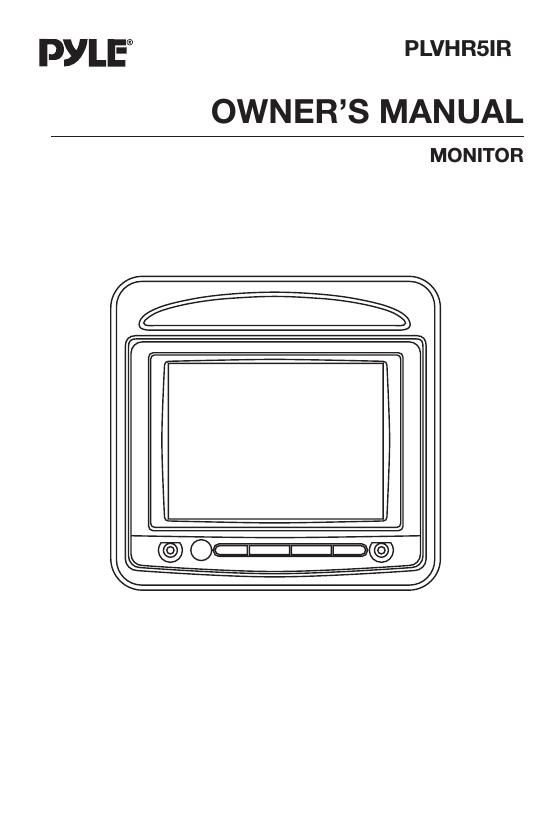

Pyle plvhr 5 ir owners manual
This is the 6 pages manual for pyle plvhr 5 ir owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plvhr 5 ir owners manual (Ocr-read)
Page 1
2 INSTALLATION The monitor is installed on the seat back of the car. First drill six holes on the seat back according to the hole positions on the back of the monitor. Then use six screws to fix the monitor to the seat back.
Page 2
3 ELECTRICAL CONNECTION CAUTION: 1. The monitor is connected to DVD or other unit through the cable with 9-pin mini din plug. Put the 9-pin mini din plug (1) into the 9-pin mini din socket (2) of the monitor. 2. The yellow VIDEO IN socket (3) is connected to the VIDEO OUT socket of the DVD or other unit. The white AUDIO L IN socket (4) is connected to the AUDIO Out- Left socket and the red AUDIO R IN socket (5) is connected to the AUDIO Out- Right socket. 3. When you want to let the unit work, please cut the (7) and (8) two wires from the DC plug (6). Then connect the red wire (7) to the positive (+) terminal of the power supply and the black wire (8) to the negative (-) of the power supply. 4. The black (9) REMOTE plug is connected to DVD or other unit. (3) VIDEO IN (4) AUDIO L IN (5) AUDIO R IN (6) DC PLUG (9) REMOTEYELLOW WHITE RED BLACK (7) RED (8) BLACK BLACKPVC CABLE (BLACK) (1) (2)
