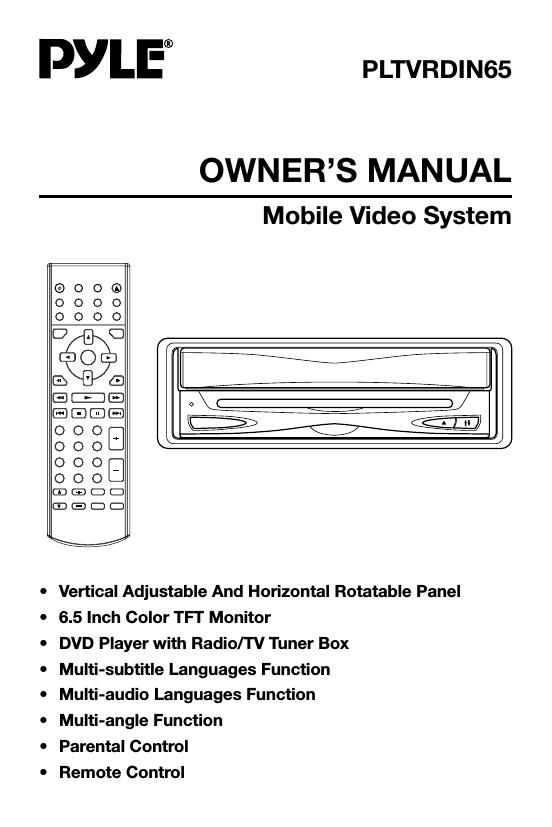

Pyle pltvrdin 65 owners manual
This is the 32 pages manual for pyle pltvrdin 65 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle pltvrdin 65 owners manual (Ocr-read)
Page 1
2 FEATURES Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD) This player can play discs recorded in either PAL or NTSC format. - A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders. - L/R stereo analog audio outputs for connection to existing head unit aux inputs. Video output is composite video. - Supplied remote handles multi-function software (multi-language audio- track/subtitle, multi-angle, multi- story, etc.), plus all basic functions. USE THIS PRODUCT SAFELY This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit protect you if you observe the following procedures for installation, use and servicing. This unit doesnt contain any parts that can be repaired by the user. When Driving Keep the volume level low enough to be aware of road and traffic conditions. When Car Washing Do not expose the product to water or excessive moisture. This could cause electrical shorts, fire or other damage. When Parked Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down before starting playback. Use the Proper Power Supply This product is designed to operate with a 12 volt DC, negative ground battery system (the regular system in a North American car).Protect the Disc Mechanism Avoid inserting any foreign objects into the slot of this player. Failure to observe this may cause malfunction due to the precise mechanism of this unit. Use Authorized Service Centres Do not attempt to disassemble or adjust this precision product. Please refer to the Service Centre list included with this product for service assistance. For Installation The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30°. Protect the Monitor Mechanism - The monitor is operated automatically. Do not draw the monitor out or turn it upward or downward manually. Otherwise, the mechanism construction may be harmed to some degree. - When you operate the monitor with the remote handset, do not touch the monitor by your hands. It may harm your fingers.
Page 2
Safety Information ......................................................................................................4 Disc Notes ...................................................................................................................5 Installation ...................................................................................................................6 The Player ...................................................................................................................8 Front View ...............................................................................................................8 Back View ...............................................................................................................9 The Radio Box...........................................................................................................10 Electrical Connection ...............................................................................................11 Remote Control ........................................................................................................12 Location and Function of Keys .............................................................................12 Preparing the Remote Control ..............................................................................14 Loading/ Ejecting a disc ..........................................................................................14 Loading a disc ......................................................................................................14 Ejecting a Disc ......................................................................................................14 Operation...................................................................................................................15 Basic Operation ....................................................................................................15 Disc (DVD, VCD, CD, MP3) Operation ..................................................................17 Radio Operation....................................................................................................21 TV Operation .........................................................................................................22 AV Operation.........................................................................................................23 RGB Operation .....................................................................................................23 Setup..........................................................................................................................24 Initial Setup ...........................................................................................................24 General Setup .......................................................................................................24 Speaker Setup ......................................................................................................26 Audio Setup ................................................................................................................26 Preferences Setup ................................................................................................27 Defaults Table .......................................................................................................29 Trouble Shooting ......................................................................................................30 Specifications ...........................................................................................................31 3 CONTENTS
