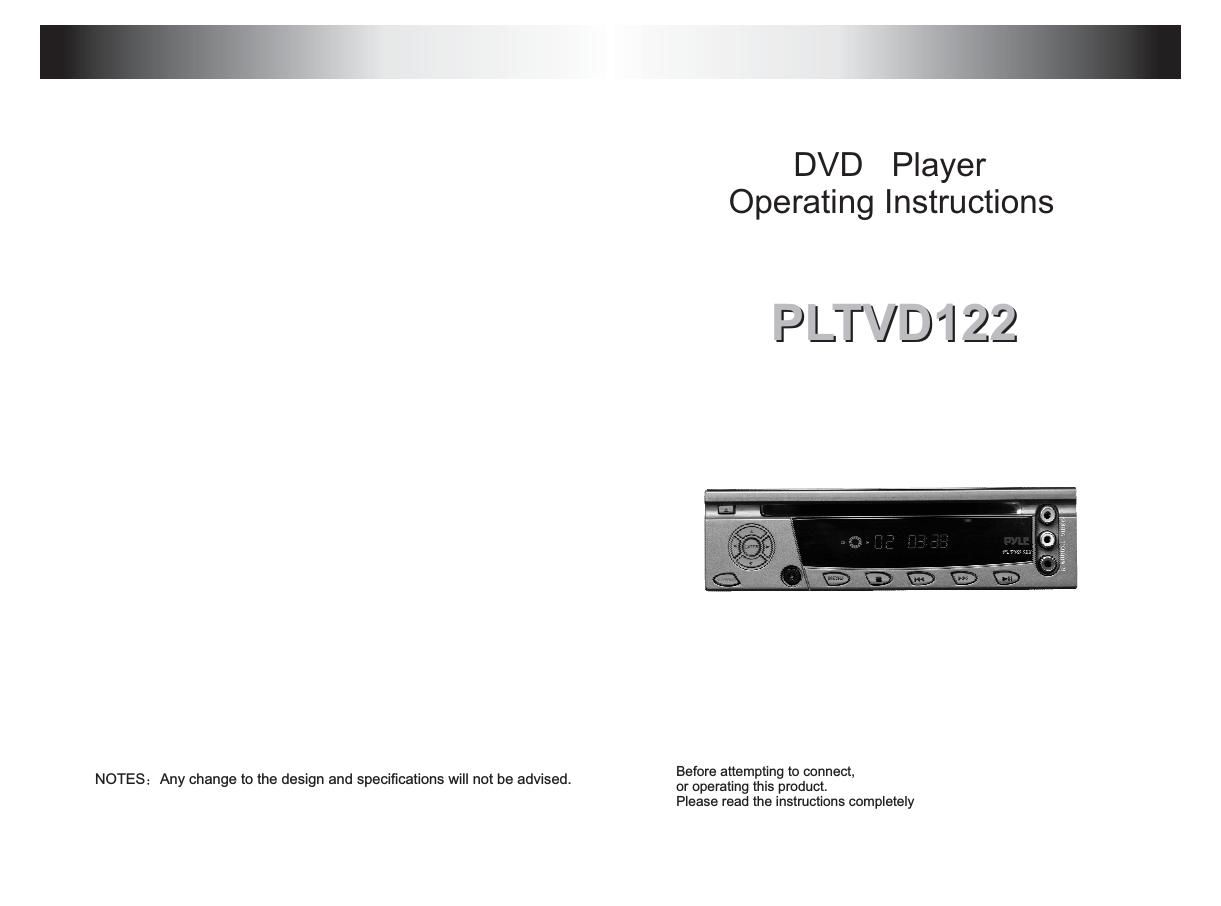

Pyle pltvd 122 owners manual
This is the 16 pages manual for pyle pltvd 122 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle pltvd 122 owners manual (Ocr-read)
Page 1
The design and manufacture of this player takes personnel safety in to consideration. However, any improper operation may result in electric shock, fire and other hazard. So Please adhere to following precautions. There is dangerous voltage inside this product, do not open the cabinet by yourself to prevent electric shock. Any service please contact professional technician to perform. Replacement shall apply the components recommended by the manufacturer; Safety precautions Operating precautions To prevent electricity leakage or damage, do not spill liquid,alcohol in the product; Do not drop anything into the product from ventilation hole of the cabinet or any other opening, to prevent electricity or damage; To power the player must be in line with the mark in the rear panel; When the plug of the unit is commented to the mains outlet, the unit will be still connected to AC even of the power is turned off. To prevent damage caused by lightening, when you are not going to use this product, please shut off the power; You should clean the cabinet with dry, soft cloth only after the power is turned off. Place the product levelly where there is little dust and good ventilation condition; Prevent the product and its supplied remote control from moisture, heating,vibration or direct sunlight; Condensation caused by moisture may happen to the lens inside the product, it will affect the play effect. In such case please turn on the power (unload the disc) to operate it for 1~ 2 hours, vaporize the condensation with the home-grown heat; Do not turn on/off the product frequently. After you turning off the product, please wait for about 10 seconds prior reopening it. Do not play the broken, scratched or twisted discs; Please do not put anything other than discs into the tray; When the disc is improperly loaded, please do not force. Table of content 1 _ ______________ 2 ______________ 3 ________ __ 5 _____________ 6 _______________ DVD features Names of parts Preparation before operation Frequent operations System setting 2.1 Frontal panel_________________ 2.2 Rear panel__________________ 2.3 Remote control________________ 3.1 unpacking and check_______________ 3.2 assembling batteries of remote control_______ 3.3 connections____________ ____ Play_____________________ Example 1:Set TV screen ratio mode________ __ Example 2:Set sound mix output mode_______ __ 4 ____________ __ Basic operations Mute ______________________ Stop playing___________________ The use of REMOTE SENSOR___________ Select content to be played with menu_______ _ Play fast forward_________________ Play fast backward________________ Slow play_____________________ Skip to next chapter/track_____________ _ Skip to previous chapter/track____________ Select track___________________ _ Display track List________________ _ Repeat play_________________ Select Subtitle language_____________ _ Program play________________ __ Display playing time and state____________ MP3 operations__________________ Example 3:Coaxial output______________ Example 4:Set age control grade_______ _____ Example 6:Set operation indication or menu display language_2 2 2 3 4 4 4 5 8 8 9 9 10 10 10 11 11 11 11 11 11 12 12 12 13 13 15 15 16 17 18 189 Important Precautions 1
Page 2
DVD features 1. DVD features 7 ____ 8 ______________ 9 ______________ 10 _______ ________ Functions of buttons in remote control Technical terms Troubleshooting Specification 1 Table of content 20 24 24 25 It provides this multi-media disc player high-resolution image with, high-quality sound and surround sound effect. The DVD player can play not only DVD discs of various versions, but also VCD, SUPER-VCD, DVCD, CD,MP3,etc. 1. It is compatible to DVD, VCD, SUPER-VCD, DVCD,CD, MP3, etc. 2. Multi language on screen menu. 3. High quality image with over 500 lines horizontal pesolution. 1. Dts digital output, provides high-fidelity stereo interface. 3. Multi-angle. The user can select different angle at their option to watch, e.g. closer angle, full view, etc. 4. Multi-image ratio. multi-image ratio mode enables the product to match different types of TV screen. Features Other features 2. Multi-language support. DVD supports up to 32- language caption and 8-language dub.
