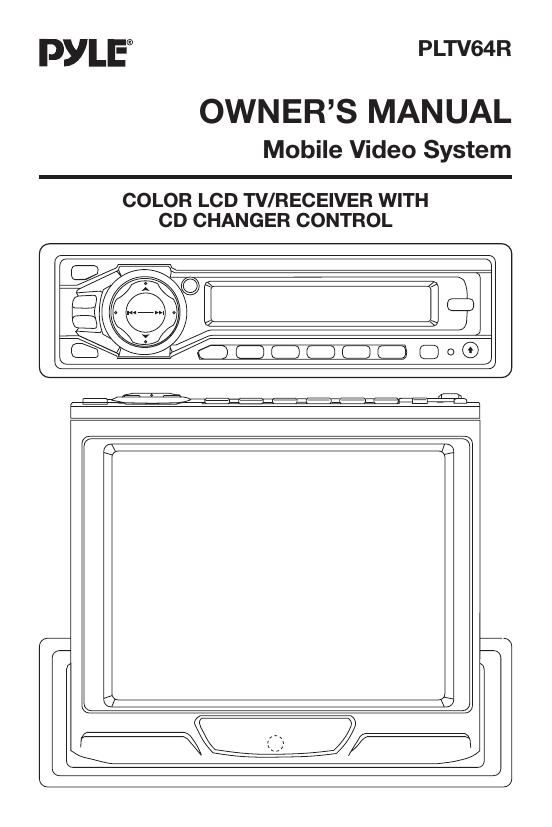

Pyle pltv 64 r owners manual
This is the 16 pages manual for pyle pltv 64 r owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle pltv 64 r owners manual (Ocr-read)
Page 1
2 Important Safety Instruction ........................................................................3 Installation .....................................................................................................4 Installation Hardware ..............................................................................................4 Mounting the Tuner Unit .........................................................................................5 Install the Display Unit ............................................................................................5 DIN Front-Mount .....................................................................................................5 DIN Rear-Mount ......................................................................................................6 Electrical Connection ...................................................................................7 Operation .......................................................................................................8 Location and Function of Keys ...............................................................................8 General Operation ................................................................................................10 Radio Operation....................................................................................................11 CDC Operation .....................................................................................................11 TV Operation .........................................................................................................12 Specification................................................................................................15 CONTENTS
Page 2
3 IMPORTANT SAFETY INSTRUCTION CAUTION: Please read and observe all warnings and instruction given in this owners manual and those marked on the unit. Keep these instructions. Retain this booklet for future reference. Please read the following safety instructions carefully. 1. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit protect you if you observe the following procedures for installation, use and servicing. This unit doesnt contain any parts that can be repaired by the user. 2. The screen display is operated automatically. Do not draw the screen display out or turn it upward or downward manually. Otherwise, the mechanism construction may be harmed to some degree. 3. When you operate the display unit, do not touch the display by your hands. It may harm your fingers.
