Page 1
11 System features and controls: Remote control functions 12 3 4 56 78 90 Number Pad POWER MUTE TV/AV TV/CATV SETUP FM/AM Monitor FUNC UP + MODE DN - CH VOL Power MUTE SETUP Monitor (Useless with DVD Player) TV/CATV interchange TV/AV Channels convertible(CH) Volume control buttons (Useless with Main Monitor) TV TUNER BOX TV01
Page 2

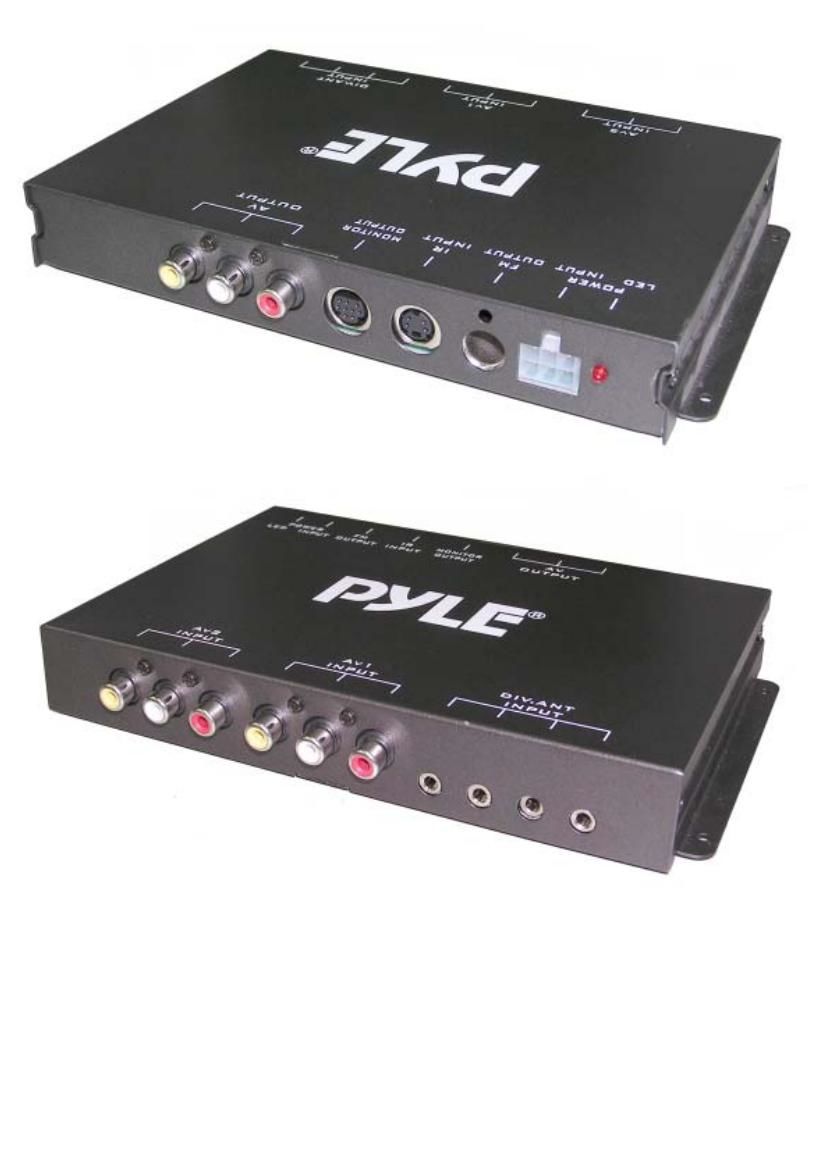

12 Tuner Installation and electrical connections 1. Find a suitable location for the tuner unit and mount it securely in place. Be sure to place it in an area away from moisture and dirt, and where incoming cables will not be walked on or pulled accidentally. 2. Make all required audio, video and power connections to the appropriate connectors on the tuner as indicated in the drawing below to suit your system installation. Install the infrared remote eye in a location you know will be Installation in line-of-sight with the remote control use location Please note that the drawing below describes connections for all system possibilities and your particular system may vary from this. For example, if your car radio lacks AUX line level input jacks, you will be unable use the A/V VIDEO OUT jacks to provide audio. In this case, you can take advantage of the built-in FM transmitter in the tuner box which will broadcast the audio to your car radio instead. You may chose to use just the car radio antenna, just the diversity antenna system, or both. Similarly, you system may include one A/V input source or two. You may or may not have an additional viewing monitor. IR Interface cable Installation
