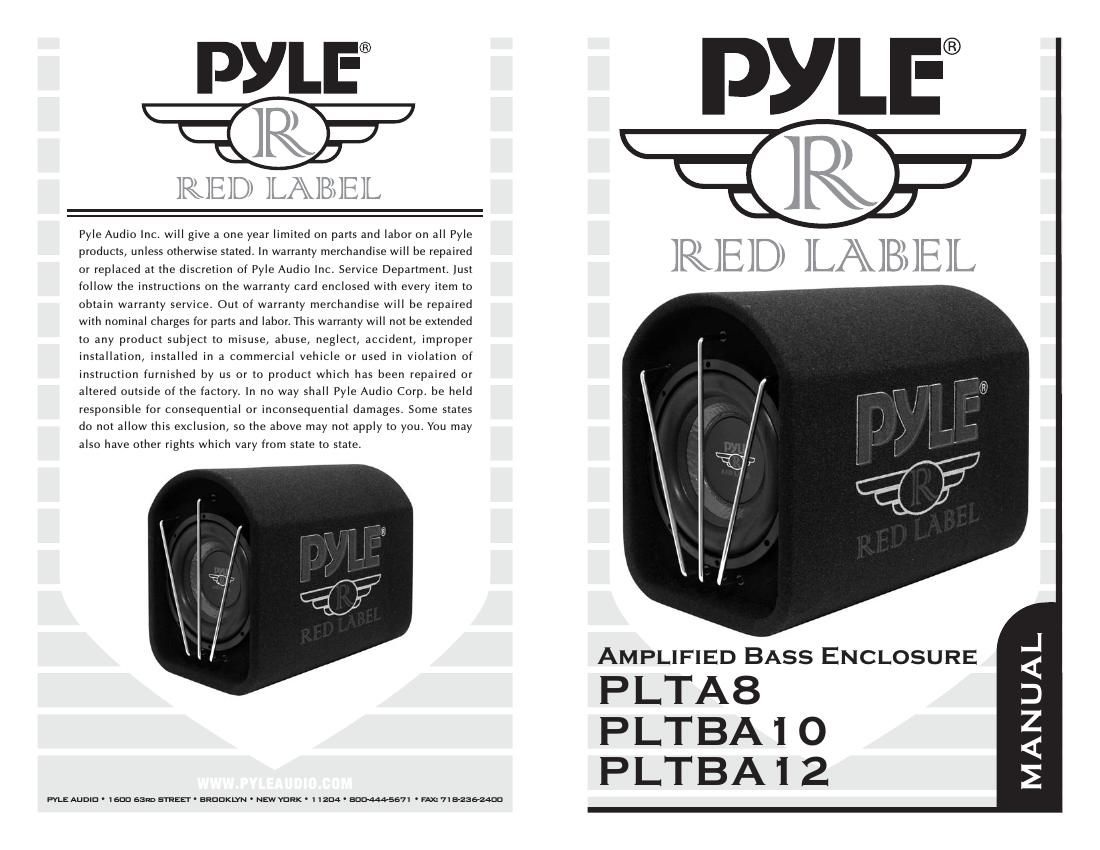

Pyle plta 8 owners manual
This is the 2 pages manual for pyle plta 8 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plta 8 owners manual (Ocr-read)
Page 1
CONNECTION DIAGRAM CONNECTION DIAGRAM SYSTEM FEATURES SYSTEM FEATURES SPECIFICATIONS SPECIFICATIONS Sound Quality/ Input Phase Switch (0˚ - 180˚)7.5 Amp Fuse12V(+) Battery Remote Start/ Power Antenna Chassis (-) Ground Speaker/ High Level InputsRCA/ Low Level InputsInput Level Control Crossover Frequency Simple Connection Plate and Interface Allows for an Easy, Quick and Straight Forward Installation 8"/10"/12" Pyle Red Label Long Throw Woofer Custom Designed Carpeted Enclosures w/Bass Reflex Ports Optimized for Best Bass Response Compact and Rugged Design Built-In Amplified System Adjustable Crossover Frequency Control Input Level Control 3-Way Input Phase Switch (0 ˚/90˚/180˚ ) Automatic Turn On Feature RCA/Low Level Inputs Speaker/High Level Inputs Custom Triple Bar Grill Design Woofer Size Voice Coil Magnet Freq. Resp. Dimensions Impedance System Watts PLTA8 PLTBA10 PLTBA12 8" 1" High Temp 20 oz 50Hz-200Hz 9.9" x19" x13.8 Dual 2 Ohms 300 Watts 10" 1.5" High Temp 30 oz 50Hz-200Hz 12.2" x18.9" x15.8 Dual 2 Ohms 500 Watts12" 2" High Temp 40 oz 50Hz-200Hz 13.8" x18.9" x16.3 Dual 2 Ohms 600 Watts
