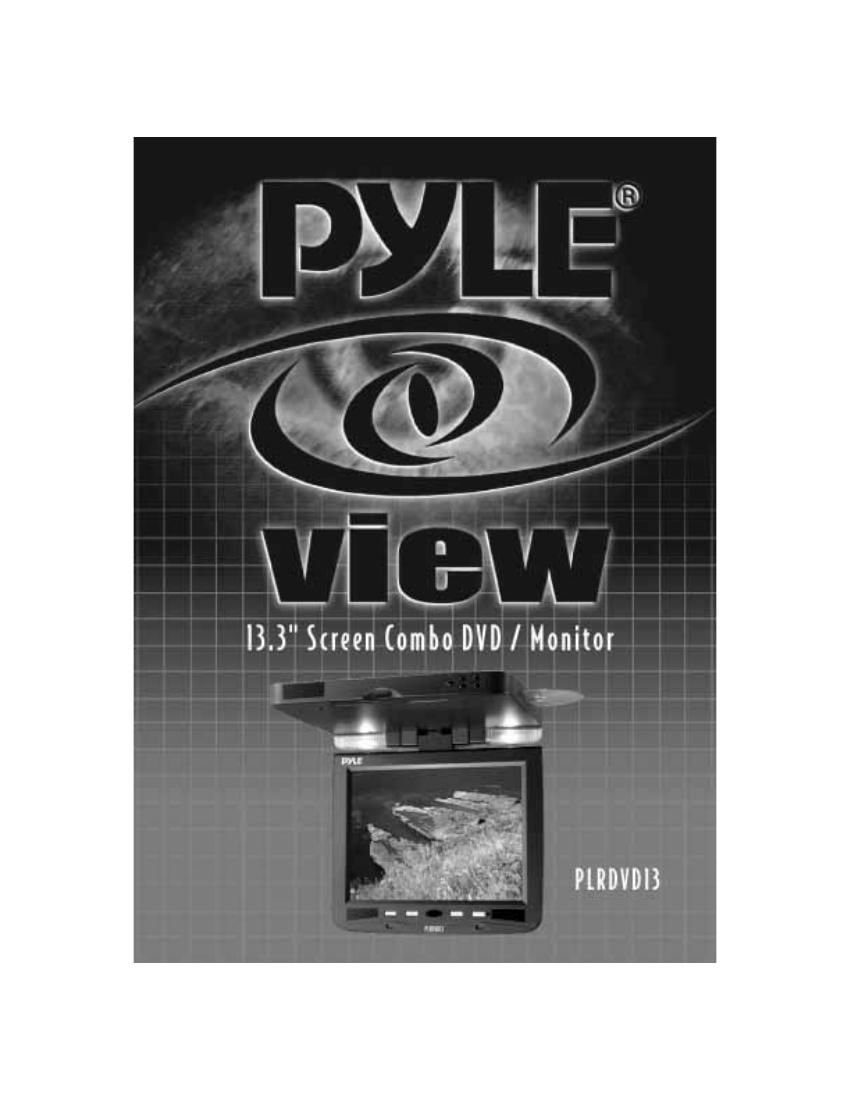

Pyle plrdvd 13 owners manual
This is the 15 pages manual for pyle plrdvd 13 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plrdvd 13 owners manual (Ocr-read)
Page 1
TABLE OF CONTENT 1. INSTALLATION GUIDE ........................................................................................................... 3 2. FUNCTION KEYS ...................................................................................................................... 4 2.1 FRONT PANEL OF FUNCTIONS ............................................................................................................ 4 3. MONITOR TROUBLE SHOOTING ....................................................................................... 4 3.1 NO POWER ............................................................................................................................................... 4 3.2 REMOTE CONTROL NOT FUNCTIONING ............................................................................................ 4 3.3 NO DISPLAY OR PICTURE NOT CLEAR ............................................................................................... 4 4. SPECIFICATIONS ...................................................................................................................... 5 5. ACCESSORIES ............................................................................................................................ 5 6. TYPES OF DISCS PLAYABLE ON THIS PLAYER................................................................ 6 6-1 FRONT PANEL FUNCTION ................................................................................................................... 6 7. PART NAMES AND FUNCTIONS ............................................................................................ 7 7.1 REMOTE CONTROL UNIT - MAIN BUTTONS ....................................................................................... 7 7.2 REMOTE CONTROL UNIT - OTHER BUTTONS ................................................................................... 8 8. PLAYBACK FUNCTIONS ....................................................................................................... 9 8.1 LOADING DISC ..................................................................................................................................... 9 8.2 PLAYING DISC ...................................................................................................................................... 9 8.3 DVD ........................................................................................................................................................ 9 8.4 TO DISPLAY THE MENU SCREEN ...................................................................................................... 9 8.5 STOPPING THE DISC ........................................................................................................................... 9 8.6 PAUSING THE DISC ............................................................................................................................. 10 8.7 SCANNING FORWARD AND BACKWARD ......................................................................................... 10 8.8 RETURNING TO THE PREVIOUS CHAPTER OR TRACK OF DVDS, VIDEO CDS AND CDS ....... 10 8.9 MOVING AHEAD TO THE NEXT CHAPTER OR TRACK OF DVDS, VIDEO CDS AND CDS ...... 10 8.10 REMOVING DISCS ............................................................................................................................. 10 9. VARIOUS LANGUAGE AND SUBTITLE SETTINGS ........................................................ 11 DISC SETTING ............................................................................................................................................. 11 10. SETTING THE PARENTAL LOCK LEVEL ....................................................................... 11 11. OTHER SETTING ................................................................................................................... 12 11.1 VIDEO SETTING .................................................................................................................................. 12 11.2 DOLBY DIGITAL SETTING .................................................................................................................. 12 11.3 DISPLAY SETTING ............................................................................................................................... 12 12. ADVANCED FUNCTIONS ..................................................................................................... 13 12.1 SEARCH FOR A SPECIFIC SCENE ................................................................................................... 13 12.2 VIEWING IN SLOW MOTION DVDS AND VIDEO CDS ................................................................... 13 12.3 REPEAT PLAY DVDS, VIDEO CDS AND CDS .................................................................................. 13 12.4 SELECTING THE PICTURES ANGLE (MULTI-ANGLE) ................................................................ 13 13. CAUTIONS ON USE ............................................................................................................... 14 13.1 HANDING ............................................................................................................................................ 14 13.2 STORING DISCS .................................................................................................................................. 14 13.3 CLEANING DISCS ............................................................................................................................... 14 13.4 IRREGULARLY SHAPED DISCS ........................................................................................................ 14 14. TROUBLE SHOOTING .......................................................................................................... 15
Page 2
3 1. INST ALLA TION GUIDE 1. On a towel or soft cloth, gently place the monitor unit "facedown" on a stable work surface. 2. Locate the pigtail with the DIN connector. 3. Connect the DIN connector to the interface cable provided. 4. Connect the RED wire to the positive (+) battery terminal. 5. Connect the Black wire to a chassis electrical ground point. 6. Connect the cable with YELLOW RCA jack to Video Input sources for your Video Program material. 7. Connect the cable with RED and WHITE RCA jacks to Audio sources for your Audio Program material. 8. Dome Light Circuit: (NOT SHOWN IN PICTURE) Connect the Black to Ground. Connect one white lead to the dome light circuit that is positive (+) when the door is open. Connect the red lead to a constant positive (+).
