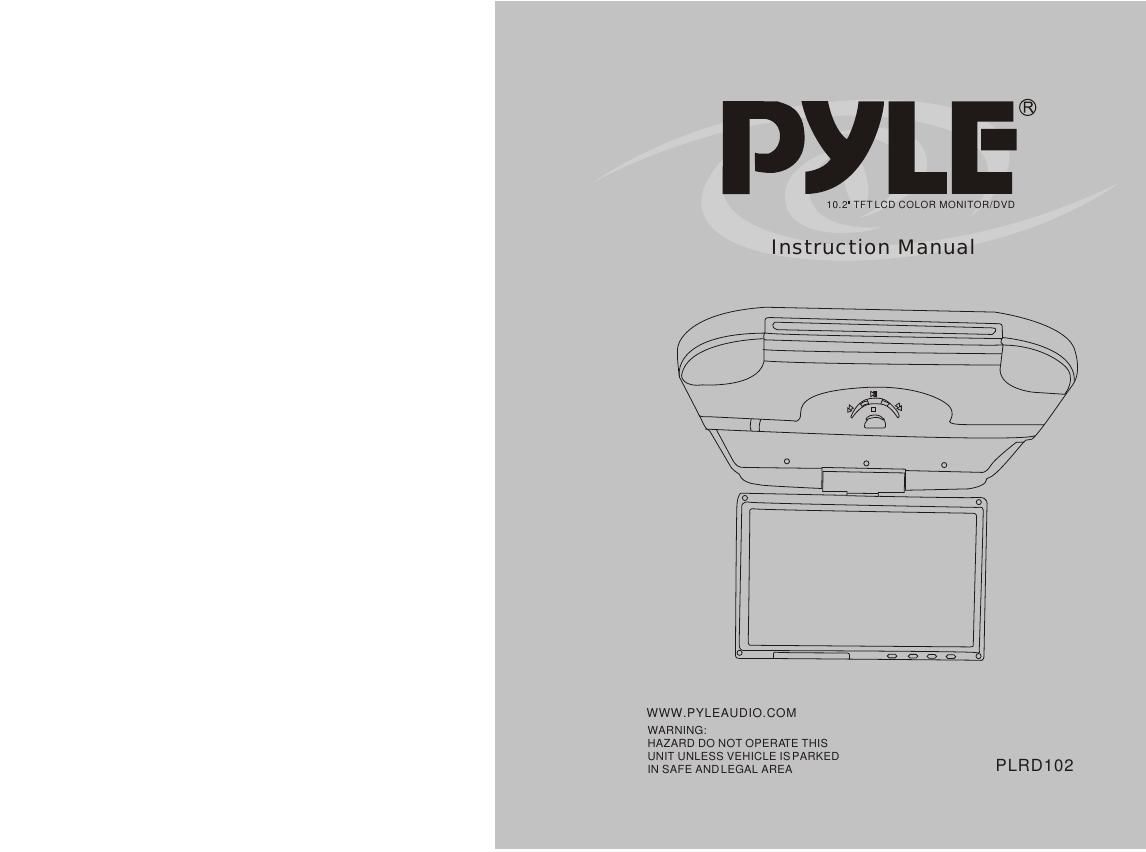

Page 1
11. SPECIFICATIONS TFT-LCD MONITOR Screen size: 10.2 inch 16:9 TFT Resolution: 800 (H)x600(V) Power source : DC12V20% Electric current: 1.35A20% System: PAL/NTSC Operation temperature: -10-55 Storage temperature: -10-80 Disc zone: multizone Disc format compatible: MP3, SVCD, VCD, DVD, CD, CD-R, CD-RW, DVD-RW, DVD-R 2NOTICE A.Please do not try to repair. The display screen is composed of lots of precise electronic components. They will be broken or cracked if disassembled or refitted. If the failure happened, please turn off the monitor and notify distributors or us. B. Dont let the display screen incur the pollution like dampness, dust, steam, lampblack, etc. C. Please dont use thinner or other chemical cleaner to wipe the surface of the display screen. The dirt should be wiped off by using soft cloth.D. Keep the monitor away from extreme hot and cold locations. E. Avoid dropping and strong impact. 3.REMINDING: DO NOT HIT THE SCREEN, PLEASE CONNECT THE ANODE AND CATHODE OF POWER CORRECTLY. DANGEROUS HIGH VOLTAGE ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. No inform available if there is any change of specification14ATTACHMENT 1.MAINTAIN OF LCD A: Do not press or touch LCD, which may cause distortion or fault. B: Use soft cloth with a little water clean LCD. C: Do not use oil, thinner, cleanser or anlistatig. D: In cold or hot condition, picture may not clear, any new LCD may has red or blue light point, 99.99% on the LCD should be without any point but 0.01% point appeared is allowed.Spare parts listItem no description Qty 1 power, A/V cable 1 2 remote control 1 3 manual 1 4 screws 1 bag 5 5M RCA cable 1
Page 2
2‚ƒ„…†‡ˆ‰Š1)Power ( control display) 3) MENU 2) - 4) + 5) IR TRANSMIT 6) LCD MONITOR 7) FIX PEDESTAL 8) LAMP BUTTON 9) LEFT LAMP 10) RIGHT LAMP 11) EJECT 12) PLAY/PAUSE 13) BACKWARD 14) FAST FORWARD 15) STOP 16) DVD INDICATOR 17) OPEN13Attachment 1.maintain of DVD MONITOR please use normally rotund disc. If you put in an abnormity, not rotund disc, they will be locked by the player or can not play well. Make sure the disc before play has no split, scratch or warp. Do not touch the record surface ( not printed side) Keep disc in the disc pack after playing; Do not expose disc under direct sunlight or high temperature; Do not stick label, write or use chemical on the surface of disc; If you use central heating in cold weather, you may find dews on the DVD player, which may make the unit can not work well. Then please cut off the unit for 1 hour to make it dry and wipe the disc by dry cloth. Shock may cause the play stop. 2.MAINTAIN OF DISC A: some functions may not available for certain kinds of DISCS. B: some discs may not compatible with this unit. C: this unit can only play DVD-R/DVD-RW disc in video mode, and some files download from computer can not be read. D: broken, dirty or wet disc can not be read. E: some disc recorded by personal may can not be read for the format of recording.F: when play MP3 format , adopt special method to playing, because of the special MP3 format of document storage. G: should use to choose the file when play MP3 disc, closed by ENTER. 3.MAINTAIN OF REMOTE CONTROL A: Do not expose it in direct sunlight or put in on the instrument board B: Especially in summer, the high temperature there will make it distorted C: the unit may can not receive the signal from the remote control under direct sunlight, move it near to the unit
