Page 1

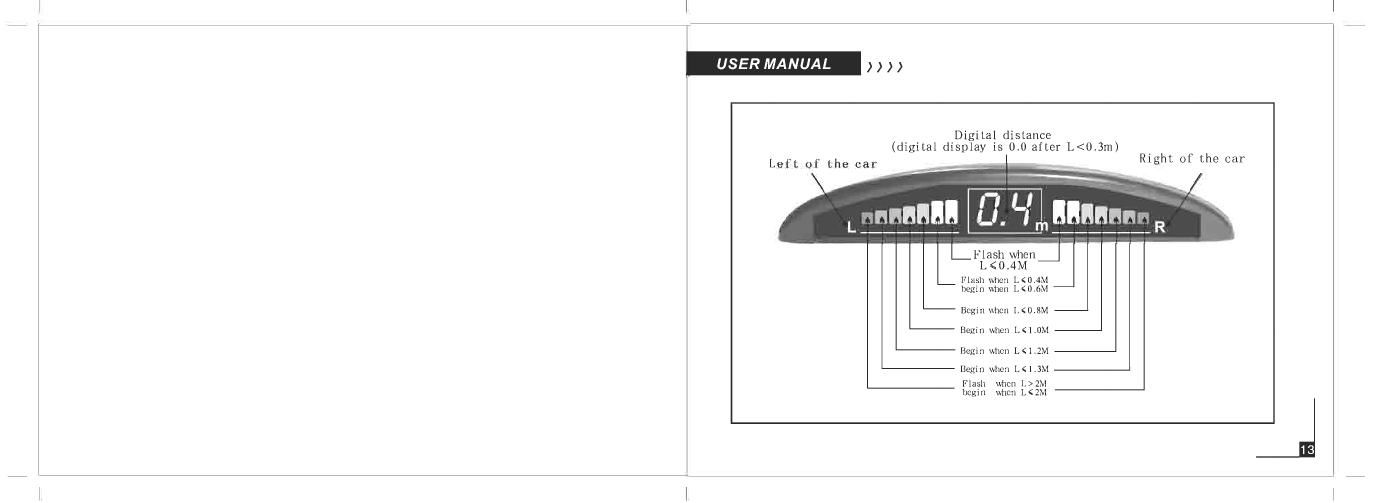

USER MANUAL ))))
Digital distance
(digital display is 0,0 alter L<0,3m)
Left of the car Right Of the car
Flash when
L (0.4M
Flash when L <0.4M
begin when L <0,()M
Begin hen Il
Begin when L
Flash when l.>2M
ncgin when L
Page 2
USER MANUAL ))))
Stage Distance Alarm sound Number
1 2M above No sound No Number
2 2.0M No sound 2.0M
3 1.5M Beep...Beep... 1.5M
4 1M Beep..Beep.. 1M
5 0.6M Beep-Beep" 0.6M
6 0.4M Beep 0.4M
7 0.3M Beep 0.3M
Wu»
O Ultrasonic sensor
0 LCD/LED display
9 Buzzer
9 Main control box
a Main features
System consists of ultrasonic sensor, LED display and control
box. This system detectthe distance between the car and back
obstruction with the ultrasonic sensor installed at the rear
bumper of the car. The distance will be display at LED display.
JSpecification
9 Rated voitage:12V
0 Operation voltage range: 10-15V(DC)
9 Rated current2200mA~600mA
9 Working temperature:-40~+80°C
9 Detection distance:0.1~2M
0 Display distance: O.3M~2.0 M
O Alarming distance: 0.1M~i.5 M
O Alarming volume:>75dB
