USER MANUAL ))))
0 Installation

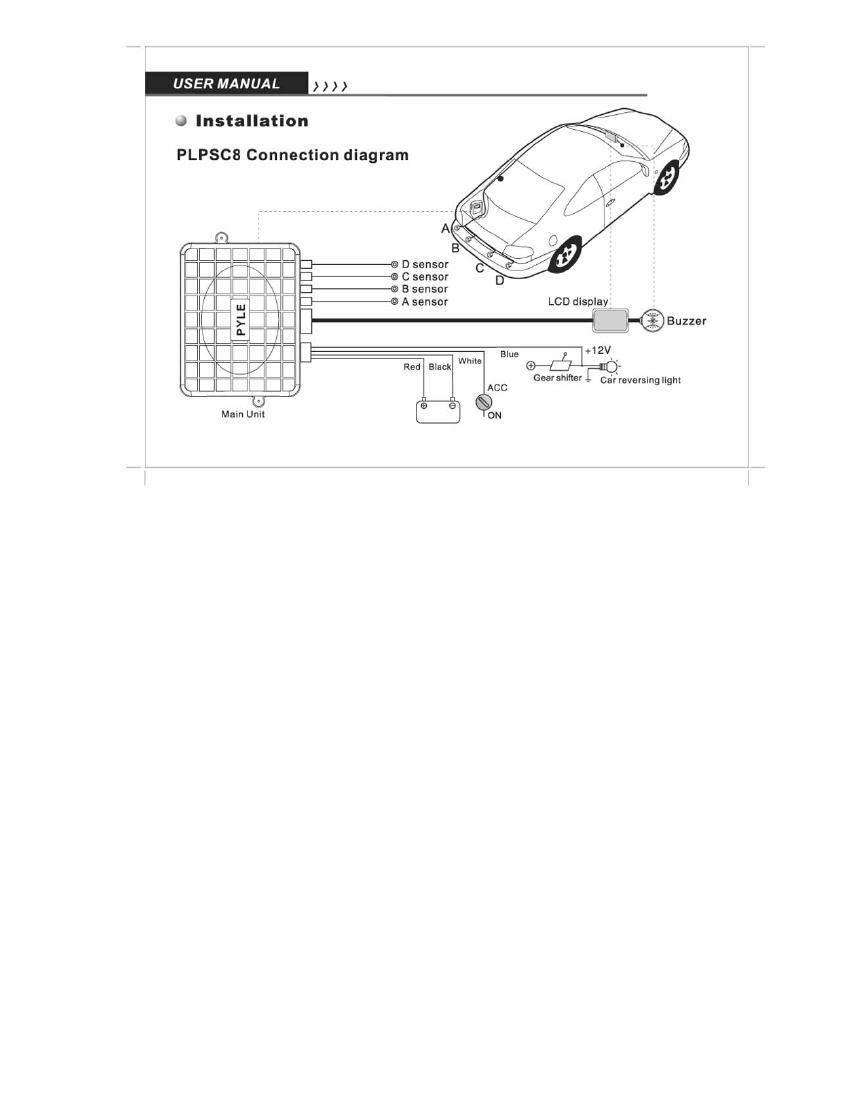

PLPSC8 Connection diagram
: D sensor
0 C sensor
- B sensor
~ A sensor LCD duplex;
+12V
Gearshmer: csyrsveraung "gm
Main Unil
Page 2
W))))
System consists of ultrasonic sensor, LCDILED display and
control box. This system detect the distance between the car
and back obstruction with the ultrasonic sensor installed at the
rear bumper of the car. The distance will be display at
LC DILED display.
a Main features J Specifications
6 Ultrasonic sensor 0 Rated voltagez12V
. LCD [LED display 0 Operation voltage range:10-15V(DC)
6 Rated currentz200mA~600rnA
0 Buzzer
0 Working temperatue:-40~+80 C
9 Main 00""0' box 0 Detection dlstance:0.1~2M
0 Display diatom: 0.3M~ 2.0 M
O Mammy dietanoe:0.1M-1.5 M
O Alarming volume237568
