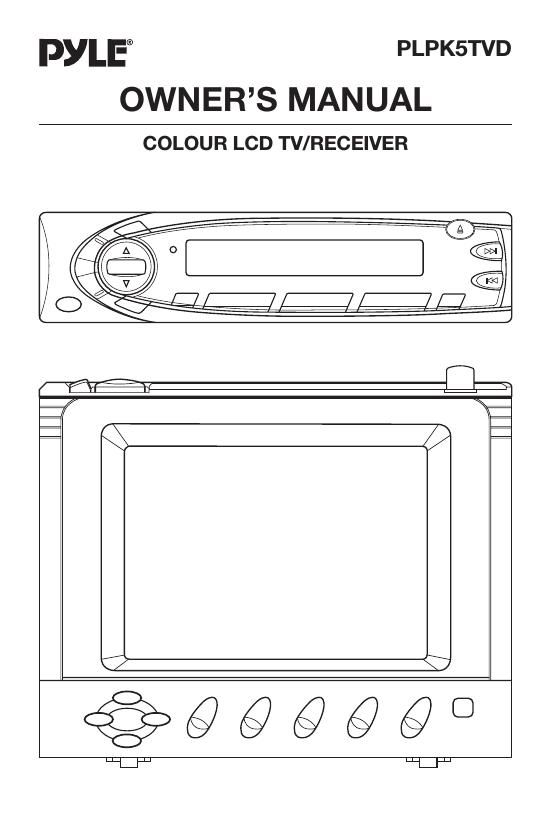

Pyle plpk 5 tvd 1 owners manual
This is the 20 pages manual for pyle plpk 5 tvd 1 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plpk 5 tvd 1 owners manual (Ocr-read)
Page 1
2 INSTALLATION Notes: - Choose the mounting location where the unit will not interfere with the normal driving function of the driver. - Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. - Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. - Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle. - Install the unit where it does not get in the drivers way and cannot injure the passenger if there is a sudden stop, like an emergency stop. - If installation angle exceeds 30˚ from horizontal, the unit might not give its optimum performance. - Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration. INSTALLATION HARDWARE 30˚ Bracket (A) (2 pcs) Bracket (B) (2 pcs)Double sided tape (2 pcs)Lever (2 pcs) Hexagonal Bolt (M6 x 12) (4 pcs) Tapping Screw (M5 x 25) (1 pcs)Nut (M5) (1 pcs)Plain Washer (M5) (1 pcs)Spring Washer (M5) (5 pcs)Spring Washer (M6) (4 pcs) Tapping Screw (M5 x 12) (4 pcs)Mounting Bolt (M5 x 5) (8 pcs)Mounting Bolt (M4 x 5) (4 pcs)Strap (1 pcs)
Page 2
3 MOUNTING THE TUNER UNIT 1. Bracket (A) 5. Tapping Screw with Washer (M5 x 12) 2. Mounting Bolt (M5 x 5) 6. Spring Washer (M6) 3. Bracket (B) 7. Spring Washer (M5) 4. Hexagonal Bolt with Washer (M6 x 12) 8. Double Sided Tape INSTALL THE DISPLAY UNIT Before install the display unit, please remove its tail screw and cable parts. This unit can be properly installed either from front (convertional DIN Front-mount) or rear (DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods. DIN FRONT-MOUNT Installing the unit 1. Dashboard 2. Holder After inserting the holder into the dashboard, select the appropriate tab according to the thickness of the dashboard material and bend them inwards to secure the holder in place. 3. Display Unit Step 1 Step 2 1 2 1 2 6 4 5 7 3 8 6 4 6 5 7 8 5 7 3 (Fig. 1) 1 3 2 182 53
