Pyle plmr 54 owners manual

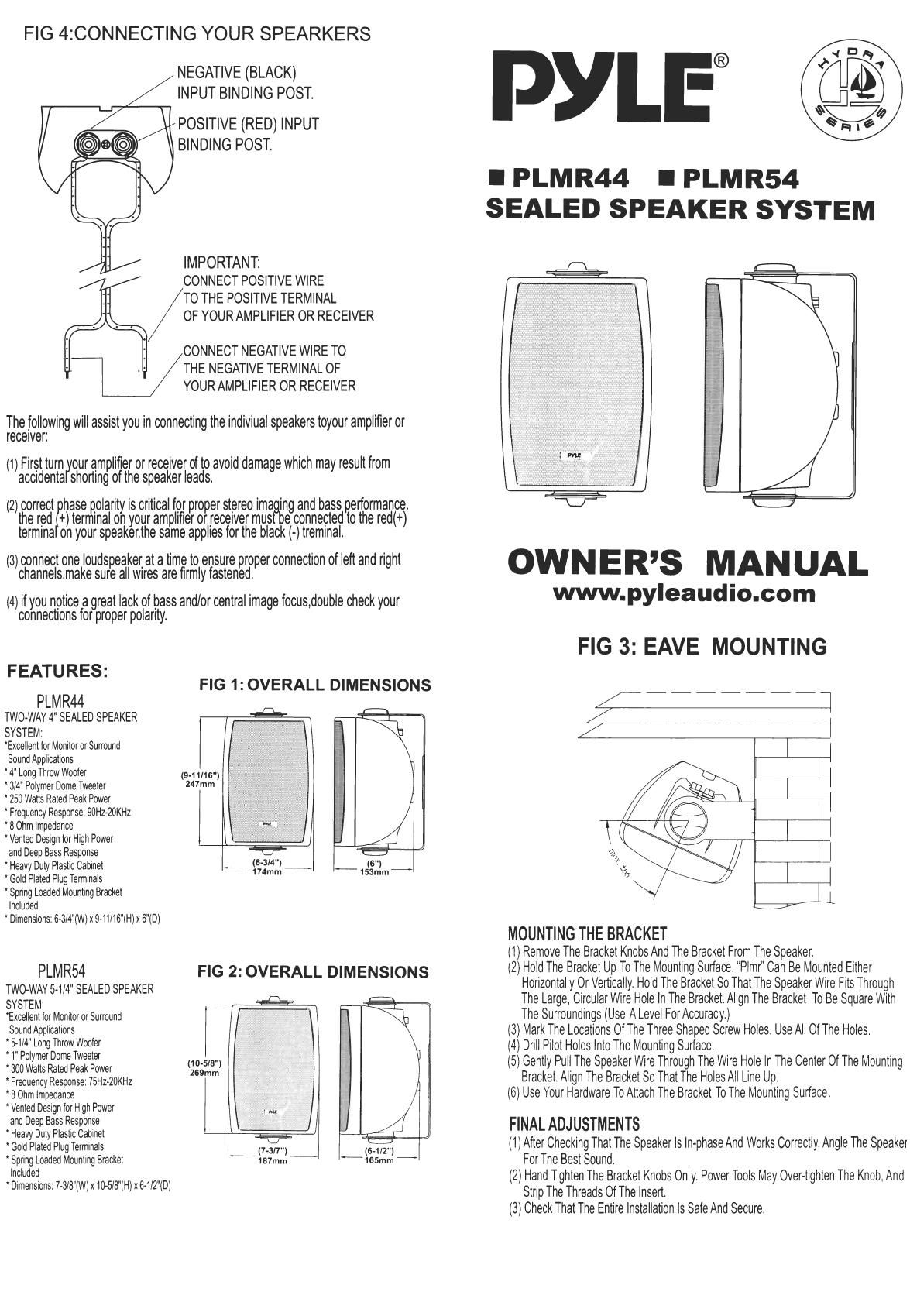

Page 1

FIG 42CONNECT|NG YOUR SPEARKERS

NEGATIVE (BLACK)
INPUT BINDING POST.

POSITIVE (RED) INPUT
BINDING POST.

IMPORTANT:

CONNECT POSITIVE WIRE

TO THE POSITIVE TERMINAL

OF YOUR AMPLIFIER OR RECEIVER

: CONNECT NEGATIVE WIRE TO
'- . THE NEGATIVE TERMINAL OF
YOUR AMPLIFIER OR RECEIVER

The following will assist you in connecting the indiviual speakers toyour amplifier or
receiver:

(1) First turn your amplifier or receiver of to avoid damage which may result from
accrdental shortan of the speaker leads.

(2) correct hase polarity is critical for proper stereo imaging and bass performance.
the red 8*) terminal on your amplifier or receiver mus e connected to the red(+)
terminal on your speakerthe same applies for the black (-) tremlnal.

(3) connect one loudspeaker at a time to ensure proper connection of left and right
channelsmake sure all wrres are flrrnly fastened.

(4) if you notice a great lack of bass and/or central image focus,double check your
connections for proper polarity.

FEATURES:
FIG 1:0VERALL DIMENSIONS
PLMR44

TWO-WAY 4" SEALED SPEAKER A"

SYSTEM: .
Excellent for Monitor or Surround
Sound Applications .

4" Long Throw Woofer (9.1 1,16")

3/4" Polymer Dome Tweeter 247mm

' 250 Watts Rated Peak Power

Frequency Response: 90Hz-20KHz

' 8 Ohm Impedance

' Vented Design for High Power

and Deep Bass Response (6 3/4
" Heavy Duty Plastic Cabinet ' " , (6")
' Gold Plated Plug Terminals 7""" 3"
' Spring Loaded Mounting Bracket

Included

"' Dimensions: 6-3/4"(W) X 9-11I16"(H) X 6"(DI

PLMR54 FIG 2: OVERALL DIMENSIONS
TWO-WAY 5-1/4" SEALED SPEAKER
SYSTEM:

Excellent for Monitor or Surround
Sound Applications

5-1/4" Long Throw Wooler

' 1' Polymer Dome Tweeter

' 300 Watts Rated Peak Power

' Frequency Response: 75Hz-20KH2

' 8 Ohm impedance

' Vented Design for High Power

and Deep Bass Response

' Heavy Duty Plastic Cabinet .

* Gold Plated Plug Termlnals (632")

' Spring Loaded Mounting Bracket '- 165mm -
Included

Dimensions: 7-3/8"(W) x 10-5/8"(H) x 6-1/2"(DI

PYLE®

l PLMR44 I PLMR54
SEALED SPEAKER SYSTEM

OWNERS MANUAL

www.pyleaudio.com

FIG 3. EAVE MOUNTING

MOUNTING THE BRACKET

(1) Remove The Bracket Knobs And The Bracket From The Speaker.

(2) Hold The Bracket Up To The Mounting Surface. Pimr Can Be Mounted Either
Horizontally 0r Vertically. Hold The Bracket So That The Speaker Wire Fits Through
The Large, Circular Wire Hole In The Bracket. Align The Bracket To Be Square With
The Surroundings (Use A Level For Accuracy.)

(3) Mark The Locations Of The Three Shaped Screw Holes. Use All Of The Holes.

(4) Drill Pilot Holes Into The Mounting Surface.

(5) Gently Pull The Speaker Wire Through The Wire Hole In The Center Of The Mounting
Bracket. Align The Bracket So That The Holes All Line Up.

(6) Use Your Hardware To Attach The Bracket To The Mounting Surface.

FINAL ADJUSTMENTS

(1)After Checking That The Speaker ls ln-phase And Works Correctly, Angle The Speaker
For The Best Sound.

(2) Hand Tighten The Bracket Knobs Only. Power Tools May Over-tighten The Knob, And
Strip The Threads Of The Insert.

(3) Check That The Entire Installation is Safe And Secure.
