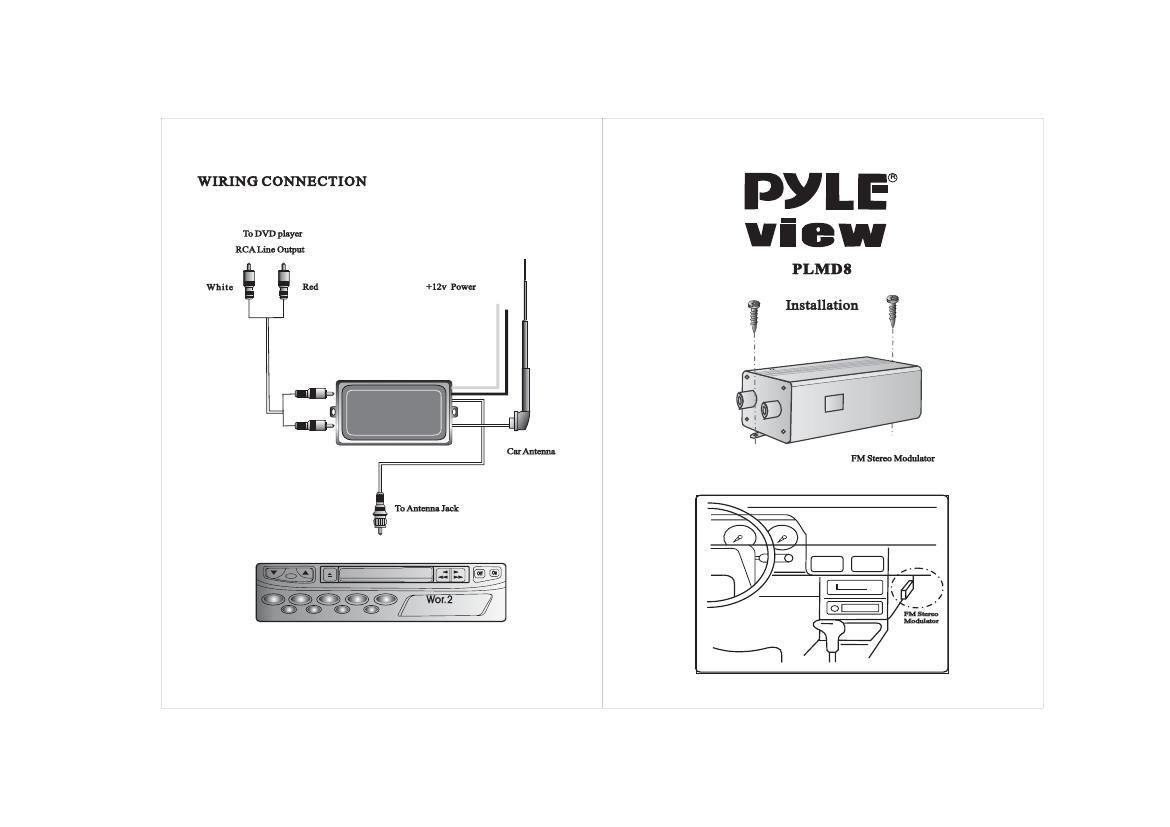

INSTRUCTION MANUAL BEFORE INSTALLING THE MODULATOR INSTALLATION FM RADIO FREQUENCY PRESET PLL FM Stereo Modulator 1. Do not install the unit in the following locations. Locations exposed to direct sunlight.Locations exposed to direct sunlight. Where hot air is discharged from the car heater.Where hot air is discharged from the car heater. In areas subject to extreme temperatures.In areas subject to extreme temperatures. 2. Be careful not damage the car wiring. 3. Be sure to use the supplied screws. The FM Stereo Modulator must be mounted within 24inches of your radio so that its power cable can reach the radio power antenna lead.It can be fixed to any flat surface behind the instrument panel with two 3mm taping screws. The FM Stereo Modulator must be mounted within 24inches of your radio so that its power cable can reach the radio power antenna lead.It can be fixed to any flat surface behind the instrument panel with two 3mm taping screws. Your final choice of location should allow for the insertion or removal of the Cable from the FM Stereo Modulator Unit. Also,the FM Station Frequency Selector Switch is located on the side and you may wish to change it after your initial checkout or somtime in the future.Your final choice of location should allow for the insertion or removal of the Cable from the FM Stereo Modulator Unit. Also,the FM Station Frequency Selector Switch is located on the side and you may wish to change it after your initial checkout or somtime in the future. The FM Stereo Modulator can operate on from 87.7MHz to 88.9MHz. (7channel-200KHz Step) The Frequency Selector Slide Switch is on one channel of the Modulator and was set 87.7MHz at the factory.Assuming it is still there,turn on the car stereo and select FM band operation.Tune the radio to 87.7MHz ( depending on frequency to which the installer has set the unit),or push the pre-set memory button. INTERFERENCE ON 87.7MHz: If interference experienced is on 87.7MHz,change the position of the frequency select switch on the side of the FM Stereo Modulator and tune the radio 87.7-88.9MHz.If interference experienced is on 87.7MHz,change the position of the frequency select switch on the side of the FM Stereo Modulator and tune the radio 87.7-88.9MHz. FREQUENCY SELECTOR SWITCH SPECIFICATIONS: Frequency: 87.7MHz to 88.9MHz (7channel-200KHz Step) RF Output Level: 60dB Max S/N Ratio: 65dB Stereo Separation: 40dB FM Modulation Depth: 75KHz at L+R+Pilot Operating Voltage: 10 ~16V DC Dimensions: 88W 30H 50Dmm Weight: 180gFrequency: 87.7MHz to 88.9MHz (7channel-200KHz Step) RF Output Level: 60dB Max S/N Ratio: 65dB Stereo Separation: 40dB FM Modulation Depth: 75KHz at L+R+Pilot Operating Voltage: 10 ~16V DC Dimensions: 88W 30H 50Dmm Weight: 180g Specifications and design are subject to change without noticeSpecifications and design are subject to change without notice Frequency Selector Switch Frequency(MHz) 87.7MHz 87.9MHz 88.1MHz 88.3MHz 88.5MHz 88.7MHz 88.9MHzFrequency(MHz) 87.7MHz 87.9MHz 88.1MHz 88.3MHz 88.5MHz 88.7MHz 88.9MHz 1234
