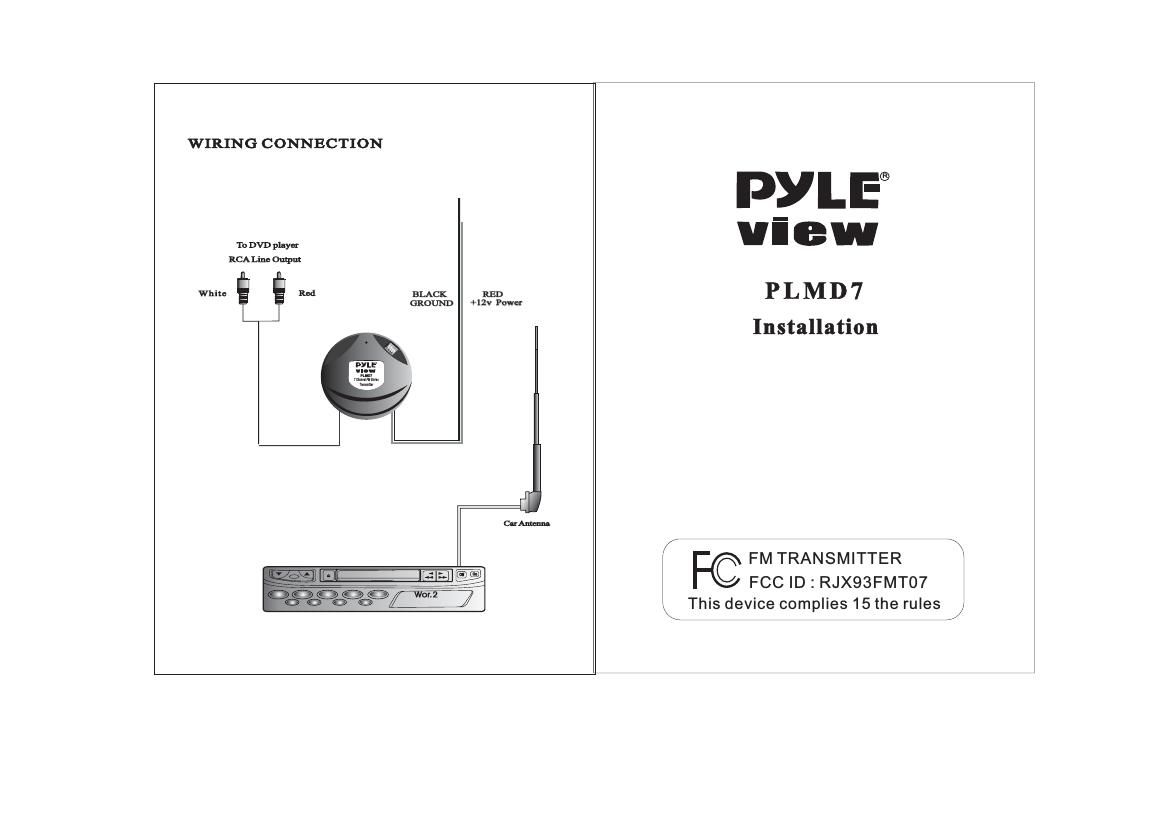

INSTRUCTION MANUAL PLL FM Stereo Transmitter BEFORE INSTALLING THE TRANSMITTER INSTALLATION FM RADIO FREQUENCY PRESET Do not install the unit in the following locations. Locations exposed to direct sunlight. Where hot air is discharged from the car heater. In areas subject to extreme temperatures.Do not install the unit in the following locations. Locations exposed to direct sunlight. Where hot air is discharged from the car heater. In areas subject to extreme temperatures. The FM Stereo Transmitter must be mounted within 24inches of your radio so that its power cable can reach the radio power antenna lead. The FM Station Frequency Selector Switch is located in the face and you may wish to change it after your initial checkout or somtime in the future.The FM Stereo Transmitter must be mounted within 24inches of your radio so that its power cable can reach the radio power antenna lead. The FM Station Frequency Selector Switch is located in the face and you may wish to change it after your initial checkout or somtime in the future. The FM Stereo Transmitter can operate on from 87.7MHz to 88.9MHz. (7channel-200KHz Step) The Frequency Selector Slide Switch is on one channel of the Transmitter and was set 87.7MHz at the factory. Assuming it is still there, turn on the car stereo and select FM band operation.Tune the radio to 87.7MHz ( depending on frequency to which the installer has set the unit),or push the pre-set memory button.The FM Stereo Transmitter can operate on from 87.7MHz to 88.9MHz. (7channel-200KHz Step) The Frequency Selector Slide Switch is on one channel of the Transmitter and was set 87.7MHz at the factory. Assuming it is still there, turn on the car stereo and select FM band operation.Tune the radio to 87.7MHz ( depending on frequency to which the installer has set the unit),or push the pre-set memory button. INTERFERENCE ON 87.7MHz: If interference experienced is on 87.7MHz,change the position of the frequency select switch in the face of the FM Stereo transmitter and tune the radio 87.7-88.9MHz.If interference experienced is on 87.7MHz,change the position of the frequency select switch in the face of the FM Stereo transmitter and tune the radio 87.7-88.9MHz. SPECIFICATIONS: Frequency: 87.7MHz to 88.9MHz(7channel-200KHz Step) RF Output Level: 60dB Max S/N Ratio: 65dB Stereo Separation: 40dB FM Modulation Depth: 75KHz at L+R+Pilot Operating Voltage: 10 V~16VDC Dimensions: 44R 23Hmm Weight: 123gFrequency: 87.7MHz to 88.9MHz(7channel-200KHz Step) RF Output Level: 60dB Max S/N Ratio: 65dB Stereo Separation: 40dB FM Modulation Depth: 75KHz at L+R+Pilot Operating Voltage: 10 V~16VDC Dimensions: 44R 23Hmm Weight: 123g Specifications and design are subject to change without noticeSpecifications and design are subject to change without notice FREQUENCY SELECTOR SWITCH Frequency(MHz) 87.7MHz 87.9MHz 88.1MHz 88.3MHz 88.5MHz 88.7MHz 88.9MHzFrequency(MHz) 87.7MHz 87.9MHz 88.1MHz 88.3MHz 88.5MHz 88.7MHz 88.9MHz 1234
