Pyle plmd 1 owners manual

Page 1

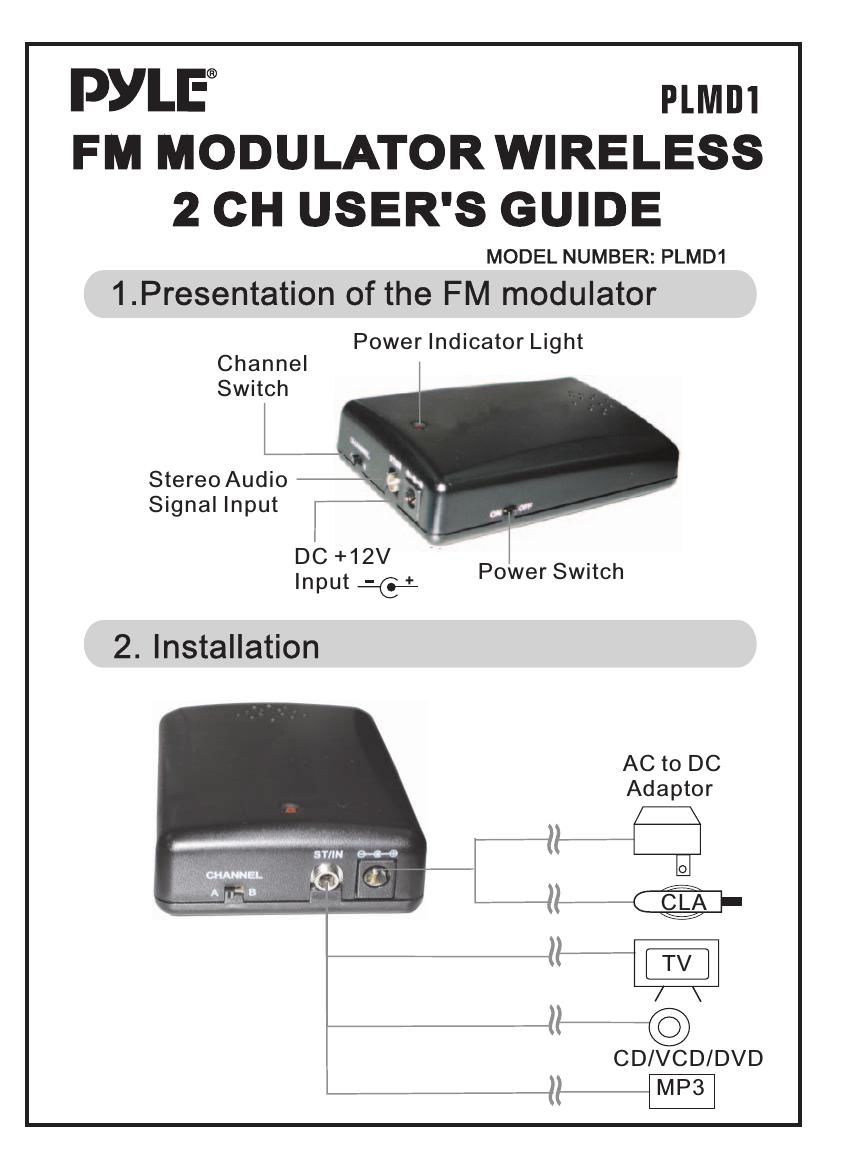

Connect the power supply plug to the FM modulator DC+12V input, see the picture (NOTE! The center is positive power source). Connect the stereo audio plug to the FM modulator stereo audio signal input, see the picture. Turning the power switch to "ON" position, and the power indicator will show red light. Select the channel switch, CH A is FM88.7MHz, CH B is FM89.1 MHz. (You can either select no interference or select superior receiving band) Turning the FM radio's tuner to the same as channel selected of FM modulator, then can receive audio signal. 3. Using the FM modulator Make sure that the power switch is turned to "ON" position. Make sure that the power supply plug is connected to the FM modulator DC jack. Make sure you are providing the power supply with the correct voltage. No audio signal Make sure that the power indicator is normal working, if not, see the "power indicator light not indicate" Make sure that the stereo audio plug is connected to the FM modulator audio phone jack. Change the stereo audio wire. 4. Troubleshooting Power indicator light not indicate Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the use's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. FCC ID: QTQOOMRU201 FM MODULATOR WIRELESS 2 CH USER'S GUIDEFM MODULATOR WIRELESS 2 CH USER'S GUIDE MODEL NUMBER: PLMD1
