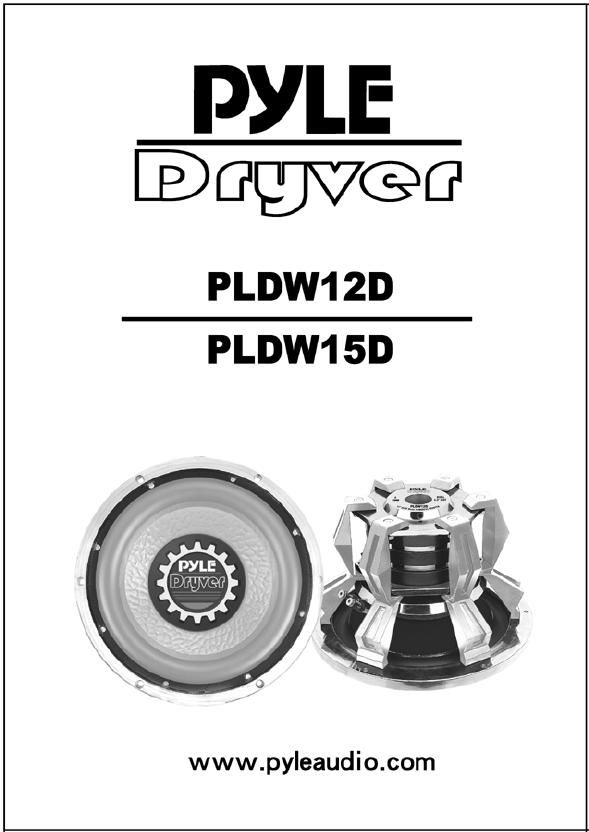

Pyle pldw 12 d owners manual

Page 2

PyLE
BGW®G

About P le D er Series Woofer

Congratulations!

You have just purchased one oi our highest quality and super power subwoolers. Pyle
Dryver Series is the latest series, which using special grey non-pressed paper oone, special
design aluminum basket and triple magnet woofer structure, With the perfect combination of

the materials, the speaker could provide consistent and high performance tor many years.

The General Features for P143 Dmr Series Woofer

- Special Grey Nun-pressed Paper Cone

- Over Sized Grey Surround

- Custom Tooled Die Cast Basket With Dual Terminal
, Bumped & Vented Extended Pole Piece

- Special Triple Magnet Structure

- Dual Kapton Voice Coil

- Wooden Box Packing for Best Protection

Thanks for buying Pyle Speaker.

About This Pamphlet
In this pamphlet, you could find the SPECIFICATIONS and TEMPLATE of the woofer. With

this information, you could achieve the best performance of woofer conveniently.

Below is the meaning of the rating abbreviations

Fs : Free Air Resonance
This value rs the lowest audible lrequency (in Hz) of the woofer
Q : This value describes the degree of control Cdamping') which the speaker
exhibits.

Speaker damping is due to both MECHANICAL characteristics (Qms) and
ELECTRICAL characteristics (Des). Aspeaker's TOTAL dampling value is
referring as Qts.

SPL : This value means the sensitivity of the speaker

VAS : This value describes (in cu it) the maximum amount of air which is displaced

by the speaker cone in a single excursion
