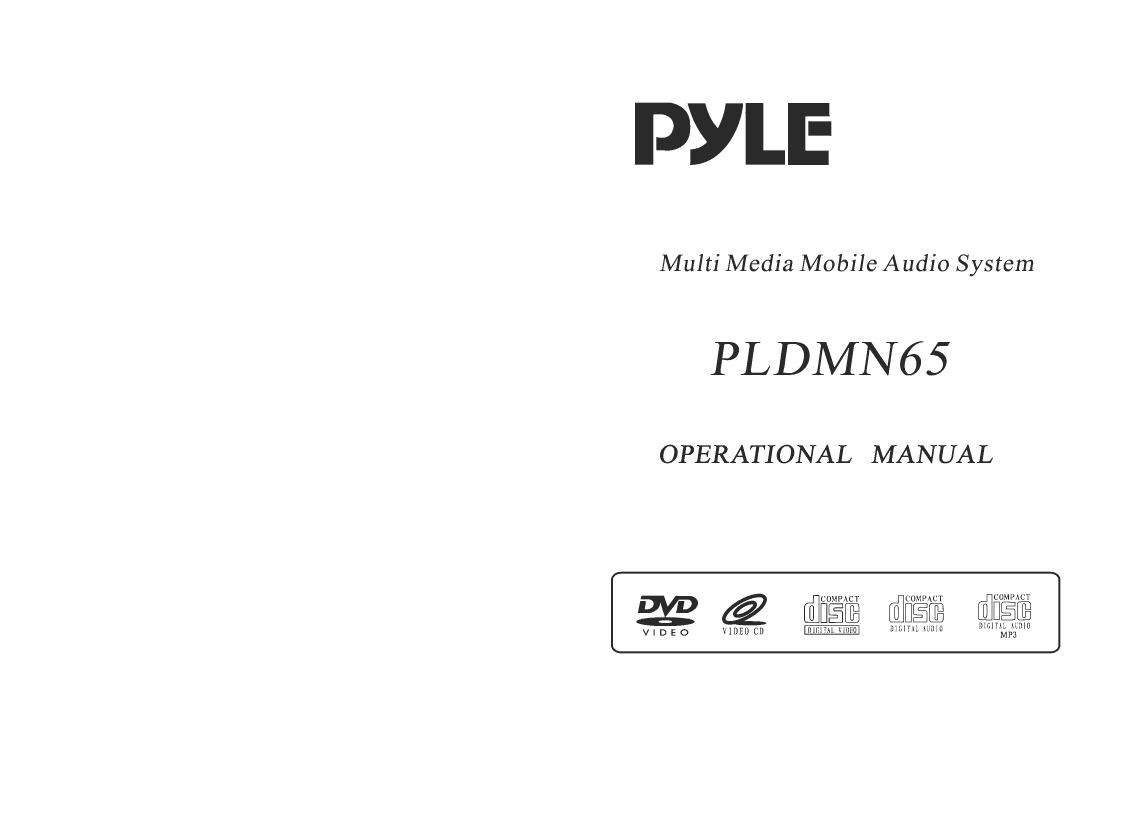

Pyle pldmn 65 owners manual

Page 2

Section

Section

m (Contents

Thank you for buying this product.

Please read through these operation instruments so you will know how to
operate your model properly. After reading please keep this booklet in safe

place for future reference.

(1 Before You Start

Important Safeguards A

About this manual I

Precautions li

Maintenance 8

Location 8: function of the controls 7
Remote control I!

Specifications ll)

0 Installation

Wiring Connections ll
Install the Unit E

B Common Operations

Reset the Unit I!

Turning the Unit Orl/Off ll
Volume Control I!

Changing Widescreen Mode H
Setting the Sound Characteristics E
E0 Setting E

Turning Loudness On it

Eject a Disc ll

Open the Monitor ll

Angle Setting ll

Mute Function ll

Clear ll

Mode Selector Id

Sensor ll

0 Main Menu

Main Menu Setup 5
Audio Adjust 15
Video Adjust 1!
Source Setup 11
Others I

9 DVD

Playing a DVD 2ll

Selecting Tracks Fast Ill
Repeat Playing 2|]

Stop the Playback 20

Pause the Playback Ill
Selecting Tracks EF/FREW 21
System Switch 21

Slow Motion Playback 21
Increase Picture Size 2|

On Screen Display 21

Setting the Playback Time 2!
Changing the Viewing Angle 22
Changing Audio Language 22
Changing the Subtitle Language 22
Selecting Menu 28

Set Up Menu 2:!

Additional Information D

Simple Troubleshooting Guide

The following checklist is helped to solve the problems which you meet when using
the unit. Please double check and make sure if the connection and the procedure of
the operation is propcrly before using the checklist below .

Problem Cause/Solution

"0 Power- 0 Check and make sure whether the fuse is blown,
replace with the proper value if necessary.

Some errors occur in the 0 press RESET button.
LCD or no function when
pressing the button.

Unable to receive stations. - Check and make sure whether the antenna is
inserted or the antenna is properly connccted, if
so, insert the antenna or connect it properly.

Poor effect on receiving a o Antenna may not be the proper length. Make sure
station. the antenna is fully extended or broken; ifbroken,

replace the antenna with a new one.

I The antenna is poorly grounded, check and make
sure the antenna is properly grounded at its
mounting location. .

CDS cannot be loaded. 0 A CD is loaded in the mechanism.
Sound skips. O The CD is dirty or damaged.
"0 images. 0 The Video line from main unit to thc TV is not

connected properly.

Images Skip. l improper setting ofthc color system. Set the color
system to PAL or NTSC according to the
connected television.

Note;
If any of the problem persist alter check list had been made, consult your nearest service dealer, chcr
attempt to disassemble your unit by yourself.
