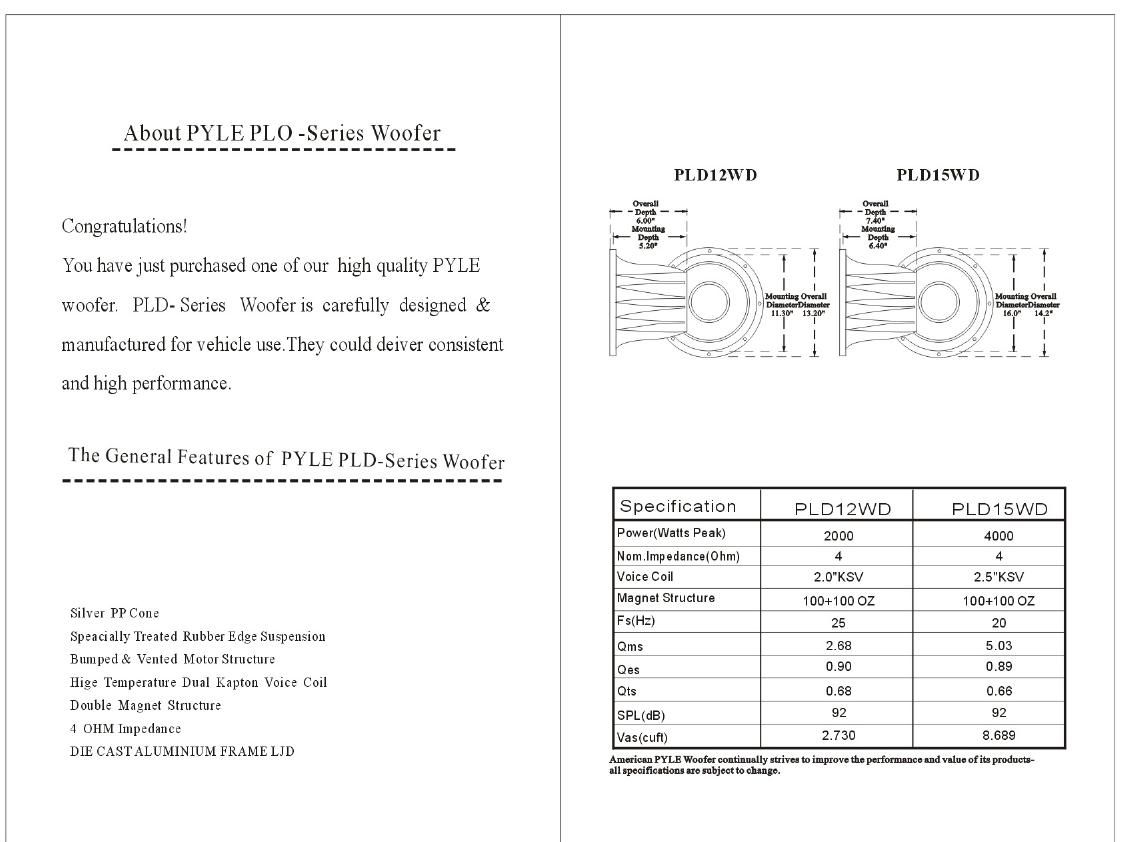

Page 1

About PYLE PLO -Series Woofer

Congratulations!

You have just purchased one of our high quality PYLE
woofer. PLD- Series Woofer is carefully designed &
manufactured for vehicle use.They could deiver consistent

and high performance.

The General Features of PYLE PLD-Series Woofer

Silver PP Cone

Speaci ally Treated Rubber Edge Suspension
Bumped & Vented Motor Structure

Hige Temperature Dual Kaptou Voice Coil
Double Magnet Structure

4 OHM Impedance

DIE CAST ALUMINIUM FRAME LJD

PLDIZWD

PLD15WD

Specification PLD12WD PLD15WD
Power(Watls Peak) 2000 4000
Nom.|mpedance(0hm) 4 4
Voice Coil 20'st 2.5"st
Magnet Structure 100+1oo oz 1oo+1oo oz
Fs(Hz) 25 20
Qms 2.68 503
095 0.90 0.89
Qts 0.68 0,66
SPL(dB) 92 92
Vas(cuﬂ) 2.730 8.689

Amie-n PYLE Wooﬁcr conﬁnully Itrivol to improve it. performer: and Vlluu of it product:-

nll Ipooiﬁoltionu no subject no change.
