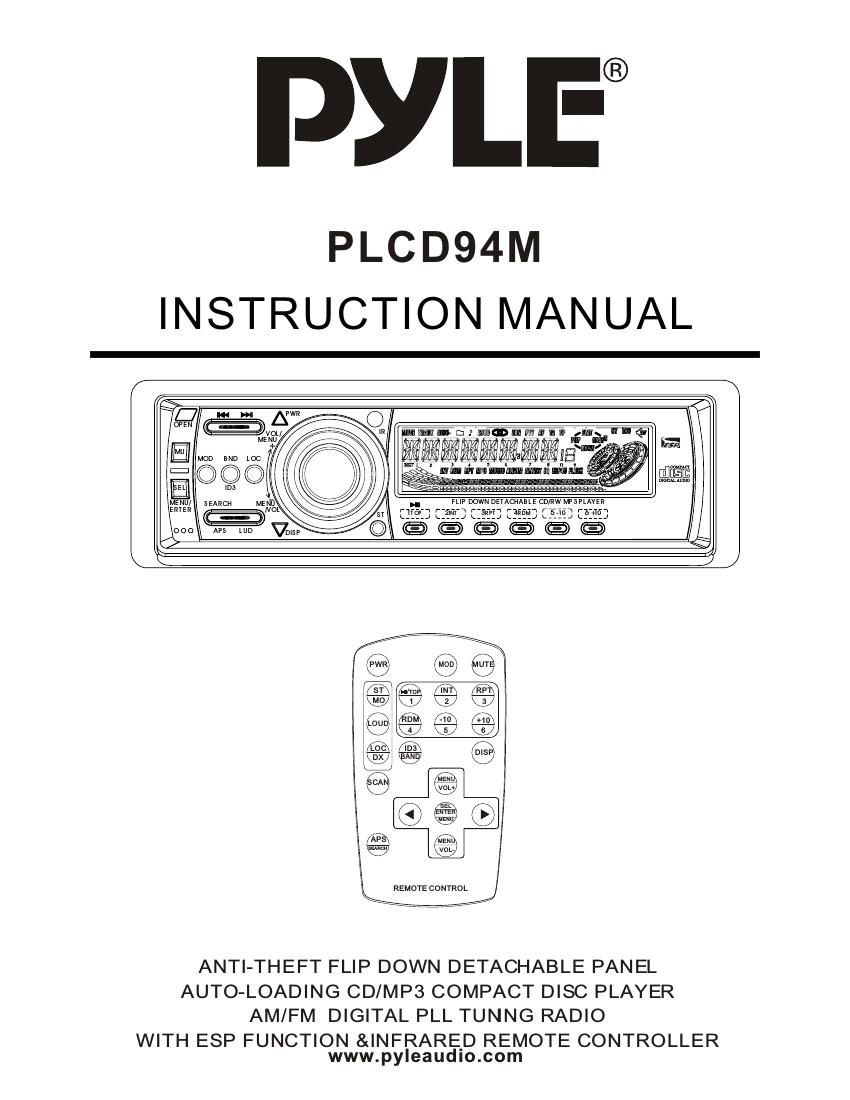

Pyle plcd 94 mp owners manual
This is the 12 pages manual for pyle plcd 94 mp owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plcd 94 mp owners manual (Ocr-read)
Page 1
BASIC OPERATION 1 AUX CABLE 23 21 EJ 22 4 2 3 1 17 187 1910 11 1 213 20 6 9 16 15 14 5 LUD AP S DIS P ID3 SEL ME N U / ERTER SEARCH MU MOD BND ME NU /V OL LOC OP E N PWR ME NUVOL/ FLIP DOWN DET ACHABL E CD/RW MP3 PLAYER 4RDM ST 1TOP 2INT 3RPT 5-10 6+10 IR 8
Page 2
1. OPEN BUTTON Press it to flip down the front panel then you can insert the CD disc into the CD compartment . BASIC OPERATION 2 2.VOLUME(MENU)+/-KNOB Rotate the VOL+/-button to adjust volume level. IN MENU MODE: Rotate the vol+ /- button also can adjust the selected mode. IN MP3 MODE: Press search button to select track or file search, and then press ENTER button to enter track or file search and using the vol+/- button to move track or file search upward or downward. FLAT M CLASS M ROCK M POP M DSP OFF EQ: BEEP ON BEEP OFF BEEP: M U L T O N M U LT O F F MULT: ESP 12 ESP 45 ESP: WOOFER ON WOOFER OFF WOOFER: A. Adjust volume level by using vol+/- button NOTE: The unit is initially set to volume mode. B.Press the SEL button to select volume ,bass, treble, balance, fader mode than use volume +/ - button to adjust the level of them. NOTE: The fader function controls balance between front or rear speakers for four speakers system C.Press and hold SEL button for one second to move display through EQ, ESP, MULT, WOOFER(the woofer function for woofer version only), and BEEP functions. When mode has not been adjusted for several seconds, display return to normal radio or cd display.and then use vol+/- button to adjust the selected mode as follows: 3.SEL/MNU(ENTER) BUTTON Press SEL button immediately to move display through volume, bass, treble and balance functions. Use vol+/-buttton to adjust the select mode. When mode has not been adjusted for several seconds, display returns to normal radio or cd display. VOL BAS TRE BAL FAD (VOLUME) (BASS) (TREBLE) (BALANCE) (FADER) VOL BAS FAD (VOLUME) (BASS) (FADER) Note: During press SEL button if any one of the EQ mode is turned on, LCD display only indicate as follows: D.IN mp3 playback, Used for enter track and file search during MP3 mode after press SEARCH button during track search, after selecting the desired track with 1 digit or 2 digits, selected song begins to play after enter button is pressed for longer than 0.5 second. During file search, when enter button is pressed or longer than 0.5second.at the current directory mode, first song in the corresponding director will begin playing.
