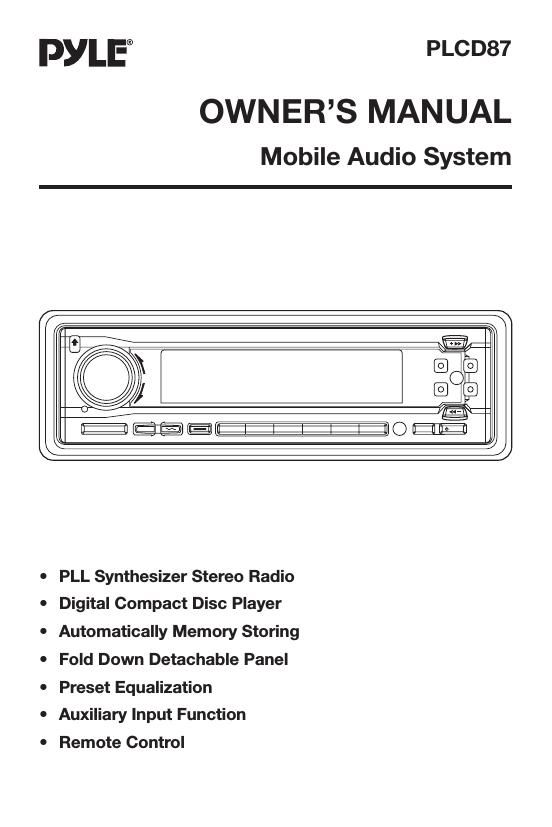

Pyle plcd 87 owners manual
This is the 12 pages manual for pyle plcd 87 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plcd 87 owners manual (Ocr-read)
Page 1
2 Installation .....................................................................................................3 DIN Front-Mount (Method A) ..................................................................................3 Installing the unit ...............................................................................................3 Removing the unit .............................................................................................4 DIN Rear-Mount (Method B) ...................................................................................4 Using the Detachable Front Panel ..............................................................5 Wiring Connection ........................................................................................6 Operation .......................................................................................................7 General Operation ..................................................................................................8 Radio Operation......................................................................................................8 CD Operation ..........................................................................................................9 Remote Control ...........................................................................................10 Specification................................................................................................11 Trouble Shooting .........................................................................................12 CONTENTS
Page 2
3 Notes: - Choose the mounting location where the unit will not interfere with the normal driving function of the driver. - Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. - Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. - Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle. - Install the unit where it does not get in the drivers way and cannot injure the passenger if there is a sudden stop, like an emergency stop. - If installation angle exceeds 30˚ from horizontal, the unit might not give its optimum performance. - Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration. DIN FRONT/REAR-MOUNT This unit can be properly installed either from Front (conventional DIN Front- mount) or Rear (DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods. DIN FRONT-MOUNT (Method A) Installing the unit 1. Dashboard 2. Holder After inserting the holder into the dashboard, select the appropriate tab according to the thickness of the dashboard material and bend them inwards to secure the holder in place. 3. Screw 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw 6. Strap Be sure to use the strap to secure the back of the unit in place. The strap can be bent by hand to the desired angle. 7. Plain washer 30˚ (Fig. 1) 1 3 2 182 53 (Fig. 2) 1 26 5 4 37 INSTALLATION
