Pyle plcd 82 mp owners manual
This is the 6 pages manual for pyle plcd 82 mp owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plcd 82 mp owners manual (Ocr-read)

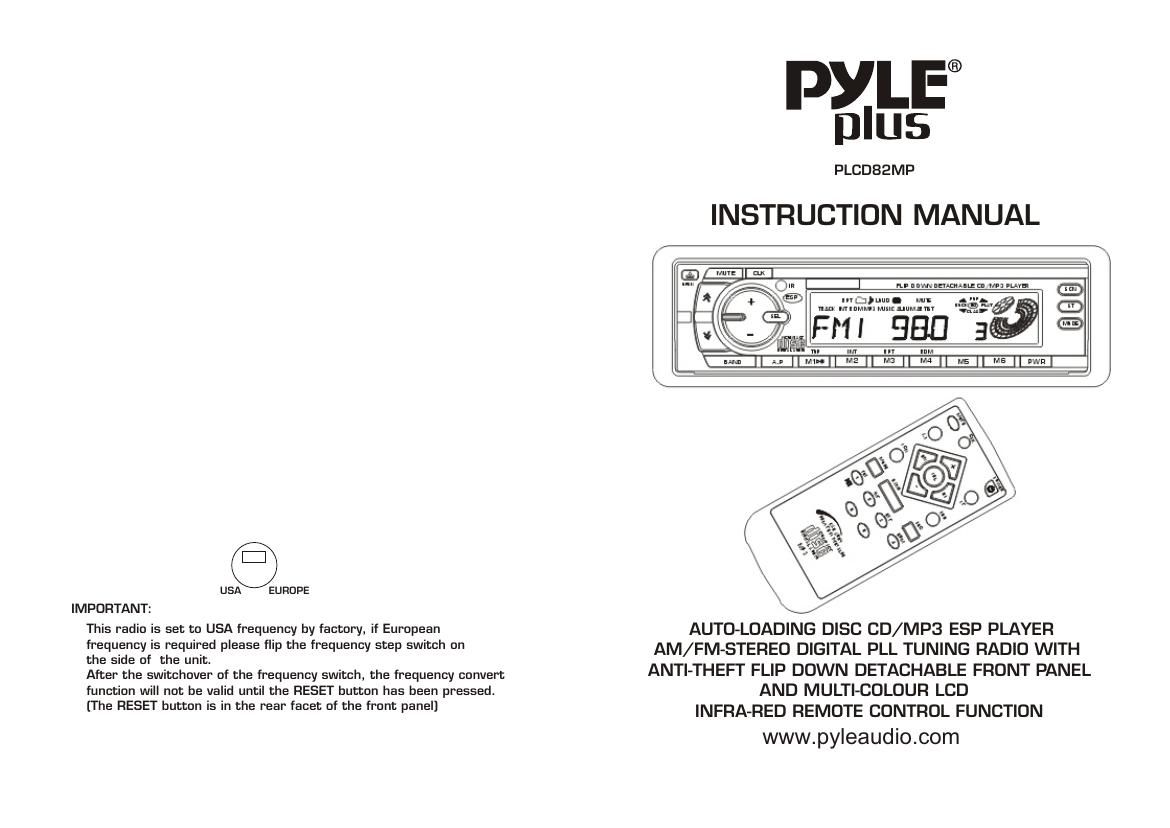

Page 1
DEAR CUSTOMER Selecting fine audio equipment such as the unit you have just purchased is only the start of your musical enjoyment. Now it is time to consider how you can maximize the fun and excitement your equipment offers. We want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion - and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time your hearing " comfort level " adapts to higher volumes of sound. So what sounds " normal " can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level: . Start your volume control at a low setting . Slowly increase the sound until you can hear it comfortably and clearly, and without distortion we want you listening for a lifetime. Once you have established a comfortable sound level: . Set the dial and leave it there. Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime. ABOUT THIS MANUAL This product features a number of sophisticated functions ensuring superior reception and operation. All are designed for the easiest possible use, but many are not self-expanatory. This operation manual is intended to help you benefit fully from their potential and to maximize your listening enjoyment. We recommend that you familiarize yourself with the functions and their operation by reading through the manual before you begin using this product. It is especially important that you read and observe the " precaution " on the next page and in other sections. In this operation manual, the Basic Operation for each sound source is outlined at the beginning of its explanation, covering simple operation for that source, such as merely playing music. , ,110TROUBLE SHOOTINGTo solve the common problem, read the trouble shooting list. If you still can not solve the problem, consult your nearest service dealer. Symptom No power Disc cannot be loaded Cause The fuse is blown Presence of CD disc inside the player Inserting the disc in upside down Compact disc is extremely dirty or defective Temperature inside the car is too high Volume is in minimum No sound The operation keys do not work Sound skips The antenna cable is not connected the signals are too weak Insert the antenna cable firmly select a station manually The radio does not work the radio station automatic selection does not work 1.The built-in microcomputer is not operating properly due to noise 2.Front panel is not properly fix into its place 1. Press the RESET button 2. Reinstall the front panel Wiring is not properly connected The installation angle is more than 30 degrees The disc is extremely dirty or defective Clean the compact disc/try to play a new one Adjust the installation angle to less than 30 degrees Adjust volume to a desired level Check wiring connection Cool off until the ambient temperature returns to normal Clean the disc or try to play a new one Insert the compact disc with the label facing upward Remove the disc in the player then put a new upward Replace the fuse The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to " ACC " Solution Disc cannot be read
Page 2
92SPEAKER CONNECTION ++ ++ ++ ++ YELLOW ANTENNA PLUG MEMORY B+ BLACK(GND) RED (B+) RCA LINE OUT RED R WHITE LFRONT REAR RIGHTSP BLUE AUTO ANT FRONT WHITE WHITE/BLACK GREEN/BLACK VIOLET/BLACK GRAY/BLACK GRAY VIOLET GREEN REAR LEFTSPNOTE: 1. In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. 2. Do not allow the auto antenna wire and ground touch each other. FUSE FUSE 7 A 0.5 ADISC PLAY:Cleaning discs Before playing, clean the disc with a clean, lint-free cloth.Wipe the disc in the direction of the arrow.NOTE: . Do not use so solvents such as benzine, thinners. Commercially available cleaners or anti static spray damage the unit. Do not insert a disc with the label surface down. Doing so may damage the unit.NOTE: . Do not try to insert another disc when one has been already inserted. Doing so may damage the unit.Label surface up.Handle the disc by its edge. And to keep the disc clean, do not touch the surface..Do not stick paper or tape on the disc..Do not expose the disc to direct sunlight or heat sources such as hot air ducts. Or leave it in a car parked in direct sunlight where there can be a considerable rise in temperature.SPECIFICATION GENERAL Power requirement...............................................................................................DC 13.8V. Current consumption..............................................................................................7A MAX.POWER OUTPUT...................................................................................................4 X 40W. FM SECTION Frequency range.......................................................................87.5MHz -108MHz(EUROPE) Usable sensitivity..........................................................................................................3uV. I.F Frequency.......................................................................................................10.7MHz.AM SECTIONFrequency range......................................................................522KHz - 1620KHz(EUROPE) I.F Frequency..........................................................................................................450KHz Usable Sensitivity........................................................................................................40dBLINE - OUT [OPTION]Output......................................................................................................CD MAX 800mvCD PLAYERSystem........................................................................................compact disc audio system.Usable disc................................................................................CD/CD-R/CD-RW/MP3 disc No of quantization bits 1bit.Signal format.............................................................................sampling frequency 44.1KHz.Frequency characteristics............................................................................20-100Hz < 5dB 10-20KHz < 5dB.Signal to noise CD............................................................................................50dB [1KHz] Number of channels..............................................................................................2 STEREO.Chassis dimensions.......................................................................178[W] X 50[H] X 165[D]. Frequency range..........................................................................87.5MHz -107.9MHz(USA) Frequency range............................................................................530KHz - 1710KHz(USA) \ \\\ AUX LINE IN RED R WHITE L
