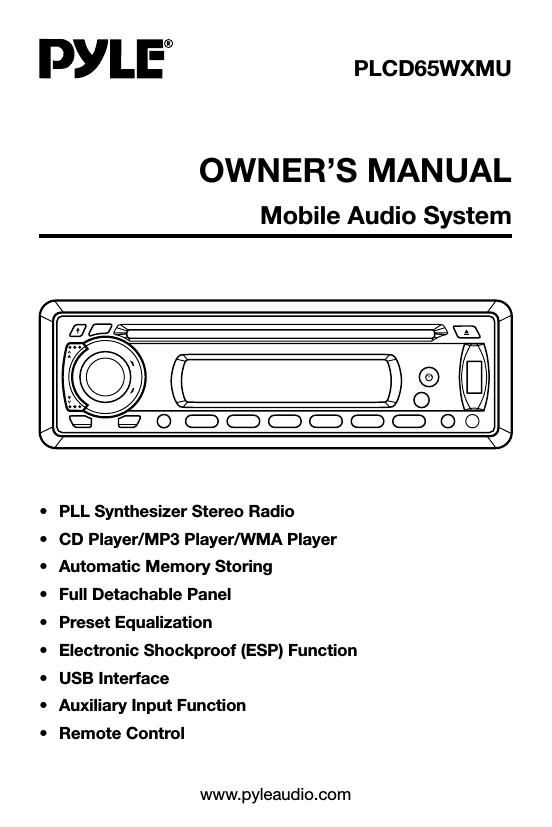

Pyle plcd 65 wxmu owners manual
This is the 16 pages manual for pyle plcd 65 wxmu owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plcd 65 wxmu owners manual (Ocr-read)
Page 1
2 CONTENTS Installation ...........................................3 Take out screw before installation.........3 DIN Front-Mount (Method A) ................3 Installing the unit.................................3 Removing the unit...............................4 DIN Rear-Mount (Method B) .................5 Using the detachable front panel ......6 Wiring Connection ..............................7 Operation .............................................8 Location of keys....................................8 Switching on/off the unit ......................9 Faceplate release ..................................9 Sound adjustment.................................9 Loudness ..............................................9 Set the clock ........................................9 Mute ......................................................9 Equalization...........................................9 Liquid crystal display ...........................9 Remote sensor .....................................9 ESP function ........................................9 Reset function .......................................9 Radio operation ....................................9 Switching to radio mode.....................9 Selecting the frequency band .............9 Selecting station ...............................10 Local/distance ..................................10 Automatically memory storing & program scanning ...........................................10 Station storing ..................................10 Mono/stereo .....................................10 CD operation .......................................10 Switching to CD mode......................10 Selecting tracks ................................10 Pausing playing ................................10 Previewing all tracks .........................10 Repeating the same track.................10 Playing all tracks in random..............10 Ejecting a disc ..................................10 MP3 operation ...................................11 Switching to CD (MP3) mode............ 11 Ejecting a disc................................... 11 Selecting tracks in single step........... 11Pausing playing................................. 11 Previewing all tracks ......................... 11 Repeating the same track ................. 11 Playing all tracks in random .............. 11 Selecting tracks by AS/PS/D-AUD button ...............................................11 Display information ........................... 12 WMA operation ...................................12 USB play operation .............................12 Record operation ................................13 Supported MP3/WMA decoding modes .................................................13 Disc notes ...........................................13 Remote control................................. 14 Specification ..................................... 15 Trouble shooting .............................. 16
Page 2
3 INSTALLATION Notes: - Choose the mounting location where the unit will not interfere with the normal driving function of the driver. - Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. - Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. - Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle. - Install the unit where it does not get in the drivers way and cannot injure the passenger if there is a sudden stop, like an emergency stop. - If installation angle exceeds 30˚ from horizontal, the unit might not give its optimum performance. - Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration. DIN FRONT/REAR-MOUNT This unit can be properly installed either from Front (conventional DIN Front- mount) or Rear (DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods. TAKE OUT SCREW BEFORE INSTALLATION Before install the unit, please remove the two screws. DIN FRONT-MOUNT (Method A) Installation Opening This unit can be installed in any dashboard having an opening as show below: Installing the unit Be sure you test all connections first, and then follow these steps to install the unit. 1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal. 2. Disconnect the wire harness and the antenna. 3. Press the release button on the front panel and remove the control panel (see the steps of removing the front panel). 4. Lift the top of the outer trim ring then pull it out to remove it. 5. The two supplied keys release tabs inside the unit's sleeve so you can remove it. Insert the keys as far as they will go (with the notches facing up) into the appropriate slots at the middle left and right sides of the unit. Then slide the sleeve off the back of the unit. 30˚ 182 mm 53 mm Take out screw before installation
