Extracted text from pyle plcd 58 mp 3 owners manual (Ocr-read)

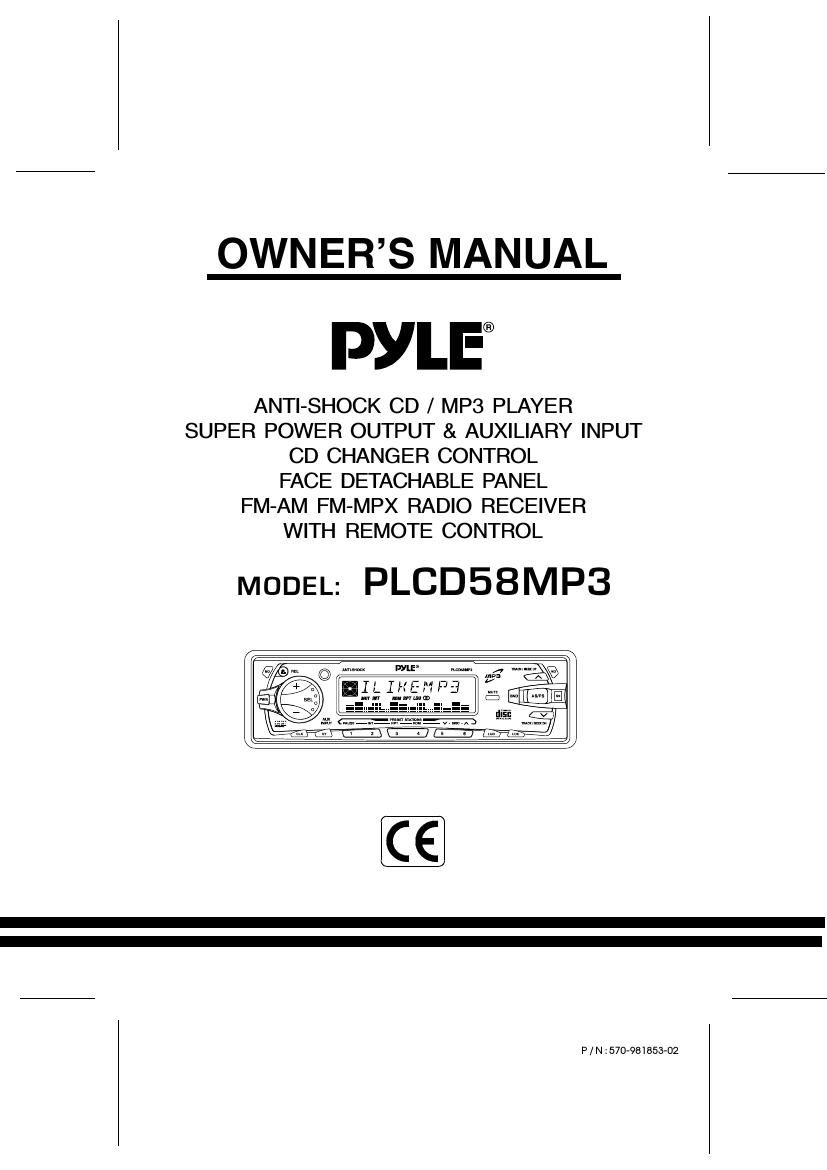

Page 1
Page. 2 P / N : 570-981853-02 7. CLOCK CONTROL The display key serves to show available information as following: - Time - Track No. / Playing Time (during CD and MP3 mode) - Directory Name / File Name (during MP3 mode and the file must contain directories or files name written by the CD writer) SETTING CLOCK TIME 1. Press CLOCK button and hold it until the display flash and release. 2. Press + button to set HOUR and press - to set MINUTE. 8. STEREO/MONO CONTROL Press this button to select FM STEREO or MONO reception. 9. EJECT BUTTON Press the button to eject the disc inside disc slot. 10. PANEL RELEASE BUTTON (FIGURE A) To detach the front panel, press the release button so that the panel fold down from vertical position to horizontal position and then pull it off of the chassis at horizontal position. To re-attach the panel, push the fold-down metal frame forward until it locks to the original postion. Then, put the panel at the right side of the position first and then press the left side of the panel until the mechanism lock it into place. 11. MODE SELECTION Press this button to select Radio (TUNER), CD/MP3 (S-CDP), CD Changer Control (CDC) or Auxiliary input (AUX) mode. 12. LOCAL/DISTANT SELECTOR Press this button to prevent strong local stations from overlapping weaker stations. For normal operation, press this button again for distance. OPERATING INSTRUCTIONS LOCATION OF CONTROLS1. POWER ON/OFF CONTROL Press the button to turn the power ON or OFF. Note : The unit can be turn on by pressing any keys on the panel (except panel release button & disc eject button). It will help the user who cannot find the power button in dark. 2. BAND SELECTOR Each time this button is pressed, the radio band is changed. The indication FM1, FM2, FM3, MW1 or MW2 will appear on the display according to your selection. 3. SCAN CONTROL Press this button to scan the receivable FM / MW stations. When receivable stations are tuned in, they are monitored for approximately 5 seconds before advancing to the next receivable station. Press SCAN button once again to stop scanning as desired. 4. PRE-SCAN/AUTO-STORE BUTTON This button allows you to enjoy Preset Memory Scan function by pushing it shortly, and Auto-Store Memory function by pushing it more than 2 seconds. * PS (PRESET MEMORY SCAN) - It calls the memorized station frequencies ( from 1-6 ) automatically every 5 seconds. * AS (AUTO-STORE MEMORY) - It searches all station frequencies upward and memorize automatically 6 stations by catching the frequency which has scan-stop level, the memorized station is shown on LCD as CH1...6. After memorizing, auto-store memory function will be changed to Preset Memory Scan function automatically. 5. DISC SLOT Holding the disc and insert into the disc slot. The disc mechanism will automatically engage into CD/MP3 play mode. 6. LCD DIGITAL DISPLAY The unit utilizes a digital type display which shows numerical indication of station FREQUENCY and other FUNCTIONS. REMARK :AT ANY TIME, IF THE WIRE IS DISCONNECTED, THE RESET SWITCH MUST BE PRESSED AGAIN BEFORE OPERATE THE RADIO (REFER TO PAGE 4 FOR DETAIL). OTHERWISE, THE RADIO MAY NOT WORK PROPERLY. 13. LOUD CONTROL Press this button to activate the loudness circuitry which compensates for loss of high and low frequencies during low volume levels. 14. MUTE CONTROL Press this button to mute the volume control and MUT will appear on LCD display. 15. AUDIO / SETTING SELECT Briefly press the button to select volume, bass, treble, balance or fader adjustment in cyclical mode. When pressing the button for more than 2 seconds, it activates as unit setting selection in cyclical mode as following. The unit setting can be changed by using either VOL + or VOL – button. FIGURE A
Page 2
P / N : 570-981853-02 Page. 3 - -- - -DSP OFF/ POP M/ ROCK M/ CLASS M/ FLAT M - -- - -ESP 12/ ESP 45 (timing of electronic anti-shock for CD mode) (OPTIONAL) - -- - -BEEP OFF/ BEEP ON (not available for this model) - -- - -SEEK 1 (tune up/down button performs fast tune function) / SEEK 2 (performs auto tuning function when tune up/down button pressed more than 1 second) - -- - -COLOR 1 / COLOR 2 (not available for this model) - -- - -VOL LAST / VOL ADJ (preset volume level when unit turn on) 16/17. AUDIO LEVEL DOWN/UP CONTROL ( - Button ) / ( + Button ) Press SEL button shortly and then pressing + or - button to adjust level of volume, bass, treble, balance or fader. - VOLUME - Press the (+) button to increase, or (-) button to decrease volume level. - BASS - While BASS is being displayed, press (+) button to increase or (-) button to decrease the bass level. - TREBLE - While TREB is being displayed, press (+) button to increase or (-) button to decrease the treble level. - BALANCE - While BAL is being displayed, press (+) or (-) button to level balance of speaker right and left. - FADER - While FAD is being displayed, press (+) or (-) button to level fader of speaker front and rear. 18/19.MANUAL UP/DOWN TUNING / TRACK SEEK UP/DOWN CONTROL On radio mode, press the button will tune one frequency step higher or lower. Pressing the button more than 1 second can performs fast tuning function or auto tuning function. On CD/MP3/CDC mode, press this button will locate the beginning of the track being played or will locate the beginning of the next track. When pressing more than 2 seconds, it will move fast forward or fast backward to a specific position of a CD/MP3 track. 20. STATION PRESET BUTTON (1-6) The PRESET BUTTONS on the unit are used to store station frequencies which you may wish to recall. Each preset button can store FM1, FM2, FM3, MW1, MW2 station frequency. Pressing the button momentarily recalls the station frequency which was memorized. There are 6 preset buttons, giving you capability of storing 18FM / 12MW. NOTE: When the preset button to be memorized is kept pressed for more than 2 seconds, the receiving station frequency will be stored in the button pressed. After this, the memorized station can be recalled by pressing the button once. On CD / MP3 / CD Changer Mode - Preset 1 - press this button to pause the disc played. - Preset 2 - press this button to scan the first 10 seconds of all the tracks on the currently selected disc. - Preset 3 - press this button to repeat the current track of the disc. - Preset 4 - press this button to play disc at random order - Disc shuffle play. - Preset 5 - press this button to search -10 track (for MP3 Mode only). -press this button to search previous disc numbers (for CD Changer Mode only). - Preset 6 - press this button to search +10 track (for MP3 Mode only). -press this button to search the disc numbers ahead (for CD Changer Mode only). INSTRUCTION TO PLAY MP3 SONGS IMPORTANT NOTES -The MP3 file recording media acceptable to this unit are CD-R and CD-RW. -The MP3 formats acceptable are limited. -Do not attempt to play a media containing non-MP3 files or non-MP3 files with MP3 extension. Otherwise, the CD Mechanism will not working properly. If ERROR is shown, it is suggested to reset the radio by presssing the reset button. PLAY ON MP3 SONG -Insert the media with MP3 song in the disc slot. The unit will start playing and checks all the files and folder on the media. -If MP3 files and directories are recognized, the media will start playing. -The MP3 files and directories are accessed according to the order written by the CD writer. TRACK SEARCH -Press AMS button once and TRK SCH will be shown on the display. -Press SEL to enter track search mode and 001 will appear on the display for you to enter track number. -Press + or - to shift number 0 – 9 in loop rotation. -Press SEL shortly to select the first digit. -Repeat the same procedure to enter the other digits if required. -After the track number is selected, press SEL button more than 2 seconds to start playing the selected track. -If track number is not entered within 10 seconds, the unit will continue playing the current file. FILES SEARCH -Press AMS button twice and FILE SCH will be shown on the display -Press SEL to enter file search mode. -Press + or - to view the directories. -After the selected directory is selected, press + or - to view the files. -Press SEL to play the selected file. -If directories or files name is not entered within 10 seconds, the unit will continue playing the current file. CHARACTER SEARCH (OPTIONAL) - Press AMS button 3 times and CHAR SCH will be shown on the display. - Press SEL to enter into character search mode and A will appear on the display for you to enter first character. - Enter whole name of files (maximum 8 characters) by pressing + or - to shift A-Z, 0-9 & (space) in loop rotation. - Press SEL shortly to select the first character. - Repeat the same procedure to enter the other characters if required. - After the whole name of file is entered, press SEL button more than 2 seconds to start playing the selected track. Remark : 1) The media must contain directories or files name written by the CD writer in order to use in searching. 2) If only partial letters are entered for searching either in directories or files name, you may not get it correctly. EXAMPLE OF FOUNDING THE FILE NAME OF HIT 3 - H - press + button 7 times until H show on the display, then pressing SEL button for inputting the following character. - I - press + button 8 times until I show on the display, then pressing SEL button for inputting the following character. - T - press - button continuously until T show on the display, then pressing SEL button for inputting the following character. - space - press - button until show on the display, then pressing SEL button for inputting the following character. - 3 - press - button until 3 show on the display, then pressing SEL button for inputting the character.
