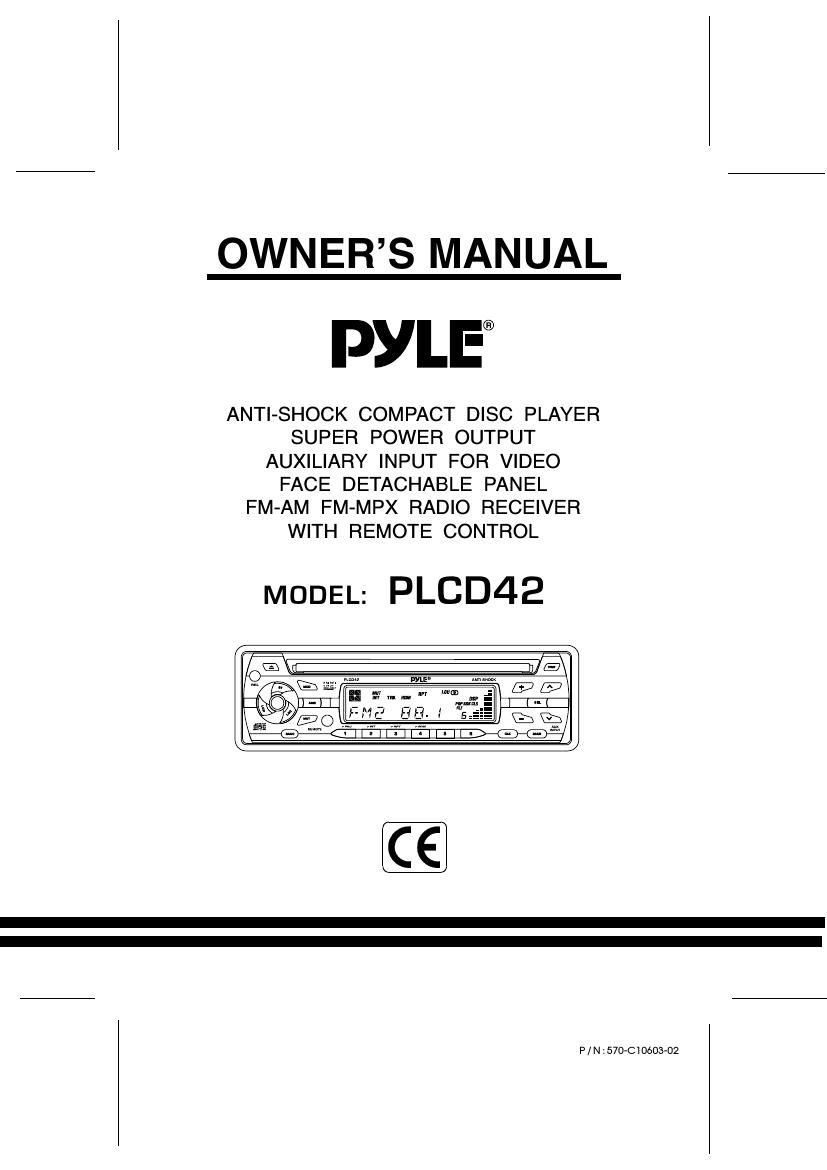

Pyle plcd 42 owners manual
This is the 4 pages manual for pyle plcd 42 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plcd 42 owners manual (Ocr-read)
Page 1
Page. 2 P / N : 570-C10603-02 OPERATING INSTRUCTIONS LOCATION OF CONTROLS 7. CLOCK CONTROL During radio and CD operation, press this button to call the time display on the incorporated quartz clock. SETTING CLOCK TIME 1. Press CLOCK button and hold it until the display flash and release. 2. Press + button to set HOUR and press - to set MINUTE. 8. STEREO/MONO CONTROL Press this button to select FM STEREO or MONO reception. 9. EJECT BUTTON Press the button to eject the disc inside disc slot. 1. POWER ON/OFF CONTROL Press the button to turn the power ON or OFF. Note : The unit can be turn on by pressing any keys on the panel (except panel release button & disc eject button). It will help the user who cannot find the power button in dark. 2. BAND SELECTOR Each time this button is pressed, the radio band is changed. The indication FM1, FM2, FM3, MW1 or MW2 will appear on the display according to your selection. 3. SCAN CONTROL Press this button to scan the receivable FM / MW stations. When receivable stations are tuned in, they are monitored for approximately 5 seconds before advancing to the next receivable station. Press SCAN button once again to stop scanning as desired. 4. PRE-SCAN/AUTO-STORE BUTTON This button allows you to enjoy Preset Memory Scan function by pushing it shortly, and Auto-Store Memory function by pushing it more than 2 seconds. * PS (PRESET MEMORY SCAN ) - It calls the memorized station frequencies ( from 1-6 ) automatically every 5 seconds. * AS (AUTO-STORE MEMORY ) - It searches all station frequencies upward and memorize automatically 6 stations by catching the frequency which has scan-stop level, the memorized station is shown on LCD as CH1...6. After memorizing, auto-store memory function will be changed to Preset Memory Scan function automatically. 5. DISC SLOT Holding the disc and insert into the disc slot. The CD mechanism will automatically engage into CD play mode. 6. LCD DIGITAL DISPLAY The unit utilizes a digital type display which shows numerical indication of station FREQUENCY and other FUNCTIONS.
Page 2
P / N : 570-C10603-02 Page. 3 13. LOUD CONTROL Press this button to activate the loudness circuitry which compensates for loss of high and low frequencies during low volume levels. 14. MUTE CONTROL Press this button to mute the volume control and MUT will appear on LCD display. 15. AUDIO / SETTING SELECT Briefly press the button to select volume, bass, treble, balance or fader adjustment in cyclical mode. When pressing the button for more than 2 seconds, it activates as unit setting selection in cyclical mode as following. The unit setting can be changed by using either VOL + or VOL – button. - -- - -DSP OFF/ POP M/ ROCK M/ CLASS M/ FLAT M - -- - -ESP 12/ ESP 45 (setting 12 seconds or 45 seconds electronic anti-shock timing for audio CD) - -- - -BEEP OFF/ BEEP ON (not available for this model) - -- - -SEEK 1 (tune up/down button performs fast tune function) / SEEK 2 (performs auto tuning function when tune up/down button pressed more than 1 second) - -- - -COLOR 1 / COLOR 2 (not available for this model) - -- - -VOL LAST / VOL ADJ (preset volume level when unit turn on) 16/17. AUDIO LEVEL DOWN/UP CONTROL ( - Button ) / ( + Button ) Press SEL button shortly and then pressing + or - button to adjust level of volume, bass, treble, balance or fader. - VOLUME - Press the (+) button to increase, or (-) button to decrease volume level. - BASS - While BASS is being displayed, press (+) button to increase or (-) button to decrease the bass level. - TREBLE - While TREB is being displayed, press (+) button to increase or (-) button to decrease the treble level. - BALANCE - While BAL is being displayed, press (+) or (-) button to level balance of speaker right and left. - FADER - While FAD is being displayed, press (+) or (-) button to level fader of speaker front and rear. 18/19.MANUAL UP/DOWN TUNING / TRACK SEEK UP/DOWN CONTROL On radio mode, press the button will tune one frequency step higher or lower. Pressing the button more than 1 second can performs fast tuning function or auto tuning function. On CD mode, press this button will locate the beginning of the track being played or will locate the beginning of the next track. When pressing more than 2 seconds, it will move fast forward or fast backward to a specific position of a CD track. 20. STATION PRESET BUTTON (1-6) The PRESET BUTTONS on the unit are used to store station frequencies which you may wish to recall. Each preset button can store FM1, FM2, FM3, MW1, MW2 station frequency. Pressing the button momentarily recalls the station frequency which was memorized. There are 6 preset buttons, giving you capability of storing 18FM / 12MW. NOTE: When the preset button to be memorized is kept pressed for more than 2 seconds, the receiving station frequency will be stored in the button pressed. After this, the memorized station can be recalled by pressing the button once. On CD Mode - Preset 1 - press this button to pause the disc played.- Preset 2 - press this button to scan the first 10 seconds of all the tracks on the currently selected disc.- Preset 3 - press this button to repeat the current track of the disc.- Preset 4 - press this button to play disc at random order - Disc shuffle play. 10. PANEL RELEASE BUTTON This button is used to release the panel from the unit. To detach the front panel, press the button so that the left side of the panel is released. Grasp the released side and pull it off of the chassis. To re-attach the panel, insert the right side of the panel in place first and then press the left side of the panel until the chassis hold the panel firmly. 11. MODE SELECTION Press this button to select Radio (TUNER), CD (S-CDP), or Auxiliary input (AUX) mode. 12. LOCAL/DISTANT SELECTOR Press this button to prevent strong local stations from overlapping weaker stations. For normal operation, press this button again for distance.
