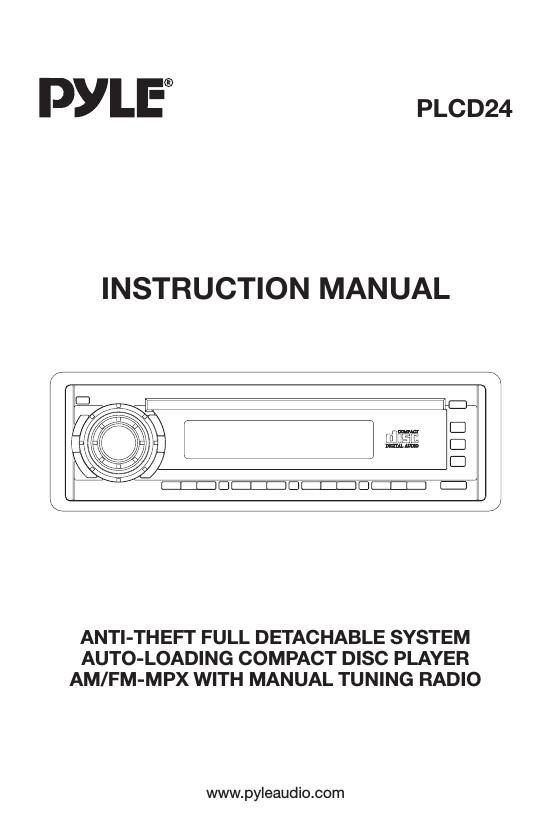

Pyle plcd 24 owners manual
This is the 12 pages manual for pyle plcd 24 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle plcd 24 owners manual (Ocr-read)
Page 1
1 1. RELEASE BUTTON Press it to detach the front panel when you want to take the unit away. 2. LOC/RPT BUTTON LOCAL/DISTANCE MODE: When in the radio mode, press it to select local or distance broadcast station receive sensitivity. The word LOC will appear on LCD during local state. Attention: During AM mode, LOC is non-functional. REPEAT MODE: During CD mode. Press RPT button to repeat a single track. 3. LUD/RDM BUTTON LUD MODE: When reduce the volume to half level, press it to enhance the bass effect. RDM MODE: During CD mode, press it and hold for 5 seconds, it display RDM and Random function performs. 4. CDP/AF (FOR RDS) BUTTON When in RADIO mode, press the button to change into CD playing, press it again to pause the CD playing, press it again to return back to CD playing. AF [ALTERNATIVE FREQUENCIES] (FOR RDS ONLY) BASIC OPERATION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 17 16 SOCLCMBNTMIT O TE AD A Q/N EKU/ STEREO CA R COMPACT D I SC PL AYER AF TA LOUD EJ WR P AF E LOC RPT LUD RDM TEUN RLE L LOC RPT LUD RDM UNSE TELBAND MO/INT EQ CLOCK MUTE TRACK MUTE DSP ST LOC INT RDM RPT LOUD CA R COMPACT D I SC PL AYEREJ WR P RE L
Page 2
2 BASIC OPERATION VOL BAS TRE BAL FAD (Volume) (Bass) (Treble) (Balance) (Fader) 1. By pushing short. 1) RADIO mode changed the mode to CDP mode. 2).CDP mode changed the PLAY mode to PAUSE mode and vice versa. 2. By pushing long. It is engaging whether "AF SEARCH" mode ON or OFF. If "AF SEARCH" mode is turned on, the 1'st AF is displayed on the LCD. All the AF list can be shown by pressing "DISPLAY" key during "AF SEARCH ON" mode. When AF is shown, the display mode changes to the frequency if the user changes the frequency. RDS signal is NOT received during AF search mode. This mode is released after few seconds. But, this mode is NOT released during changing the tunned frequency to search AF. 5. EJECT BUTTON Press it to eject the CD DISC. 6.7.TRACK UP/DOWN BUTTONS During CD mode, press button allow you to track forwards. Hold the button allow you to skip forwards. 8. TUNING BUTTON Rotate TUNING knob clockwise or anticlockwise to adjust the frequency upward or downward. 9.10.11. SEL( AUDIO MODE SELECT) / +/- BUTTONS Press SEL button to change the mode in the sequence of A. The volume level can be adjusted at any time by pressing the audio level+ or - button as select mode has been initially defaulted at volume mode. B. The volume level is also obtained by stepping through the SEL button until the function VOL is displayed and then press + or - button to adjust the sound level. C. Press and hold the + or - button to adjust the sound level. D. Adjust sound balance between front and rear speakers by using + and - buttons. 12. EQ BUTTON Press it to switch between 3 preset equalizer curves: POP, CLAS, ROCK. The sound quality will be changed. 13. MO/INT BUTTON MO MODE: Press it to select mono or stereo mode. INT MODE: During CD mode, press INTRO button to hear the first 10 seconds of each track on the disc. Press this button again to restore the player to its normal play mode. 14. CLOCK ADJUSTMENT BUTTON 1. NO AF SEARCH mode. When pressed short, it is operated as the conversion of each display mode as follows: - In FM mode : (PS) ->(CLOCK)-> FREQ. -> (PTY) ->
