Extracted text from pyle plcd 16 mrwb owners manual (Ocr-read)

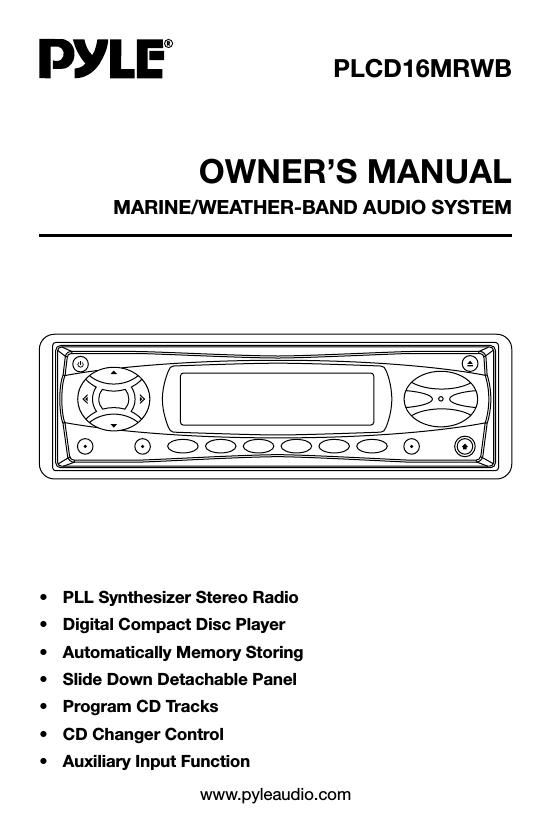

Page 1
2 CONTENTS Installation .....................................................................................................3 DIN Front-Mount....................................................................................................3 Installing the unit .............................................................................................3 Removing the unit ...........................................................................................4 Using the Detachable Front Panel .............................................................5 Wiring Connection ........................................................................................6 Operation .......................................................................................................7 General Operation ..............................................................................................11 Radio Operation .................................................................................................13 CD Operation ......................................................................................................14 CD Changer Operation ........................................................................................15 Specification................................................................................................16 Trouble Shooting .........................................................................................17
Page 2
Notes: - The unit can be installed on the vehicle or the ships. - Choose the mounting location where the unit will not interfere with the normal driving function of the driver. - Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. - Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. - Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle or the ship. - Install the unit where it does not get in the drivers way and cannot injure the passenger if there is a sudden stop, like an emergency stop. - If installation angel exceeds 30˚ from horizontal, the unit might not give its optimum performance. - Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration. TAKE OUT SCREW BEFORE INSTALL Before install the unit, please remove the two screws. NOTE: If this unit is installed on the ship, you should use two pieces of plastic film (30mmX20mm) supplied with the unit to seal the two holes after remove the screws. And this will be waterproof. DIN FRONT-MOUNT Installing the unit 1. Dashboard 2. Holder After inserting the holder into the dashboard, select the appropriate tab according to the thickness of the dashboard material and bend them inwards to secure the holder in place. 3. Screw 3 INST ALLA TION (Fig. 1) 1 3 2 182 53 Take out screw before installation 30˚
