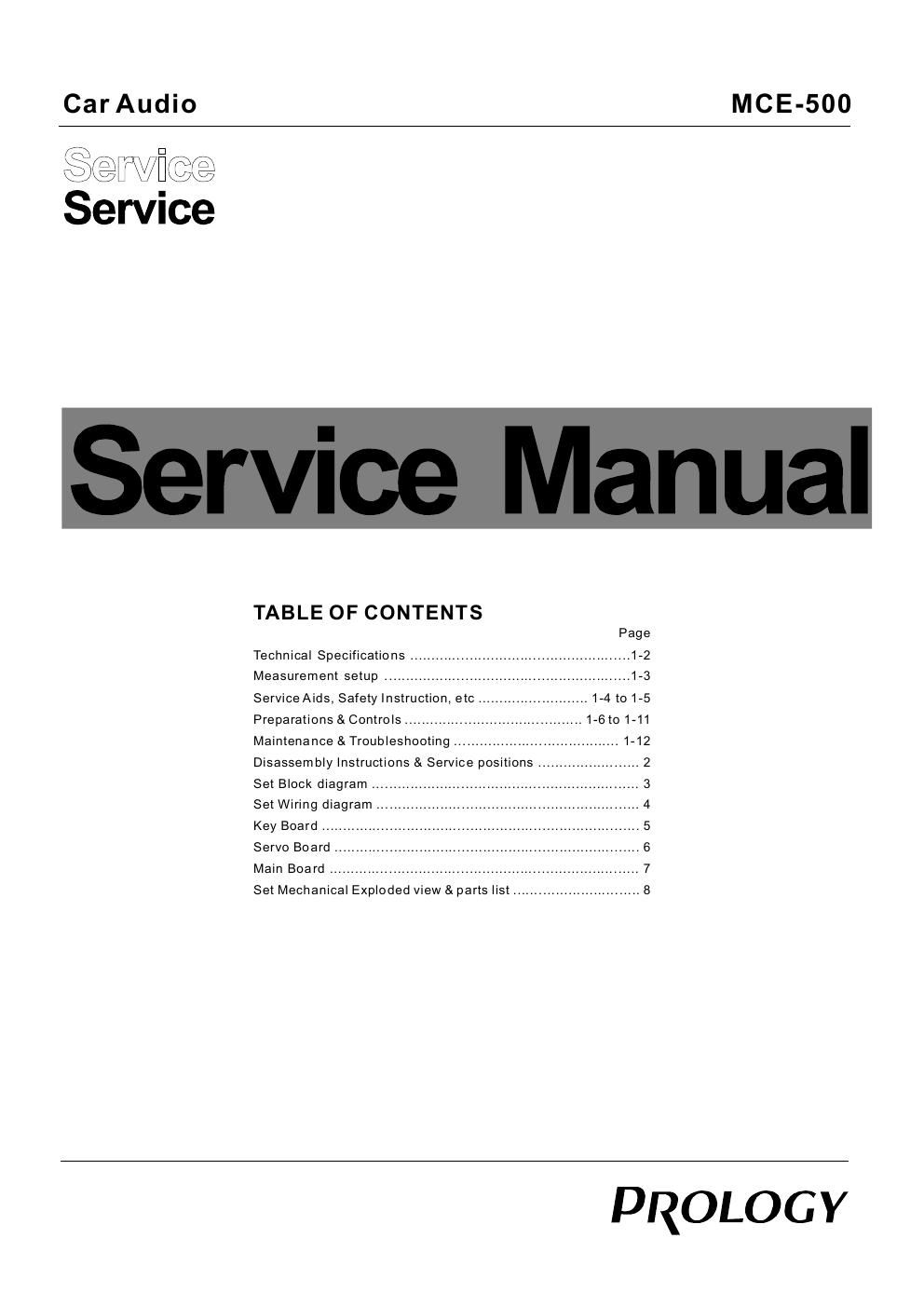

Page 1
CarAudio
MOE-500
R'\ a ,
Service
TABLE OF CONTENTS
Page
Technical Specifications .................................................... 12
Measurement setup .......................................................... 143
ServiceAids, Safety Instruction, etc .......................... 14 to 1-5
Preparations&Controls .......................................... 1-6to1»11
Maintenance&Troubleshooting .................... 1»12
Disassembly Instructions & Service positions.
Set Block diagram ........................................ .3
Set Wiring diagram .............................................................. 4
Key Board ........................................................................... 5
Servo Board .
Main Board
Set Mechanical Exploded view 8. parts list.
PROLOGY
