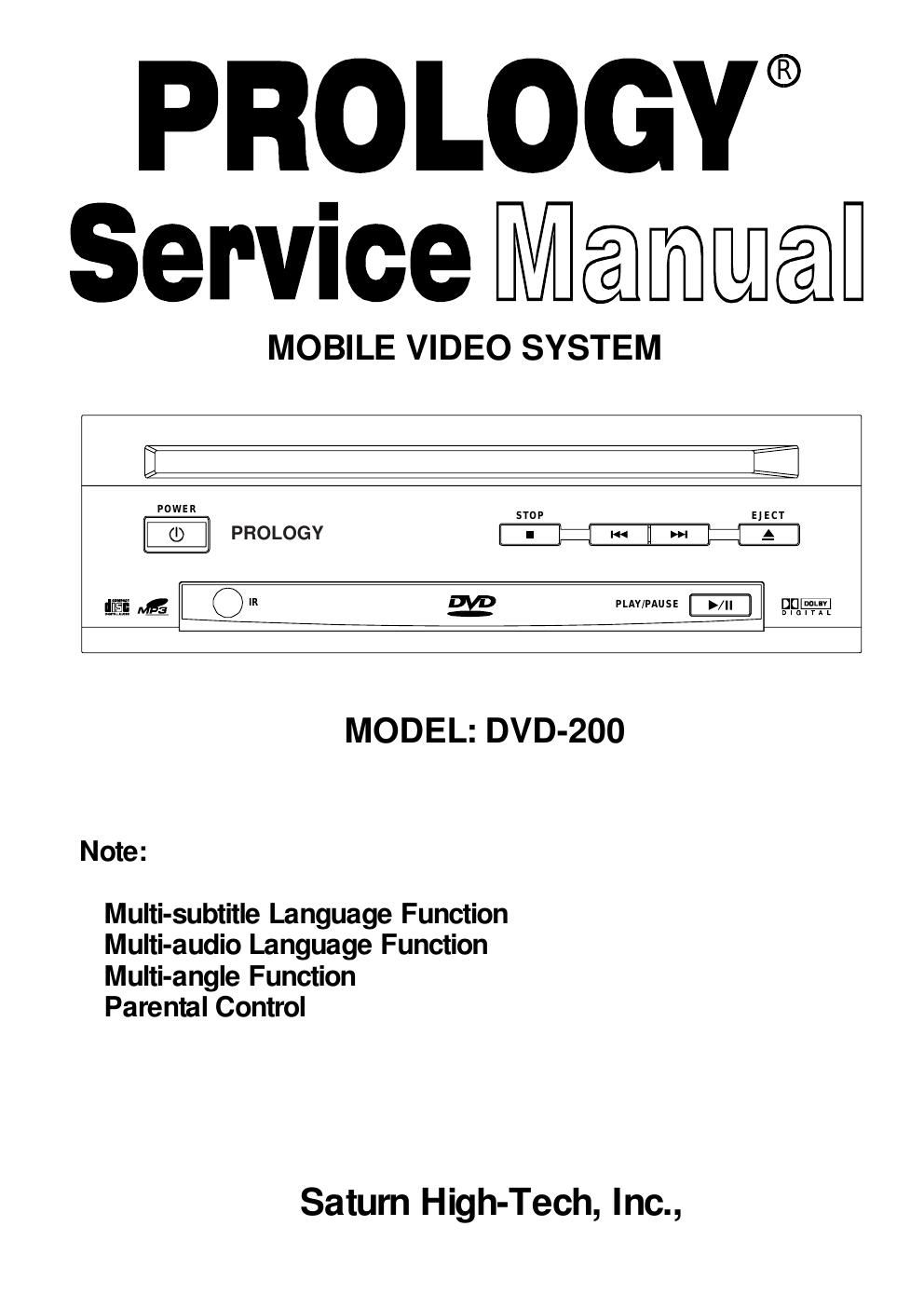

Prology dvd 200 service manual
This is the 23 pages manual for prology dvd 200 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from prology dvd 200 service manual (Ocr-read)
Page 1
2 CONTENTS Page Disassembly Instructions .................................................................................................................................. 3 Disassembly Diagram ....................................................................................................................................... 4 Block Diagram .................................................................................................................................................. 5 Printed Circuit Board......................................................................................................................................... 6 Wiring Diagram ............................................................................................................................................... 11 Exploded View .............................................................................................................................................. 12 Exploded View Parts List .............................................................................................................................. 13 Schematic Diagram ........................................................................................................................................ 14 Electrical Parts List ......................................................................................................................................... 19 Specifications .................................................................................................................................................. 23
Page 2
3 DISASSEMBLY INSTRUCTIONS 1. Remove two screws (A) from each side of the top cabinet and remove three screws (B) located on the rear of the top cabinet then remove the Top Cabinet. 2. Remove four screws (C) located on the under the bottom cabinet then remove four Rubber Foot. 4. Remove two screws (D) located on the under the bottom cabinet and remove two screws (E) from each side of the top panel then remove the Top Panel. 5. Remove two screws (F) from the deck front bracket and remove two screws (G) from the deck rear bracket then remove the Main Board and the Bottom Cabinet. 6. Remove two screws (H) from the deck front bracket then remove the Deck Front Bracket. 7. Remove two screws (I) from the deck rear bracket then remove the Deck and the Deck Rear Bracket.
