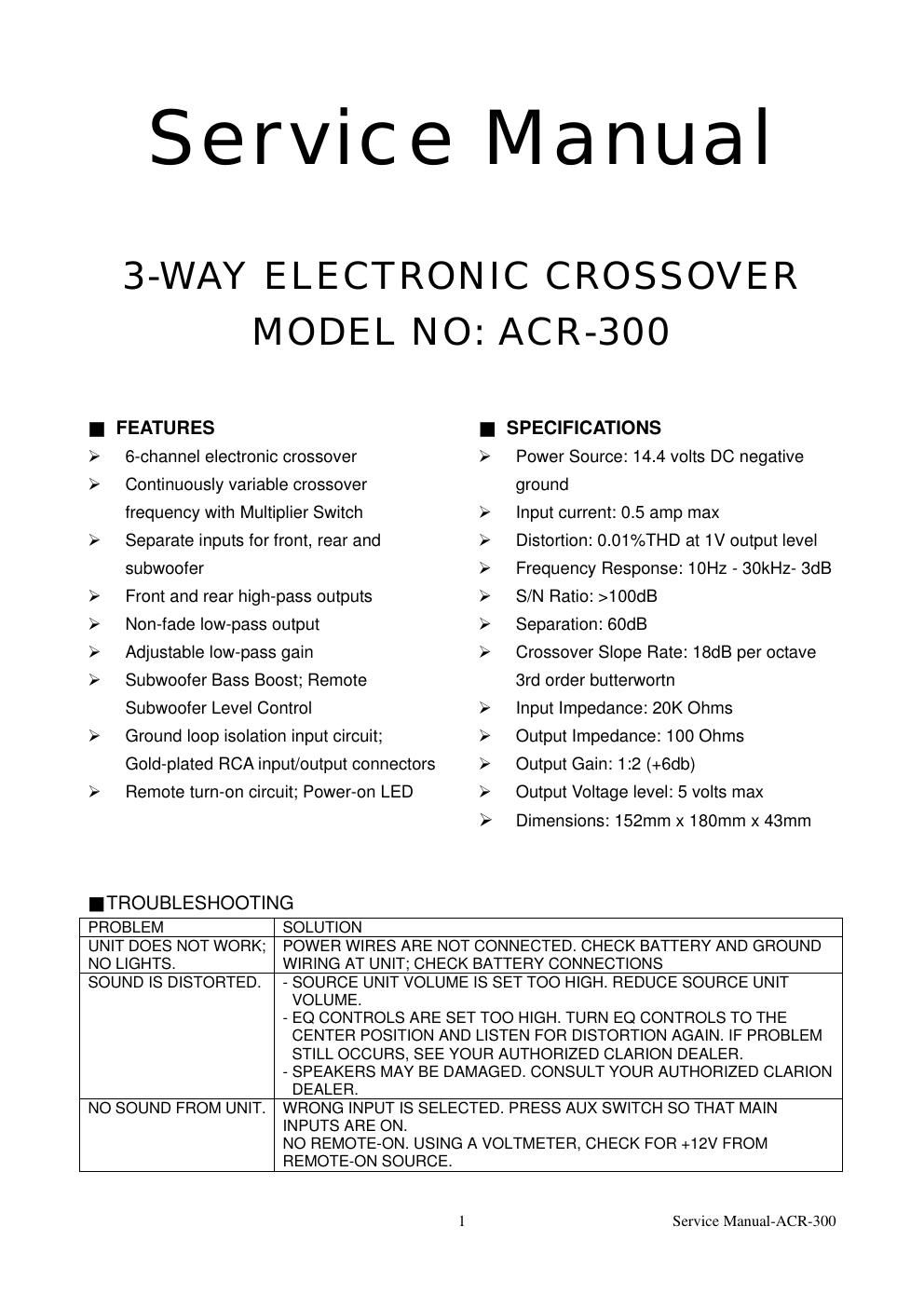

Page 1
Service Manual-ACR-300 2 ¡½ ELECTRICAL PART LIST REF. NUMBER PARTNO Description SPEC Qty Unit C1, C6, C9, C30,C31,C36, C43, C47, C52~C55, C60, C61, C62, C64, C65, C67 02-21001-34 ELE. CAPACITOR 10uf/25V Mini 18 PCS C11C11, C25, C27 03-21030-01 MYLAR CAPACITOR 103J 3 PCS C12, C14, C28, C29, C38, C39, C45, C46, C56, C66 03-22230-01 MYLAR CAPACITOR 223J 10 PCS C13, C18, C19, C21, C22, C26 03-21020-01 MYLAR CAPACITOR 102J 6 PCS C15, C24, C37, C44, C58, C68 02-20220-54 ELE. CAPACITOR 0.22uf/35V Mini 6 PCS C17, C23, C35, C42 04-26800-01 CERAMIC 680P 250V 4 PCS C2, C20 03-23320-01 MYLAR CAPACITOR 332J 2 PCS C3, C4, C10, C34 03-21040-05 Capacitor 104 "K" 50V 5 PCS C32, C40 02-24702-22 ELE. CAPACITOR 470uf/16V 2 PCS C33 02-23302-34 ELE. CAPACITOR 33uf/25V mini 1 PCS C48 02-21003-52 ELE. CAPACITOR 1000uf/35V Slim 1 PCS C49, C51 02-20820-54 ELE. CAPACITOR 0.82uf/35V Mini 2 PCS C5, C16 02-20100-54 ELE. CAPACITOR 0.1uf/35V Mini 2 PCS C50, C59 02-21000-54 ELE. CAPACITOR 1uf/35V Mini 2 PCS C57, C69 02-22200-54 ELE. CAPACITOR 2.2uf/35V Mini 2 PCS C63, C70 04-28200-01 CERAMIC 820P 2 PCS C7, C8 02-21002-24 ELE. CAPACITOR 100uf/16V Mini 2 PCS D1, D2 09-14001-01 DIODE IN4001 1A 50V 2 PCS D3, D4, D5, D6 09-00152-00 F DIODE FR152 4 PCS D7, D8 09-14148-01 DIODE 1N4148 2 PCS D9, D10 19-00298-00 LED red light 3mm pan head B5433B 1 PCS IC1, IC3~IC10 07-00072-01 I.C TL072 9 PCS IC11 07-13600-00 I.C. LM13600N 1 PCS IC2 07-00594-00 I.C. TL594CN 1 PCS J1~J32 01-00007-00 JUMP WIRE leg 7mm 30 PCS L1 20-00106-00 T COIL T044 1 PCS P1~P38 26-00355-00 Jumper wire 3e-WB 1 KIT P39 32-30000-00 TERMINAL BLOCKS HD-83-3P golden 1 PCS Q1, Q2, Q3, Q4, Q6 08-19013-01 T.R 9013 5 PCS Q5 08-19012-01 T.R 9012 1 PCS R1, R2 01-11001-22 RESISTOR 1 ohm 1/2W 2 PCS R10, R16, R21 01-11000-43 RESISTOR 10 ohm 1/4W 3 PCS R103 01-15120-63 RESISTOR 5.1K 1/8W 1 PCS R105 01-11230-63 RESISTOR 12K 1/8W 1 PCS R11, R12, R38, R60, R71, R92 01-11820-63 RESISTOR 1.8 K 1/8W 6 PCS R113, R116, R119, R120, R94 01-14710-63 RESISTOR 470 ohm 1/8W 6 PCS R117, R118 01-11240-63 RESISTOR 120K 1/16W 2 PCS R127 01-12020-63 RESISTOR 2K 1/8W 1 PCS R15, R24 01-13340-63 RESISTOR 330K 1/8W 2 PCS R17, R30, R52, R72, R77, R86 01-12030-63 RESISTOR 20 K 1/8W 6 PCS R18 01-12230-43 RESISTOR 22 K 1/4W 1 PCS R19 01-11230-43 RESISTOR 12 K 1/4W 1 PCS R20, R43 01-14720-43 RESISTOR 4.7 K 1/4W 2 PCS R27, R63, R66, R100 01-11040-63 RESISTOR 100K 1/8W 4 PCS R28, R64, R67, R101 01-11830-63 RESISTOR 18 K 1/8W 4 PCS R3, R29, R49, R50, R80, R87, R88, R108 01-11020-63 RESISTOR 1 K 1/8W 8 PCS R31, R32, R35, R44, R47, R48, R75, R79, R83, R84 , R107, R111, R114, R121 01-11010-63 RESISTOR 100 ohm 1/8W 13 PCS R33 01-16220-43 RESISTOR 6.2K 1/4W 1 PCS R34, R54 01-14730-43 RESISTOR 47 K 1/4W 2 PCS R36, R58, R69, R90, R93, R95 01-19120-63 RESISTOR 9.1 K 1/8W 6 PCS R37, R59, R70, R91 01-13930-63 RESISTOR 39 K 1/8W 4 PCS R4, R5, R39, R40, R51, R55, R56, R57, R68, R73, R74, R85, R96, R97, R98, R102, R106, 01-11030-63 RESISTOR 10 K 1/8W 22 PCS
