Extracted text from pioneer ypm 2106 service manual (Ocr-read)

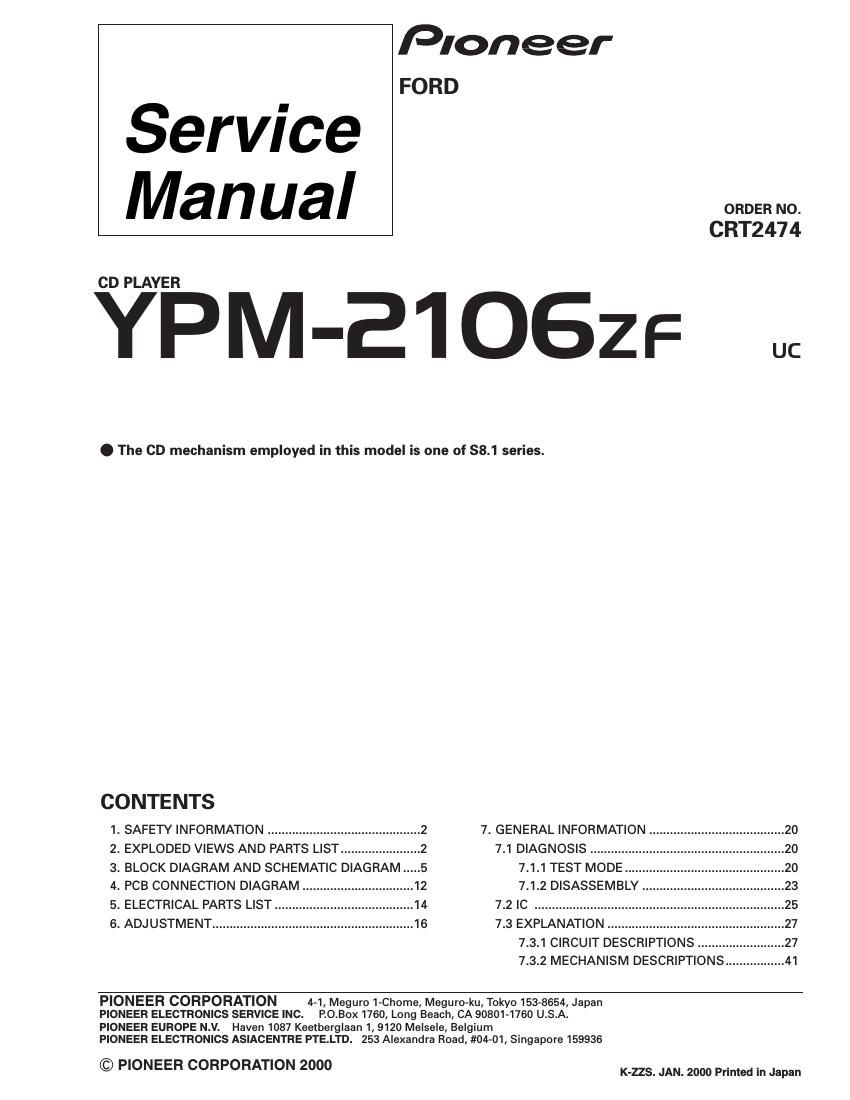

Page 1
2 YPM-2106ZF This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 1. SAFETY INFORMATION 2. EXPLODED VIEWS AND PARTS LIST 2.1 CD MECHANISM
Page 2
3 YPM-2106ZF 1 Control Unit CWX2412 2 Connector(CN802) CKS2192 3 Connector(CN801) CKS2193 4 Connector(CN901) CKS2767 5 Connector(CN101) CKS3486 6 Screw BMZ20P030FMC 7 Screw BSZ20P040FMC 8 Screw(M2x3) CBA1077 9 Screw(M2x6) CBA1489 10 Screw CBA1243 11 Screw(M2x4) CBA1362 12 Washer CBF1037 13 Washer CBF1038 14 Washer CBF1060 15 Spring CBH2372 16 Spring CBH2079 17 Spring CBH2117 18 Spring CBH2314 19 Spring CBH2373 20 Spring CBH2282 21 Spring CBH2318 22 Spring CBH2115 23 Spring CBH2324 24 Spring CBH2118 25 Spring CBH2161 26 Spring CBH2163 27 Spring CBH2189 28 Spring CBH2249 29 Spring CBH2260 30 Spring CBH2262 31 Bracket CNC8568 32 Spring CBL1369 33 Connector CDE5531 34 Connector CDE5532 35 Shaft CLA3304 36 Screw(M2.6x6) CBA1458 37 Frame CNC8682 38 Frame CNC8603 39 Lever CNC8694 40 Arm CNC8663 41 Bracket CNC8567 42 ----- 43 Spacer CNM3315 44 Sheet CNM6659 45 -----46 ----- 47 Ball CNR1189 48 Belt CNT1086 49 Roller CNV4509 50 Arm CNV6102 51 Arm CNV6094 52 Arm CNV5248 53 Arm CNV6095 54 Guide CNV5254 55 Guide CNV5255 56 Gear CNV5257 57 Gear CNV5256 58 Guide CNV6176 59 ----- 60 Arm CNV6096 61 Arm CNV6031 62 Arm CNV5361 63 Guide CNV6012 64 Guide CNV5510 65 ----- 66 Guide CNV5751 67 Clamper CNV6013 68 Gear CNV5813 69 Motor Unit(M1) CXB5827 70 Screw Unit CXB4726 71 Chassis Unit CXB5811 72 Gear Unit CXB4728 * 73 Arm Unit CXB5753 74 Motor Unit(M2) CXB5828 75 Lever Unit CXB4730 76 Arm Unit CXB4731 77 Motor Unit(M3) CXB5829 78 Arm Unit CXB5689 79 Bracket Unit CXB4795 80 Screw JFZ20P025FMC 81 Screw JGZ17P025FZK 82 Washer YE20FUC 83 Pickup Unit(Service)(P8) CXX1285 84 Screw IMS26P030FMC * 85 Gathering PCB CNX2982 86 Photo Transistor(Q1, 2) CPT231SXTU 87 Damper CNV5266 88 Rack CNV6014 89 Spring CBH2315 -CD MECHANISM SECTION PARTS LIST Mark No. Description Part No.Mark No. Description Part No. NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to ∇mark on the product are used for disassembly.
