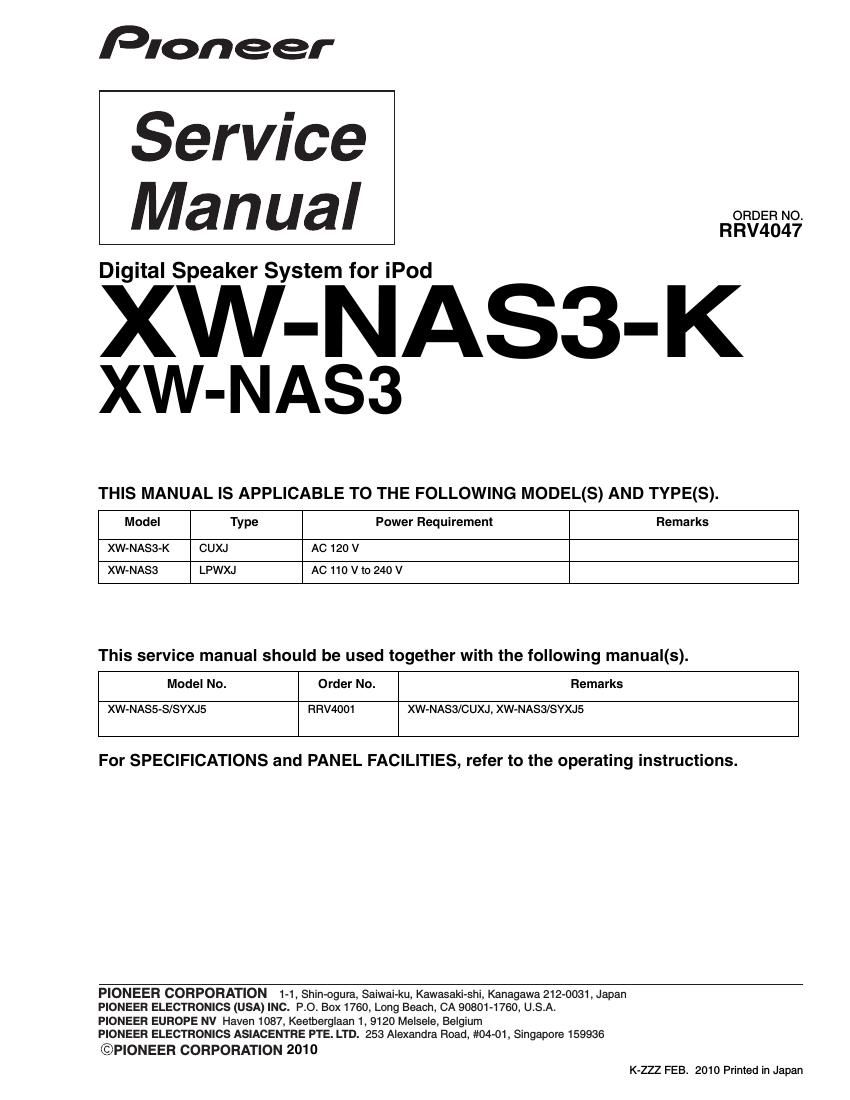

Pioneer xwnas 3 k service manual
This is the 3 pages manual for pioneer xwnas 3 k service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xwnas 3 k service manual (Ocr-read)
Page 1
2 XW-NAS3-K 1 2 3 4 A B C D E F 1 2 3 4 1. CONTRAST OF MISCELLANEOUS PARTS 1.1 CONTRAST TABLE FOR XW-NAS3-K/CUXJ XW-NAS3/CUXJ and XW-NAS3-K/CUXJ are constructed the same except for the following: Notes : * Refer to "9.1 XW-NAS5". Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of\ the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 61 473 R50 1R0 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 RN1/4PC F 562 x 10 1 5621 5 26 1 Mark No. Symbol and Description XW-NAS3/CUXJ XW-NAS3-K/CUXJ Remarks PACKING SECTION P43-2 Wiping Cloth XED3008 Not used P43-4 Remote Control Holder XAK3698 XAK3693 P43-7 Operating Instructions (En, Frca, Es) XRE3256 ARE7647 P43-9 Color Label XAX3821 Not used P43-11 Packing Sheet AHG7069 AHG7137 P43-16 PC NSA XHD3960 AHD8707 NSP P43-19 Getter Stand XAX3815 Not used NSP Top Protection Sheet Not used XEC3114 *P31-14 NSP BL Protection Sheet Not used XEC3115 *P31-15 NSP BR Protection Sheet Not used XEC3116 *P31-16 EXTERIOR SECTION P45-2 Bottom Assy XXG3490 XXG3470 NSP P45-28 LabeL NSA XAL3363 AAL7445 NSP P45-29 FCC Label XAX3852 XAX3842 TOP PANEL SECTION NSP P53-15 Button Assy XXG3454 XXG3456 P53-16 Top Assy XXG3485 AXG7429 NSP P53-29 Top Cover XMB3390 XMB3401 P53-30 Door Panel XMB3396 XMB3404
Page 2
3 XW-NAS3-K 5 6 7 8 5 6 7 8 A B C D E F 1.2 CONTRAST TABLE FOR XW-NAS3/LPWXJ XW-NAS3/SYXJ5 and XW-NAS3/LPWXJ are constructed the same except for the following: Notes : For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES. CONTRAST OF PCB ASSEMBLIES A F NSA SYSMAIN ASSY XWM3534 and XWM3538 are constructed the same except for the following: * : Refer to the *2 DESTINATION parts of 10.1 NSA SYSMAIN ASSY (1/2) on the service manual RRV4001.Mark No. Symbol and Description XW-NAS3/SYXJ5 XW-NAS3/LPWXJ Remarks PACKING SECTION P43-5 Operating Instructions (De, It, Nl, Ru) XRC3477 Not used P43-6 Operating Instructions (En, Fr, Es) XRE3255 Not used Operating Instructions (En, Es, Zntw) Not used XRE3261 NSP P43-8 Warranty Card ARY7128 Not used P43-16 PC NSA XHD3959 XHD3961 NSP P43-18 Label (WEEE) ARW7322 Not used EU Battery Label CB ARW7382 Not used NSP Polyethylene Bag Not used AHG7033 For Power Cord > Power Cord Not used ADG7099 Accessories > Power Cord Not used XDG3033 Service parts EXTERIOR SECTION NSP P45-28 LabeL NSA XAL3350 XAL3352 P45-29 SISIR Label Not used XAX3831 BASE CHASSIS SECTION P49-1 NSA SYSMAIN Assy XWM3534 XWM3538 ADG7099 for Austrarian and New ZealandADG1127 for Others XDG3033 for Others Mark Symbol and Description XWM3534 XWM3538 Remarks R4030 Not used RS1/16SS473J * R4031 RS1/16SS473J Not used *
