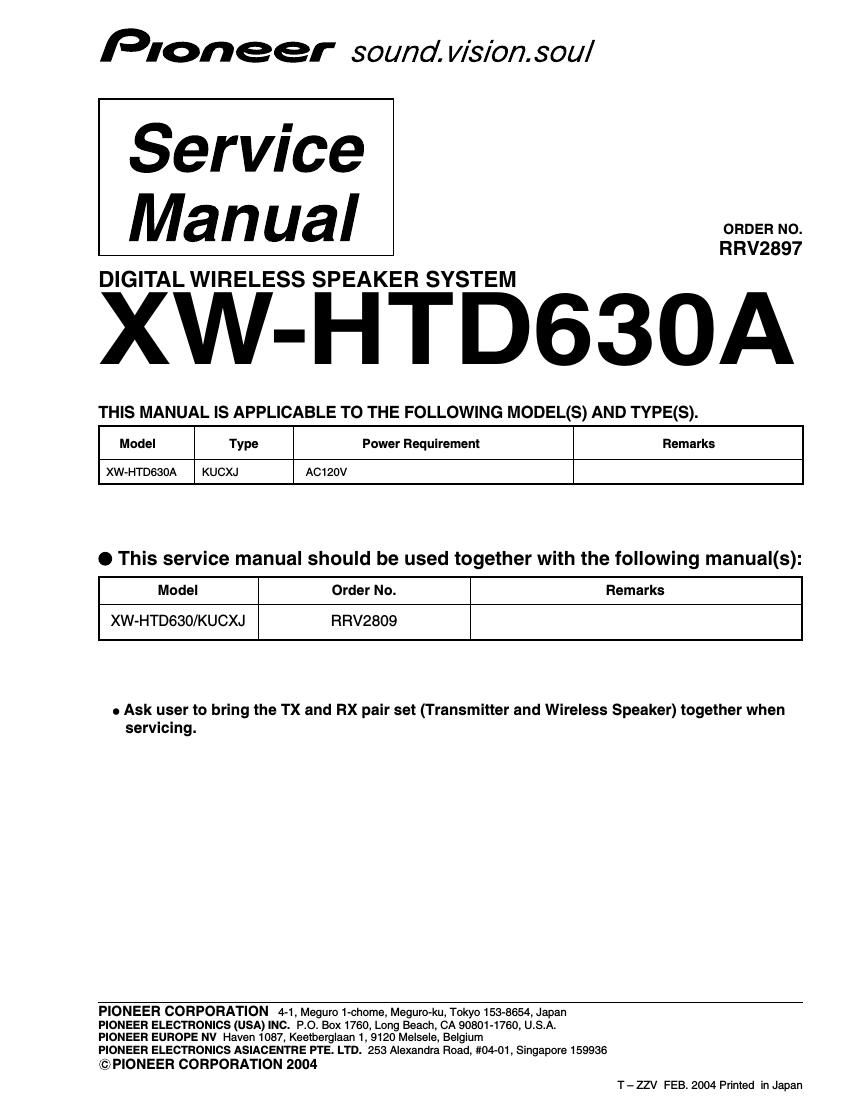

Pioneer xwhtd 630 a service manual

Page 1

2 1 23 4 1234 C D F A B E XW-HTD630A 1. CONTRAST OF MISCELLANEOUS PARTS jpfy For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: -When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω→56 × 10 1 →561 ........................................................ RD1/4PU 5 6 1 J 47k Ω→47 × 10 3 →473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω→R50 ..................................................................................... RN2H R 5 0 K 1 Ω→1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω→562 × 10 1→5621 ...................................................... RN1/4PC 5 6 2 1 F 7 CONTRAST TABLE XW-HTD630A/KUCXJ and XW-HTD630/KUCXJ are constructed the same except for the following: PACKING P7 - 5 Operating Instructions (English/French) ARC7475 ARE7344 P7 -12 Packing Case AHD8215 AHD8280 TRANSMITTER SECTION P9 - 9 NSP Name Label T AAL7330 AAL7348 WIRELESS SPEAKER SECTION P11-26 Primary Barrier AEC7476 AEC7490 P11-52 NSP Name Label AAL7322 AAL7347 P11-56 65 Label ARW7050 Not used Ref. No.Remarks XW-HTD630/KUCXJ XW-HTD630A/KUCXJ Part No. Mark Symbol and Description
