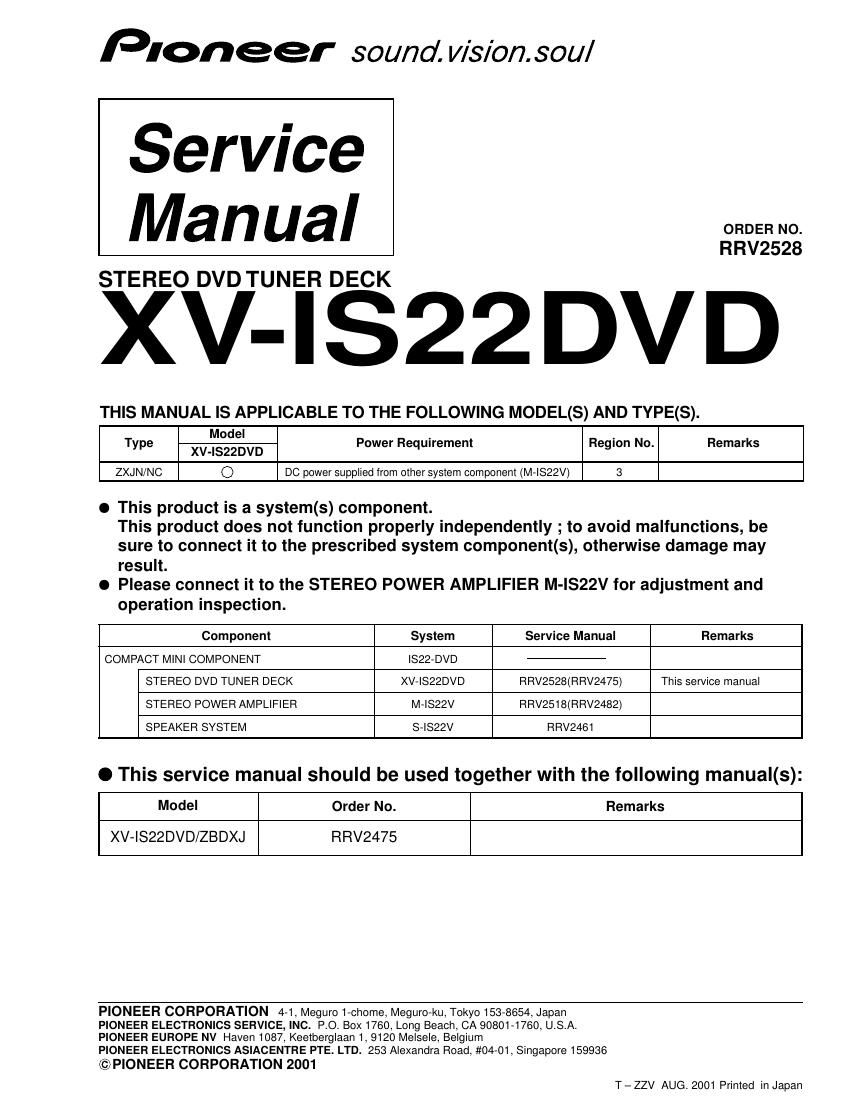

Pioneer xvis 22 dvd service manual

Page 1

2 XV-IS22DVD 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 PACKING SECTION P3-2 Operating Instructions (English/Chinese) XRE3045 Not used Operating Instructions(Thai) Not used XRC3052 P3-10 Packing Case M XHD3179 XHD3286 EXTERIOR SECTION P5-15 Rear Panel XNC3115 XNC3157 P5-16 CD Door Lens XAK3188 XAK3300 P5-28 Play Button XAD3097 XAD3145 P5-29 Float Base XMR3021 XMR3045 P5-30 Jack Door XAN3030 XAN3045 P5-32 NSP Chassis M XNA3007 XNA3009 P5-37 CD Door XAN3040 XAN3044 P5-44 NSP Name Label XAL3084 XAL3086 FRONT PANEL ASSY SECTION P7-12 Side Button L XAD3082 XAD3142 P7-13 Side Button R XAD3083 XAD3143 P7-17 O/C Key Base XAK3189 XAK3301 P7-18 Display Window XAK3190 XAK3302 P7-21 Front Panel DVD XMB3055 XMB3079 P7-29 Ring Button XAD3098 XAD3144 Ref. No.Remarks XV-IS22DVD XV-IS22DVD /ZBDXJ /ZXJN/NCPart No. Mark Symbol and Description CONTRAST TABLE XV-IS22DVD/ZXJN/NC and XV-IS22DVD/ZBDXJ are constructed the same except for the following:
