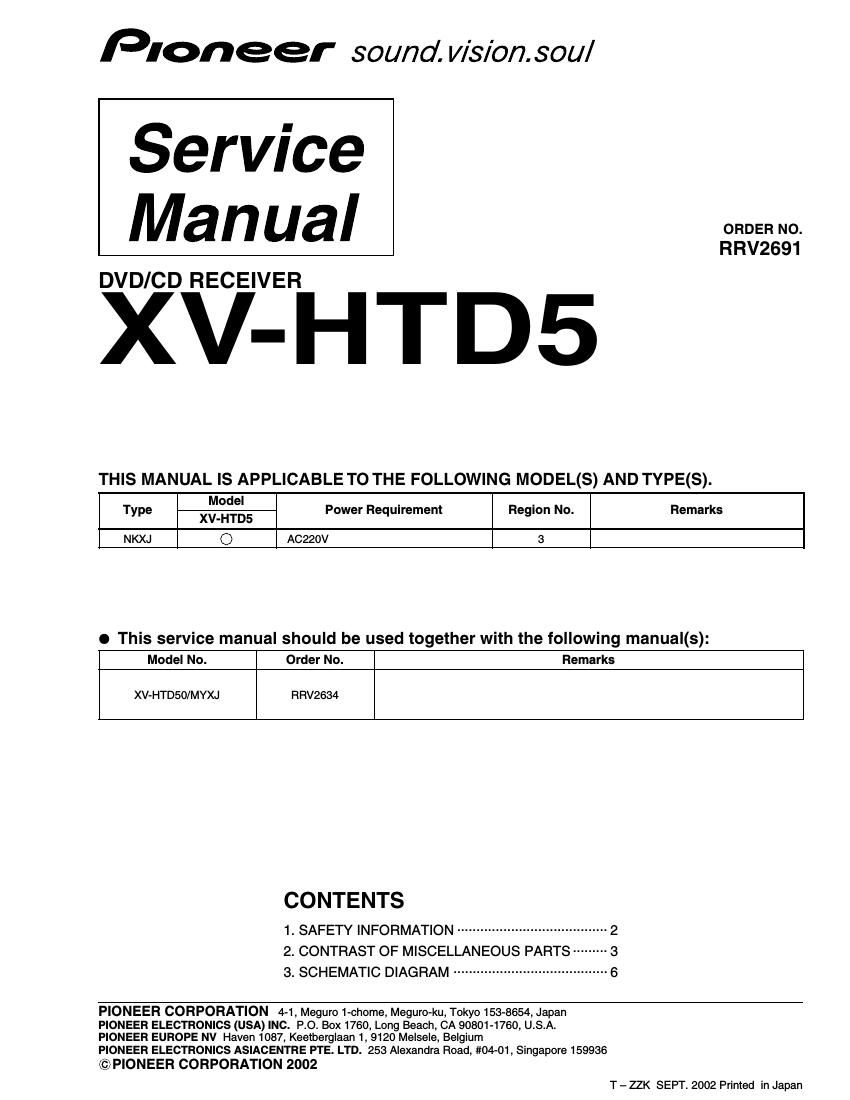

Pioneer xvhtd 5 service manual
This is the 13 pages manual for pioneer xvhtd 5 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xvhtd 5 service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E XV-HTD5 WARNING THE AEL(ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 655 nm FOR CD : MAXIMUM OUTPUT POWER : 5mW WAVELENGTH : 785 nm Additional Laser Caution 1. Inside detection switch (S201 on the SMEB assy) and clamp- status detection switch (S11 on the TRSB assy) are detected by the microprocessor (IC11 in the DVDM assy). - To permit the laser diode to oscillate, it is required to set the inside detection switch for the inside position (S201 : ON) and to set the loading-status detection switch for the clamp position (the center terminal of S11 is shorted to +5V). The 655 nm laser diode for DVD oscillation will continue if pin 19 of IC1 is shorted to +5V (fault condition) in the DVDM assy. The 785 nm laser diode for CD oscillates if pin 20 of IC1 is shorted to +5V in the DVDM assy. In the test mode ∗ , the laser diode oscillates when microproces- sor detects a PLAY signal, or when the PLAY key is pressed (S5817 ON in the KEYB assy), with the above requirements sat- isfied. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. ∗ : Refer to page 81 on service manual RRV2634. LABEL CHECK Printed on the Rear Panel 1. SAFETY INFORMATION
Page 2
3 1 234 1 23 4 C D F A B E XV-HTD5 2. CONTRAST OF MISCELLANEOUS PARTS jpfy For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: -When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω→56 × 10 1 →561 ........................................................ RD1/4PU 5 6 1 J 47k Ω→47 × 10 3 →473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω→R50 ..................................................................................... RN2H R 5 0 K 1 Ω→1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω→562 × 10 1→5621 ...................................................... RN1/4PC 5 6 2 1 F CONTRAST TABLE XV-HTD5/NKXJ and XV-HTD50/MYXJ are constructed the same except for the following : Part No. Ref. No. Mark Symbol and Description XV-HTD50 XV-HTD5 Remarks /MYXJ /NKXJ PCB ASSEMBLIES P9- 2 MAIN ASSY XWX3056 XWX3059 P9- 3 CONNECT ASSY XWX3061 XWX3063 NSP COMPLEX ASSY XWM3202 XWM3205 P9- 5 PRIMARY ASSY XWZ3589 XWZ3592 P9- 7 F. AMP ASSY XWZ3596 XWZ3598 P9- 8 R. AMP ASSY XWZ3600 XWZ3602 P9- 9 SPEAKER ASSY XWZ3604 XWZ3605 P9-11 DISPLAY ASSY XWZ3606 XWZ3607 P11- 1 HP MIC ASSY XWZ3609 XWZ3611 PACKING SECTION P7- 1 Power Cord ADG1154 DDG1086 P7- 8 Operating Instructions (English) XRB3016 Not used P7- 9 NSP Warranty Card ARY7022 Not used P7-14 Packing Case XHD3299 XHD3300 P7-15 Operating Instructions (French/Italian/German) XRC3062 Not used P7-16 Operating Instructions (Dutch) XRC3063 Not used P7-17 Operating Instructions (Spanish) XRC3064 Not used Operating Instructions (Korean) Not used XRC3067 Region Label (For Packing Case) Not used VRW1702 EXTERIOR SECTION P9-17 4P F.F.C/60V XDD3109 Not used P9-17 7P F.F.C/60V Not used XDD3110 P9-24 Rear Panel XNC3165 XNC3170 P9-49 Caution Label VRW1699 VRW1886 P9-54 NSP Getter XAX3324 XAX3325 Round Knob S Not used XAB3022 No. 1 NSP K Mark Label Not used XAX3327 FRONT PANEL SECTION P11-12 NSP Front Panel Assy XXG3126 XXG3127 P11-13 Display Panel XAK3340 XAK3341 P11-16 Front Panel XMB3087 XMB3088 Notes : For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES and 2. SCHEMATIC DIAGRAM. The numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS .
