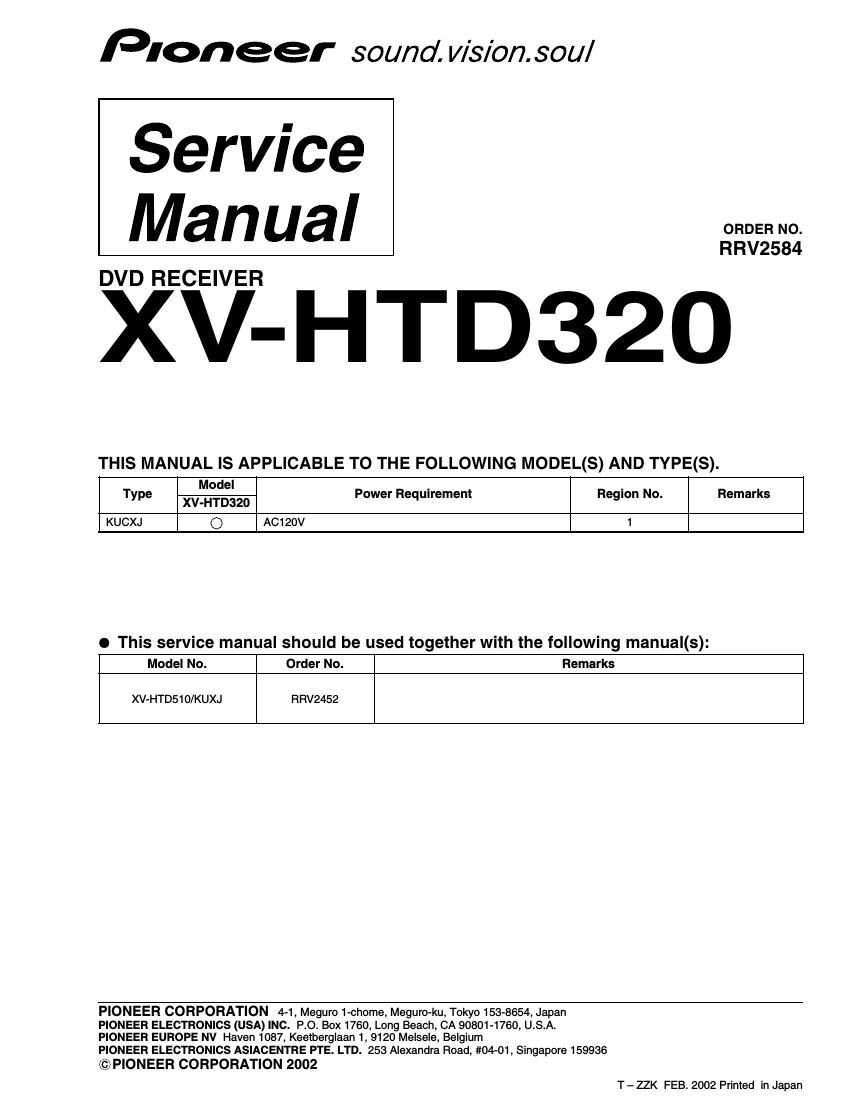

Pioneer xvhtd 320 service manual

Page 1

XV-HTD320 2 Part No. Ref. No. Mark Symbol and Description XV-HTD510 XV-HTD320Remarks /KUXJ /KUCXJ PACKING SECTION P3- 3 Video Cord (L=1.5m) VDE1053 VDE1065 P3- 4 Remote Control Unit XXD3033 XXD3032 P3- 9 Packing Case XHD3171 XHD3298 P3-13 Operating Instructions (English) XRB3009 Not used P3-14 Operating Instructions (English, French) Not used XRE3061 EXTERIOR SECTION NSP Energy Star Label Not used AAX7876 NSP Name Label Not used XAL3119*1 NSP UPC Label Not used XAX3322 FRONT PANEL SECTION P6- 5 NSP Front Panel Assy XXG3070 XXG3125 P6- 7 Display Panel XAK3213 XAK3337 1. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE XV-HTD320/KUCXJ and XV-HTD510/KUXJ are constructed the same except for the following : *1 Stick Name Label on the Rear Panel. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES:
