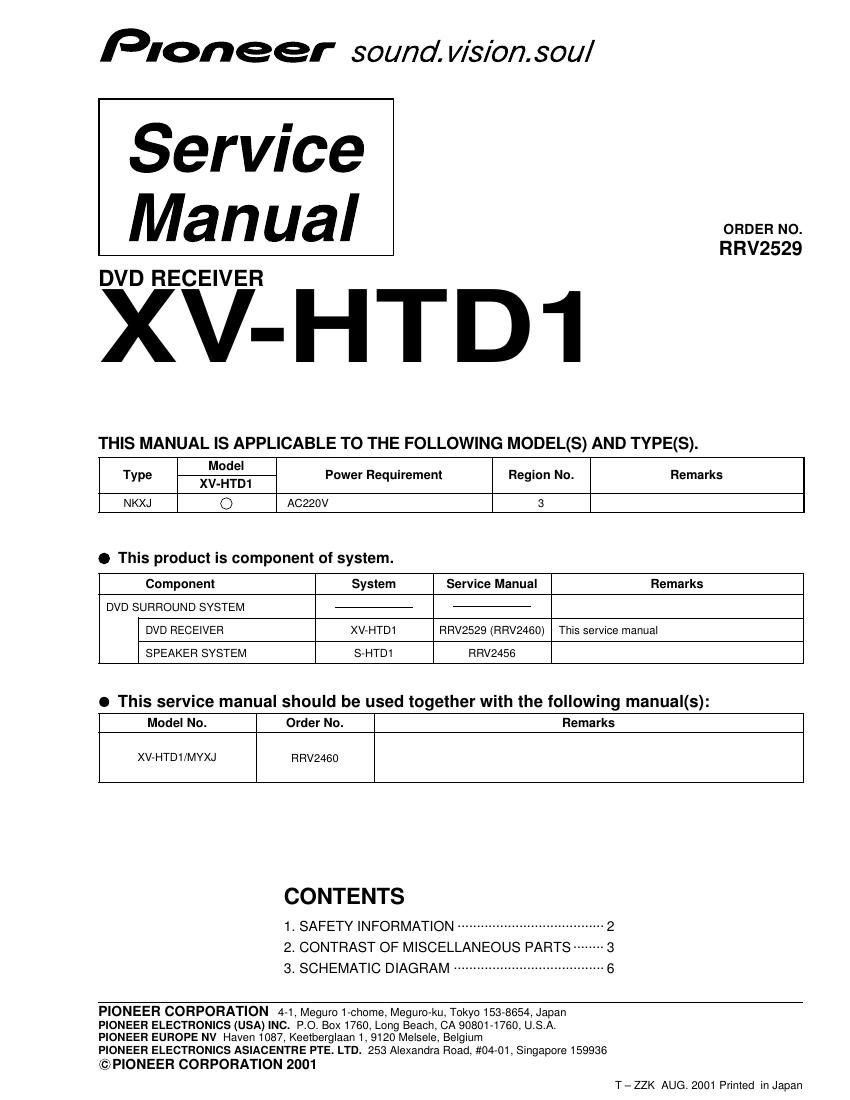

Pioneer xvhtd 1 service manual

This is the 12 pages manual for pioneer xvhtd 1 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 12
pioneer xvhtd 1 service manual

Extracted text from pioneer xvhtd 1 service manual (Ocr-read)


Page 1

XV-HTD1 2 Printed on the Rear Panel 1. SAFETY INFORMATION WARNING THE AEL(ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 655 nm FOR CD : MAXIMUM OUTPUT POWER : 5mW WAVELENGTH : 785 nm Additional Laser Caution 1. Inside detection switch (S201 on the SMEB assy) and clamp- status detection switch (S11 on the TRSB assy) are detected by the microprocessor (IC11 in the DVDM assy). - To permit the laser diode to oscillate, it is required to set the inside detection switch for the inside position (S201 : ON) and to set the loading-status detection switch for the clamp position (the center terminal of S11 is shorted to +3.3V). The 655 nm laser diode for DVD oscillation will continue if pin 19 of IC1 is shorted to +5V (fault condition) in the DVDM assy. The 785 nm laser diode for CD oscillates if pin 20 of IC1 is shorted to +5V in the DVDM assy. In the test mode ∗ , the laser diode oscillates when microproces- sor detects a PLAY signal, or when the PLAY key is pressed (S5817 ON in the KEYB assy), with the above requirements sat- isfied. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. ∗ : Refer to page 74 on service manual RRV2460. LABEL CHECK

Page 2

XV-HTD1 3 2. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description XV-HTD1 XV-HTD1 Remarks /MYXJ /NKXJ PCB ASSEMBLIES NSP COMPLEX ASSY XWM3188 XWM3192 P5- 2 PRIMARY ASSY XWZ3433 XWZ3437 P5- 3 FRONT AMP ASSY XWZ3439 XWZ3441 P5- 4 REAR AMP ASSY XWZ3443 XWZ3445 P5- 6 MIC HP ASSY XWZ3451 XWZ3452 NSP CONNECT ASSY XWM3194 XWM3196 P5- 7 INPUT ASSY XWZ3456 XWZ3458 P5- 9 MAIN ASSY XWX3031 XWX3043 P5-10 DSP ASSY XWX3040 XWX3041 PACKING SECTION P3- 1 Power Cord ADG1154 DDG1086 P3- 9 Packing Case XHD3193 XHD3194 P3-12 NSP Warranty Card ARY7022 Not used P3-13Operating Instructions (English)XRB3006 Not used P3-14Operating Instructions (French/German/Italian)XRC3034 Not used P3-16Operating Instructions (Dutch/Swedish/Portuguese)XRC3035 Not used P3-17Operating Instructions (Spanish)XRC3036 Not used Operating Instructions (Korean) Not usedXRC3039 Region Label (For Packing Case ) Not used VRW1702 EXTERIOR SECTION P5-18 5P F.F.C/60V XDD3093 Not used P5-18 8P F.F.C/60V Not used XDD3092 P5-22 Rear Panel XNC3098 XNC3105 P5-37 Caution Label VRW1699 VRW1886 Mic Knob Not used XAB3014 No. 1 FRONT PANEL SECTION P6- 5 NSP Front Panel Assy XXG3072 XXG3073 P6- 6 Front Cap XAK3212 XAK3211 P6- 7 Display Panel XAK3214 XAK3215 XV-HTD1/NKXJ and MYXJ are constructed the same except for the following : Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 Notes : For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES and 3. SCHEMATIC DIAGRAM. The numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS .
