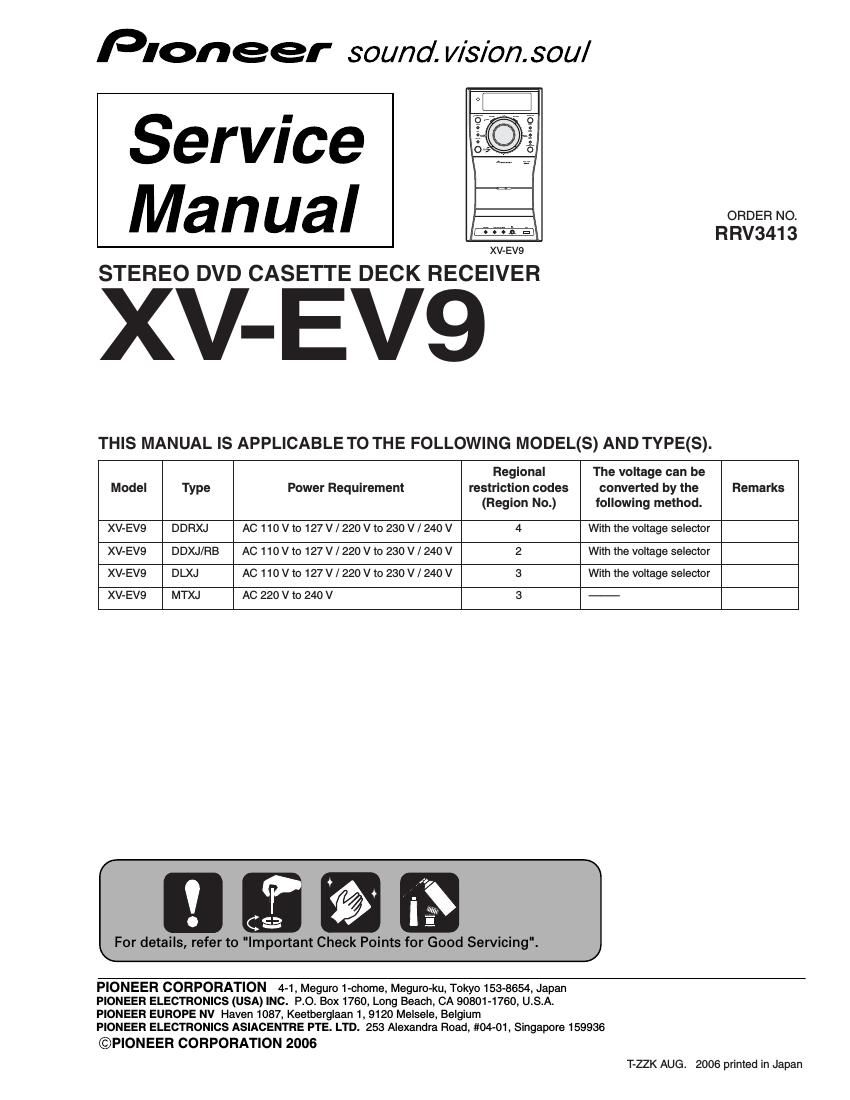

Page 1

Pioneer sound. vision. soul

Service
Manual $33212,-

XV~EV9

STEREO DVD CASETTE DECK RECEIVER

XV- EV9

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL($) AND TYPE(S).

If

l

Regional The voltage can be
Model Type Power Requirement restriction codes converted by the Remarks
(Region No.) following method.
XV-EV9 DDRXJ AC 110 V to 127 V / 220 V to 230 V / 240 V 4 With the voltage selector
XV-EV9 DDXJ/RB AC 110 V to 127 V I220 V to 230 V / 240 V 2 With the voltage selector
XV-EV9 DLXJ AC 110 V to 127 V / 220 V to 230 V / 240 V 3 With the voltage selector
XV-EV9 MTXJ AC 220 V to 240 V 3 -

[IE-

For details, refer to Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2006
T-ZZK AUG. 2006 printed in Japan

Page 2

O

SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-
it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this
manual.lmproperly performed repairs can adversely affect the safety and reliability of the product
and may void the warranty. If you are not qualified to perform the repair of this product properly and
safely, you should not risk trying to do so and refer the repair to a qualified service technician.

- WARNING I

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1
BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR
CLASS 1.

A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS.

LASER DIODE CHARACTERISTICS
FOR DVD: MAXIMUM OUTPUT POWER : 6 mW
WAVELENGTH : 650 nm
FOR CD: MAXIMUM OUTPUT POWER : 7 mW

WAVELENGTH : 780 nm

LABEL CHECK mm mnmwmmmmmmmmm

AWEHMIXI mmmmnlmwnsmnmn
unwarrjvllumvrmm All mm.

mu him no mm mm mum
ADVAIRSEIL m m.

VARMIme IKim:- mmwmmmmmmnsmm

mm. mm A" unhmmm m.
WIREEIHIT aammmmmum minimum:-
lummuumvowm. um um WI
PRECAUCION wummmmmxmumsmlu Mr: M
EXPOIWA ml mu m
vamp! luau-rm mgr MmmA mm umnmuumu :- wen-hum

CLASS 1 mm m1

LASER PRODUCT

VRW2257

Printing on Rear Panel

Additional Laser Caution

1. Laser Interlock Mechanism
- Loading switch (8101 on the LOAB Assy) is used for interlock
mechanism of the laser.
When this switch turned ON in SW2 (CLOSE) side (OPEN signal is
0V and CLOSE signal is 3.5V), a laser becomes the status which can
completely oscillation.
Furthermore, the laser completely oscillates in the disc judgment and
disc playback.
When player is power ON state and laser diode is not completely
oscillating, 780nm laser diode is always oscillating by half power.
I Laser diode is driving with 0307 (650nm LD) and 0308 (780nm LD)
on the DVDM Assy.
Therefore, when short~circuit between the emitter and collector of these
transistors or the base voltage is supplied for transistors turn on, the
laser oscillates. (failure mode)
- In the test mode * , there is the mode that the laser oscillates except
forthe disc judgment and playback. LD ON mode in the test mode
oscillates with the laser forcibly.
The interlock mechanism mentioned above becomes invalid in this
mode.

2. When the cover is open, close viewing through the objective lens with
the naked eye will cause exposure to the laser beam.

* : Refer to page 85.

2 XV-EVQ
