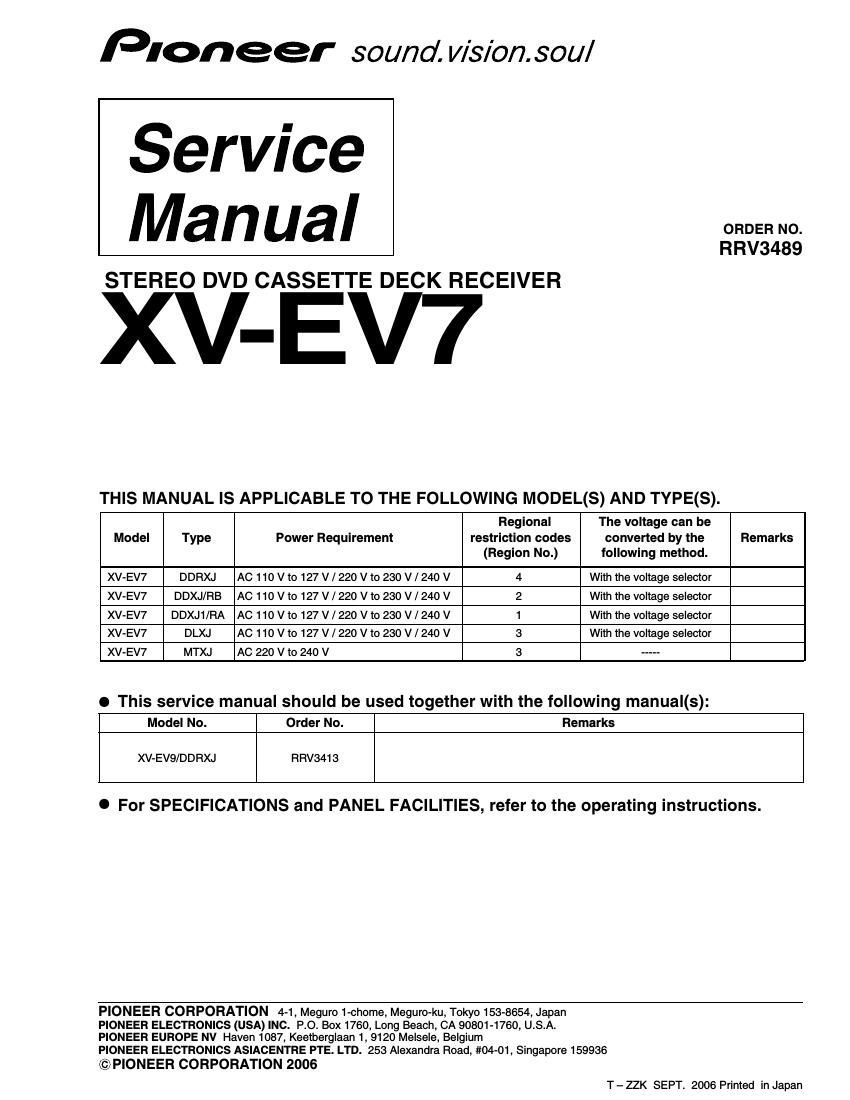

Page 1

Pioneer sound. vision. soul

Service
Manual

RRV3489
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Regional The voltage can be
Model Type Power Requirement restriction codes converted by the Remarks
(Region No.) following method.

XV-EV7 DDRXJ AC 110 V to 127 V / 220 V to 230 V / 240 V 4 With the voltage selector
XV-EV7 DDXJ/RB AC 110 V to 127 V / 220 V to 230 V / 240 V 2 With the voltage selector
XV-EV7 DDXJ1/RA AC 110 V to 127 V / 220 V to 230 V / 240 V 1 With the voltage selector
XV-EV7 DLXJ AC 110 V to 127 V / 220 V to 230 V / 240 V 3 With the voltage selector
XV-EV7 MTXJ AC 220 V to 240 V 3 -----

0 This service manual should be used together with the following manual(s):
Model No. Order No. Remarks

XV-EV9/DDRXJ FIRV3413

O For SPECIFICATIONS and PANEL FACILITIES, refer to the operating instructions.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. F'.O. BOX 1760, Long Beach, CA 90801-1760, USA.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2006
T - ZZK SEPT. 2006 Printed in Japan

Page 2

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES: 0 Parts marked by NSF are generally unavailable because they are not in our Master Spare Parts List
I The /I\ mark found on some component parts indicates the importance of the safety factor of the part
Therefore, when replacing, be sure to use parts of identical designation.
0 Screws adjacent to Y mark on product are used for disassembly.
I Reference Nos. indicate the pages and Nost in the service manual for the base model.
0 For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate)
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples
ELI When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%)t
56051 -> 56><10I -) 561t
47k!) -) 47x10} -> 473t
05 9 -> R50
1 9 -> 1R0 a
552 When there are 3 efiective digits (such as in high precision metalfilm resistors)
5621:!) -> 562 X 10 -> 5621 t.

l CONTRAST TABLE
XV-EV7/DFXJ, DDRXJ, DDXJ1/RA, DDXJ/RB, DTXJ and DLXJ/NC are constructed the same except for the following :
Part No.
No. Mark Symbol and Description XV-EV9 XV-EV7 XV-EV7 XV-EV7 XV-EV7 XV-EV7 Remarks
IDDRXJ /DDRXJ lDDXJ1/RA lDDXJ/FIB IDLXJ IMTXJ
PCB ASSEMBLIES
P9- 2 NSP MAIN ASSY XWK3254 XWK3251 XWK3251 XWK3252 XWK3251 XWK3253
P9- 3 NSP EVOL ASSY XWK3261 XWK3260 XWK3260 XWK3260 XWK3260 XWK3260
NSP SUB ASSY XMM3320 XMM3320 XMM332O XMM3320 XMM3320 XMM3321
P9- 4 L PRIMARY ASSY XWZ4146 XWZ4146 XWZ4146 XWZ4146 XWZ4146 XWZ4150
PACKING SECTION
P7- 2 NSP Getter Label XAX3588 XAX3588 XAX3554 XAX3586 XAX3586 XAX3586
P7» 5 NSP Polyethylene Bag AHG7033 AHG7033 AHG7033 Not used Not used Not used
P7- 6 NSP Polyethylene Bag Not used Not used Not used Not used Not used AHG7031
P7- 8 NSP Dry Cell Batteries(AA/Fl6) XEX3001 XEX3001 VEM1031 XEX3001 XEX3001 XEX3001
P7- 10 A AC Power Cord XDG3009 XDG3009 XDG3033 Not used Not used Not used
P7- 11 A Power Plug Adapter XKM3001 XKM3001 Not used Not used Not used Not used
P7- 12 Operating Instructions (English) XRB3061 XRB3061 XR83061 XRB3062 XRB3061 Not used
P7- 13 Operating Instructions (Spanish) XR03232 XR03232 XR03232 Not used Not used Not used
P7- 13 Operating Instructions (Arabic) Not used Not used Not used XFIC3234 Not used Not used
P7- 13 Operating Instructions (Chinese) Not used Not used Not used Not used XR03231 Not used
P7- 13 Operating Instructions (Thai) Not used Not used Not used Not used Not used XRC3233
P7- 14 NSP Warranty Card (Thai) Not used Not used Not used Not used Not used XFIY3004
P7- 15 NSP Service Map (Thai) Not used Not used Not used Not used Not used XRY3005
P7- 16 Caution Sheet AR XFIH3002 XFIH3002 Not used Not used Not used Not used
P7- 22 Packing Case XHD3648 XHD3642 XHD3643 XHD3644 XHD3641 XHD3646
P7- 24 NSP DF Label AAX7960 AAX7960 AAX7960 Not used Not used Not used
NSP Warranty Card PX Not used Not used ARY7025 Not used Not used Not used
AC Power Cord Not used XDG3033 Not used Not used Not used Not used
Caution Sheet Not used XFIM3011 Not used Not used Not used Not used
EXTERIOR SECTION
P9- 19 Rear Panel XNC3443 XNC3437 XNC3438 XNC3439 XNC3424 XNC3441
FRONT PANEL SECTION
P13- 12 NSP FRONT PANEL ASSY XXG3275 XXG3274 XXG3260 XXG3274 XXG3274 XXG3274
P13- 22 MIDDLE PANEL XAK3543 XAK3541 XAK3541 XAK3541 XAK3541 XAK3541
P13- 30 FRONT PANEL ASSY XZN3189 XZN3187 XZN3187 XZN3187 XZN3187 XZN3187

Notes : For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES.

2 XV-EV7

1 I 2 I 3 I 4
