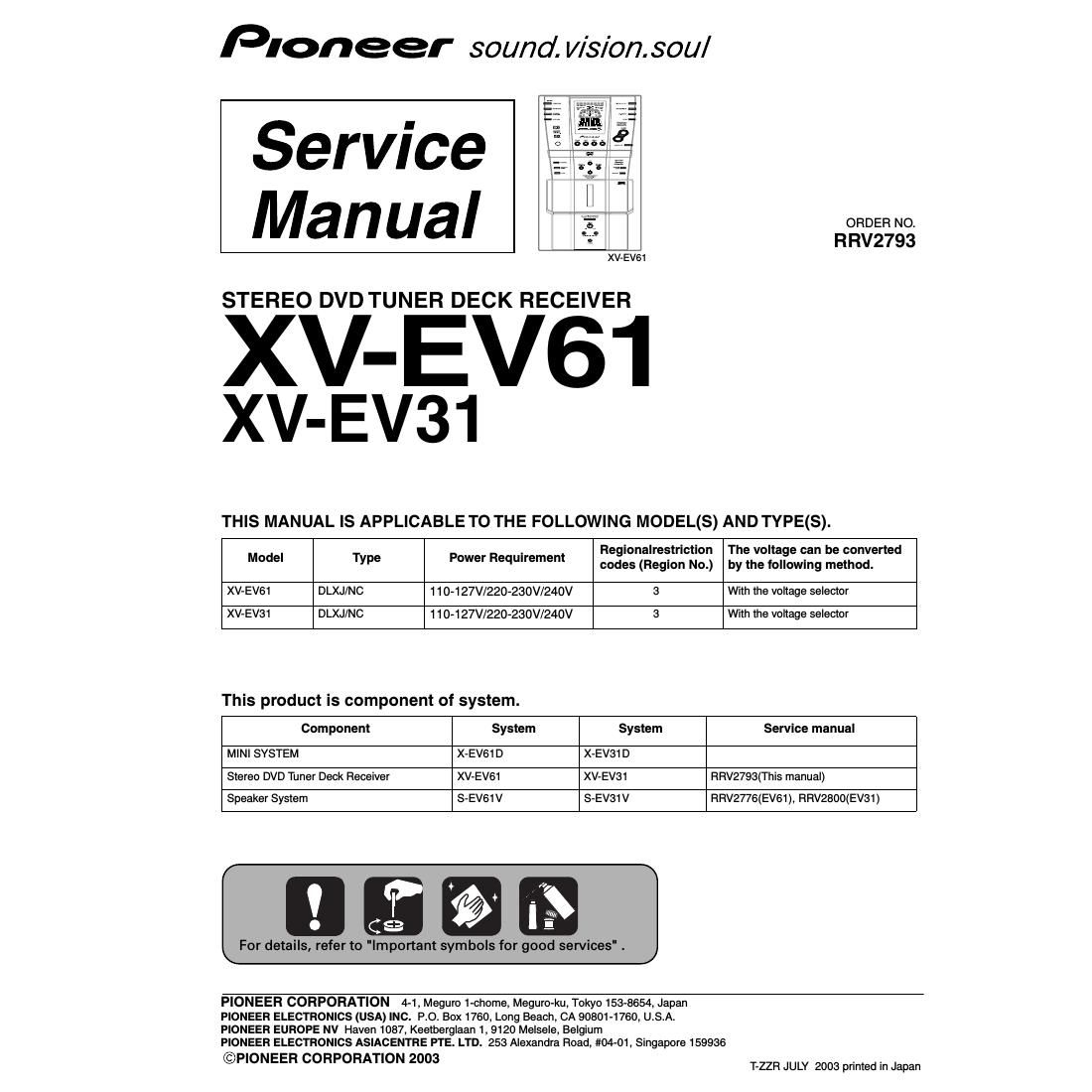

Pioneer xvev 61 service manual
This is the 164 pages manual for pioneer xvev 61 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xvev 61 service manual (Ocr-read)
Page 1
XV-EV61 2 1234 1234 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do- it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm FOR CD : MAXIMUM OUTPUT POWER : 7 mW WAVELENGTH : 780 nm Additional Laser Caution ∗ : See page 107 1. Laser Interlock Mechanism -Loading switch (S101 on the LOAB Assy) is used for interlock mechanism of the laser. When this switch turned ON in SW2 (XCLOSE) side (OPEN signal is 0V and XCLOSE signal is 3.5V), a laser becomes the status which can completely oscillation. Furthermore, the laser completely oscillates in the disc judgment and disc playback. When player is power ON state and laser diode is not completely oscillating, 780nm laser diode is always oscillating by half power. - Laser diode is driving with Q101 (650nm LD) and Q102 (780nm LD) on the DVDM Assy. Therefore, when short-circuit between the emitter and collector of these transistors or the base voltage is supplied for transistors turn on, the laser oscillates. (failure mode) - In the test mode ∗ , there is the mode that the laser oscillates except for the disc judgment and playback. LD ON mode in the test mode oscillates with the laser forcibly. The interlock mechanism mentioned above becomes invalid in this mode. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. LABEL CHECK XV-EV61/DLXJ/NC(Printed on the Rear Panel B) SOUND MODE ADVANCED SURROUND SURROUND STANDBY/ON ST. MEMORY TIMER/CLOCK ADJ SYSTEM DISPLAY ENTERTIMER KARAOKEVOLUME STEREO DVD CASSETTE DECK RECEIVER EV61 DVD FULL LOGIC AUTO REVERSE STEREO CASSETTE DECK DVD/CD TUNER TAPE LINE OPEN/CLOSE DOLBY NR (DEMO) ASES MIC VOL PHONES MAX MIN MAIN MIC SUB REVERSE MODE REC/STOP PUSH OPEN TUNING –TUNING +4 1 7 3/8 ¡ ¢ PGM ADV . S URR. SFC 96kHz LINE RECRDMRPT– 1MONO RDS TUNEDSTEREOSUB WfNRB. CUT RECASESREC WA K E– UP KARAOKE L R ECHO KEYP R O L O G I CD I G I T A L
Page 2
XV-EV61 3 5678 567 8 C D F A B E [ Important symbols for good services ]In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. Discs compatible with this player Any disc that displays one of the following logos should play in this player. Other formats, including DVD-Audio, DVD-RAM, DVD-ROM, CD-ROM (except those that contain MP3 and WMA files), SACD will not play. Audio-CD Fuji Color-CD DVD-Video Video-CD CD-R *CD-RW * DVD-RDVD-RW Super Video CD (Super VCD)
