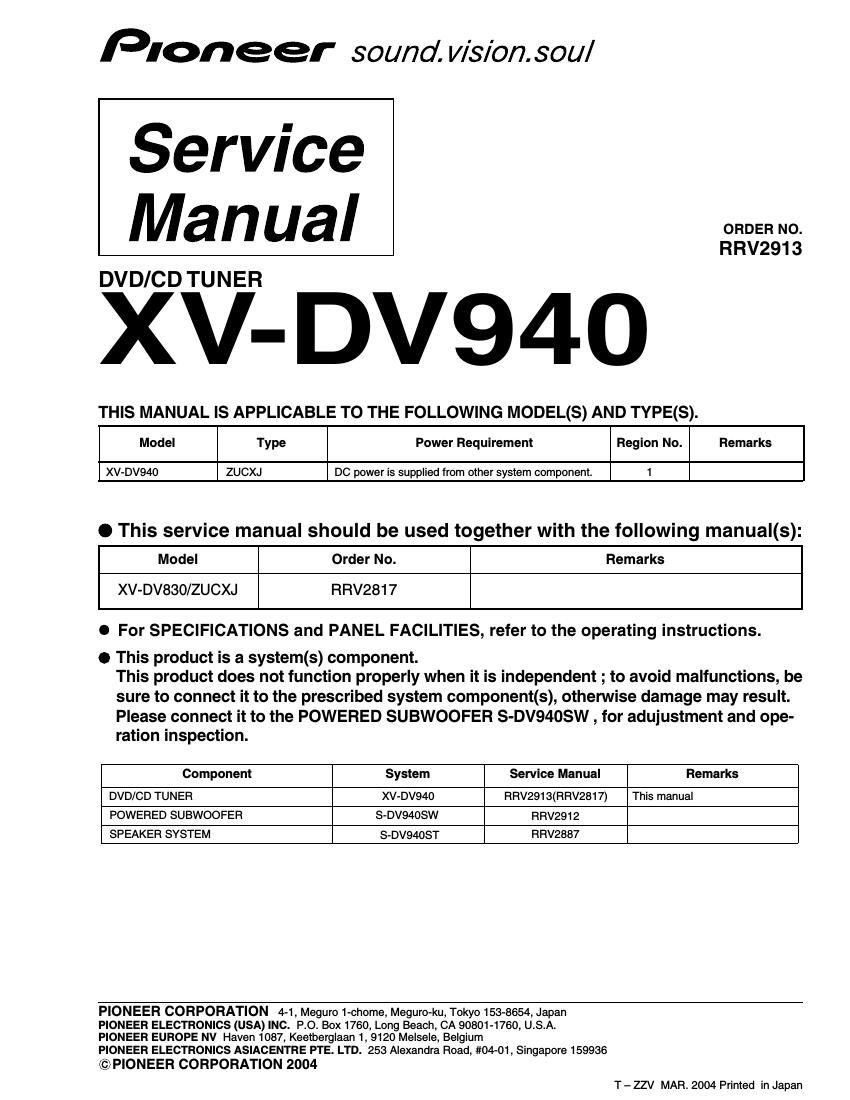

Pioneer xvdv 940 service manual

Page 1

2 1 23 4 1234 C D F A B E XV-DV940 1. CONTRAST OF MISCELLANEOUS PARTS jpfy For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: -When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω→56 × 10 1 →561 ........................................................ RD1/4PU 5 6 1 J 47k Ω→47 × 10 3 →473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω→R50 ..................................................................................... RN2H R 5 0 K 1 Ω→1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω→562 × 10 1→5621 ...................................................... RN1/4PC 5 6 2 1 F CONTRAST TABLE XV-DV940/ZUCXJ and XV-DV830/ZUCXJ are constructed the same except for the following: PACKING P9-12 Setup Guide (English, French) ARE7337 ARE7336 P9-19 Packing Case AHD8224 AHD8225 EXTERIOR SECTION P11-22 Rear Panel ANC8211 ANC8218 P11-34 Bottom Base AMA7030 AMA7031 P11-35 Top Panel AMB7850 AMB7890 P11-39 NSP Name Label AAL7338 AAL7339 P11-40 65 Label ARW7050 Not used P11-44 NSP Energy Star Label AAX7876 AAX8022 Ref. No.Remarks XV-DV830/ZUCXJ XV-DV940/ZUCXJPart No. Mark Symbol and Description
