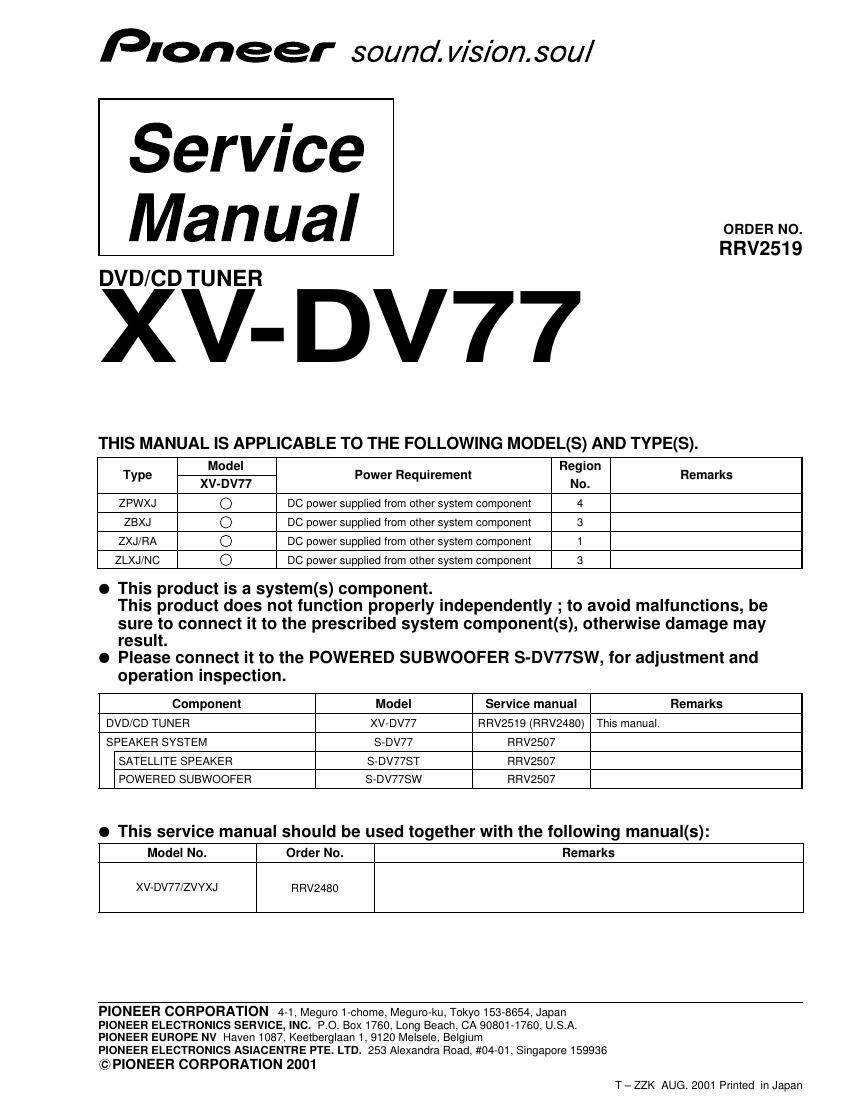

Pioneer xvdv 77 service manual

This is the 4 pages manual for pioneer xvdv 77 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
pioneer xvdv 77 service manual

Extracted text from pioneer xvdv 77 service manual (Ocr-read)

Page 1

XV-DV77 2 1. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description XV-DV77 XV-DV77 XV-DV77 XV-DV77 XV-DV77 Remarks /ZVYXJ /ZPWXJ /ZBXJ /ZXJ/RA /ZLXJ/NC PCB ASSEMBLIES NSP DVD COMP ASSY AWM7621 AWM7653 AWM7653 AWM7653 AWM7655 P7- 1 MOTHER ASSY AWU7806 AWU7923 AWU7923 AWU7923 AWU7929 P7-46 DSP ASSY AWU7807 AWU7924 AWU7924 AWU7924 AWU7930 P7-51 SIDER ASSY AWU7812 AWU7925 AWU7925 AWU7925 AWU7931 P7- 6 FM/AM TUNER MODULE AXQ7229 AXQ7228 AXQ7228 AXQ7228 AXQ7228*1 PACKING SECTION P4- 5 Packing Case AHD7987 AHD8049 AHD8044 AHD8046 AHD8045 P4- 8 NSP Warranty Card ARY7022 ARY7047 Not used Not used Not used EXTERIOR SECTION P7-16 Rear Panel ANC7999 ANC8056 ANC8049 ANC8053 ANC8049 P7-37 Tray Cap Assy AXG7119 AXG7120 AXG7120 AXG7120 AXG7120 P7-39 NSP Name Label AAL7277 AAL7286 AAL7283 AAL7283 AAL7285 DC Fan Motor Not used Not used Not used Not used AXM7019 No. 1 Radiation Sheet A Not used Not used Not used Not used AEB7236 No. 2 Radiation Sheet B Not used Not used Not used Not used AEB7237 No. 3 XV-DV77/ZPWXJ, ZBXJ, ZXJ/RA, ZLXJ/NC and ZVYXJ are constructed the same except for the following : EXPLODED VIEWS Notes : For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES and 2. SCHEMATIC DIAGRAM. *1 Refer to XV-DV77/ZUCXJ on the service manual RRV2480. The numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS . Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 DVDM ASSY 3 2 1 BBZ26P140FMC PCB Holder ZLXJ/NC Type Only ZLXJ/NC Type Only B

Page 2

XV-DV77 3 DSP ASSY F L Mark Symbol and DescriptionPart No. Remarks AWU7812 AWU7925 AWU7931 IC5701 BU1923F Not used Not used C5701 CEJQ100M16 Not used Not used C5702 CKSRYB271K50 Not used Not used C5703 CKSRYB561K50 Not used Not used C5704 CKSRYB103K50 Not used Not used C5706, C5707 CCSRCH270J50 Not used Not used R5701 Not used RS1/16S473J RS1/16S473J* R5702, R5703 Not used RS1/16S103J RS1/16S103J* R5704 RS1/16S0R0J Not used Not used R5705 RS1/16S101J Not used Not used X5701 CRYSTAL RESONATOR (4.332MHz) ASS7004 Not used Not used MOTHER ASSY F K SIDER ASSY F G AWU7925, AWU7931 and AWU7812 are constructed the same except for the following : CONTRAST OF PCB ASSEMBLIES AWU7923, AWU7929 and AWU7806 are constructed the same except for the following : Mark Symbol and DescriptionPart No. Remarks AWU7806 AWU7923 AWU7929 Q3651, Q3652 Not used Not used 2SC4081 Q3654 Not used Not used DTA124EUA Q3655 Not used Not used 2SD1858X D3651–D3653 Not used Not used 1SS355 D3654 Not used Not used UDZS7.5B C3651 Not used Not used CEAT101M10 C3653 Not used Not used CKSRYF104Z16 C3654 Not used Not used CKSRYB473K50 C3655 Not used Not used CEAT470M25 C5518 CKSRYB103K50 Not used Not used R3652 Not used Not used RS1/16S333J R3653, R3654 Not used Not used RS1/16S223J R3655 Not used Not used RS1/16S104J R3657 Not used Not used RS1/16S681J R3658 Not used Not used RF1/4PS330J R5551 RS1/16S223J Not used Not used R5552, R5553 RS1/16S0R0J Not used Not used R5566 RS1/16S473J RS1/16S473J RS1/16S223J R5567 Not used RS1/16S123J RS1/16S333J CN3651 2P CONNECTOR Not used Not used B2B-PH-K-S JA5501 STEREO MINI JACK DKN1124 Not used Not used 8001 PCB BINDER Not used Not used VEF1040 Mark Symbol and DescriptionPart No. Remarks AWU7807 AWU7924 AWU7930 R8601–R8602 RS1/16S0R0J Not used Not usedJA8601 1P PIN JACK VKB1077 Not used Not used AWU7924, AWU7930 and AWU7807 are constructed the same except for the following : * Refer to AWU7820 on the service manual RRV2480.
