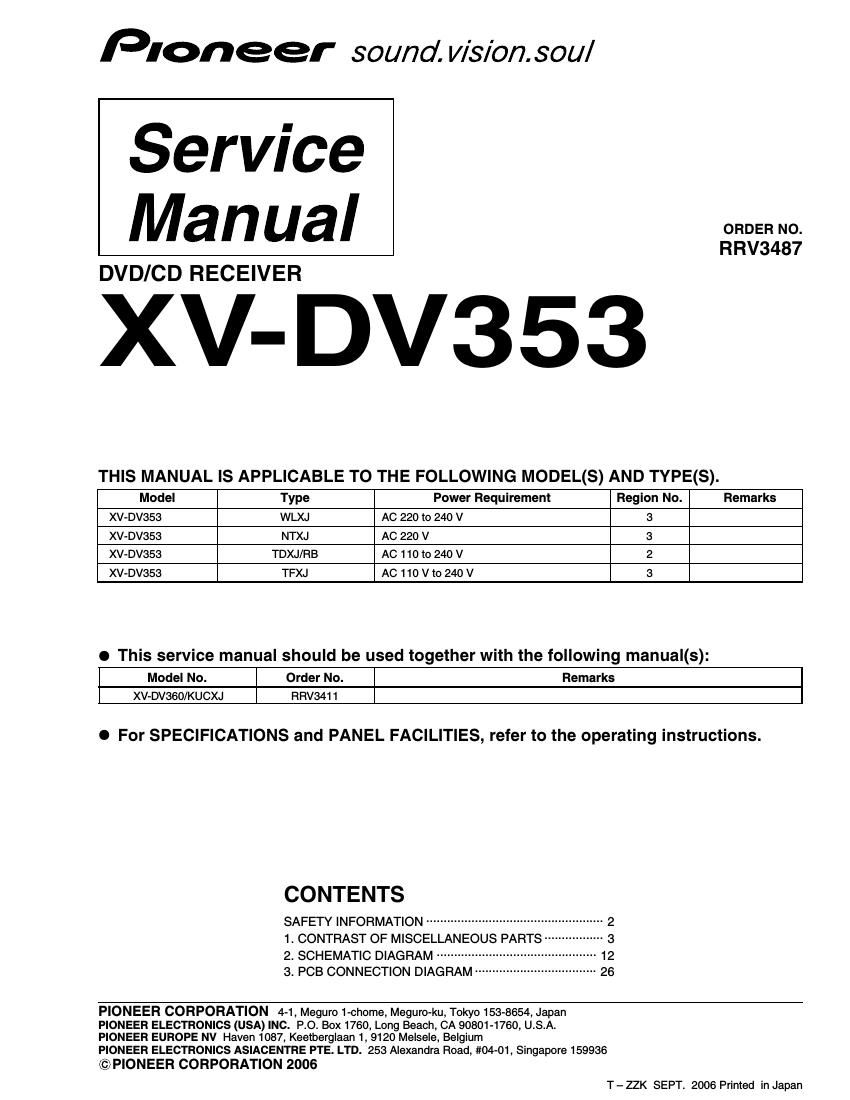

Page 1

Pioneer sound. vision. soul

Service
Manual

DVD/CD RECEIVER

XV- DV353

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER NO.
RRV3487

Model Type Power Requirement Region No. Remarks
XV-DV353 WLXJ AC 220 to 240 V 3
XV-DV353 NTXJ AC 220 V 3
XV-DV353 TDXJ/RB AC 110 to 240 V 2
XV-DV353 TFXJ AC 110 V to 240 V 3

I This service manual should be used together with the following manual(s):

Model No. Order No.

Remarks

XV-DV360/KUCXJ RRV341 1

O For SPECIFICATIONS and PANEL FACILITIES, refer to the operating instructions.

CONTENTS

SAFETY INFORMATION ...................................
1. CONTRAST OF MISCELLANEOUS PARTS '
2' SCHEMATIC DIAGRAM ...............................

12

3' PCB CONNECTION DIAGRAM ................................... 26

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, USA.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 2006

T - ZZK SEPT. 2006 Printed in Japan

Page 2

Sl\FE1YINFK)RhflAflT()N
I]

This service manual is intended for qualified service technicians ; it is not meant for the casual do-
it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this
manual.lmproperly performed repairs can adversely affect the safety and reliability of the product
and may void the warranty. If you are not qualified to perform the repair of this product properly and
safely, you should not risk trying to do so and refer the repair to a qualified service technician.

WARNING !

CLASS 1.

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1
BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR

A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS.

LASER DIODE CHARACTERISTICS

FOR DVD: MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 650 nm

FOR CD: MAXIMUM OUTPUT POWER : 7 mW
WAVELENGTH : 780 nm

LABEL CHECK

BAIIMOIII mumwmmmmmmmmwm

AWEINITIolt wmmwmnmlmmmsmn
wwEnEVnEzrwrmm Aurmwu.
Wummmummwamnmmvmmma

ADVATSEL mum! minimum

WARMING mlmwmmmmwmm
Mm. wWIK A" Minute FDR 31m

msflcw mimmm urmtmmam Mummmmu
Ill semiannual mum um nsu mm

£me wmxwmvmm wmxmwmam EIWIBILE. :vns lA
WHO?! A ms RIM)! WEE.

mm mm otzr mm mm: umnMummn :- mmtmtvuz.

m um um.
m4

XV-DV353NVLXJ, XV-DV353/NTXJ,
XV-DV353/TDXJ/RB : VRW2257

Name Label

CLASS I
LASER PRODUCT

. Laser Interlock Mechanism

[SAILITIIINI Z ELA$ 3I VISIILE AIII IIIIIIISIBILE LASER
RAIIATIUII WIIEII IIIPEIII,AI@II
EXPQSUIIE T3 THE IEAIIII.

EgTfiTEEEEEEEEEETEE
~ssvflw§aassao

XV-DV353/TFXJ: VRW2159

Additional Laser Caution

0 Loading switch ($101 on the LOAB Assy) is used for interlock
mechanism of the laser.

When this switch turned ON in SW2 (CLOSE) side (OPEN signal Is
0V and CLOSE signal is 3.5V), a laser becomes the status which can
completely oscillation.

Furthermore, the laser completely oscillates in the disc judgment and
disc playback.

When player is power ON state and laser diode is not completely
oscillating, 780nm laser diode is always oscillating by half power.

- Laser diode is driving with 0307 (650nm LD) and 0308 (780nm LD)
on the DVD MAIN Assy.

Therefore, when short~circuit between the emitter and collector of these
transistors or the base voltage is supplied for transistors turn on, the
laser oscillates. (failure mode)

0 In the test mode * , there is the mode that the laser oscillates except
for the discjudgment and playback. LD ON mode in the test mode
oscillates with the laser forcibly.

The interlock mechanism mentioned above becomes invalid in this
mode.

When the cover is open, close viewing through the objective lens with
the naked eye will cause exposure to the laser beam.

* : Refer to page 63 on the service manual RRV3411 .
