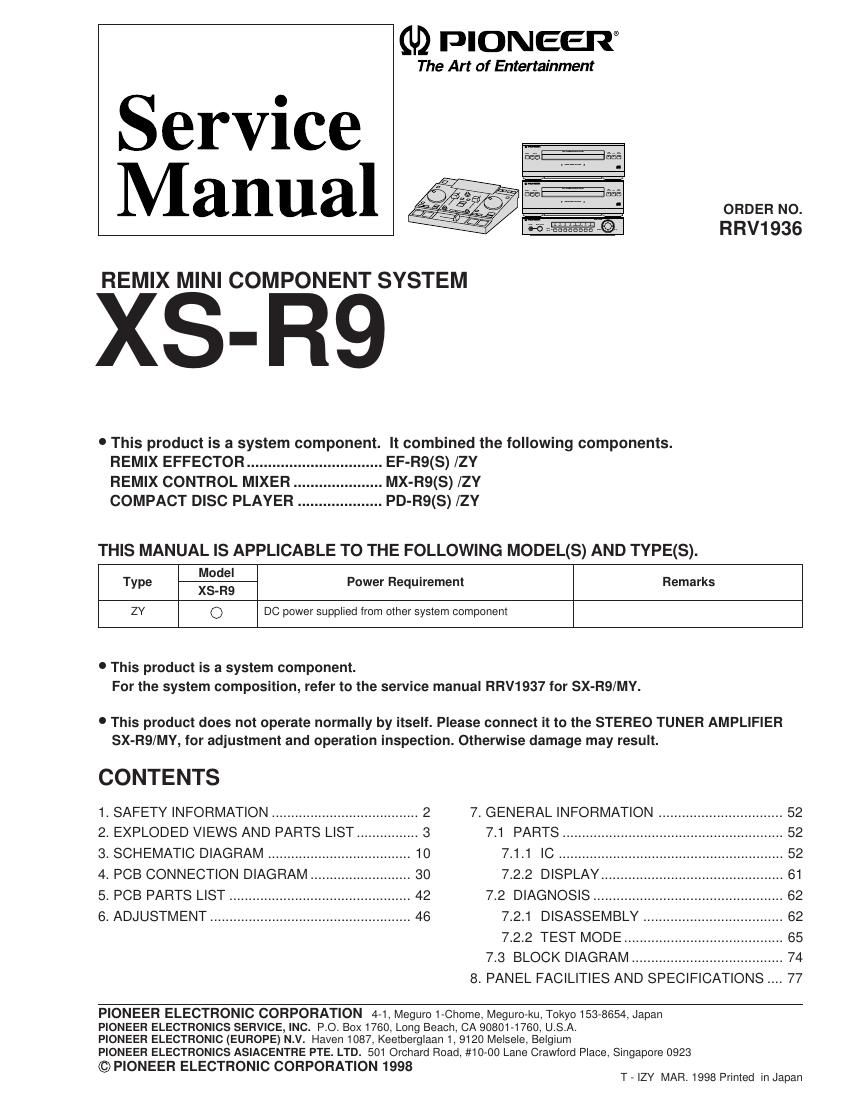

Page 1
2 XS-R9 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. LABEL CHECK (For PD-R9(S) /ZY) Avattaessa ja suojalukitus ohitetta- essa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. Osynlig laserstrålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. PRW1233 VARO! VARNING! USYNLIG LASERSTRÅLING VED ÅBNING NÅR SIKKERHED SAF- BRYDERE ER UDE AF FUNKTION. UNDGÅ UDSÆTTELSE FOR STRÅLING UNSICHTBARE LASER-STRAHLUNG TRITT AUS, WENN DECKEL (ODER KLAPPE) GEÖFFNET IST! NICHT DEM STRAHL AUSSETZEN! VRW1094 ADVARSEL VARNING! Additional Laser Caution 1. Laser Interlock Mechanism The position of the switch (S610) for detecting loading state is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch (S610) is not on CLMP terminal side (CLMP signal is OFF or high level.). Thus, the interlock will no longer function if the switch (S610) is deliberately set to CLMP terminal side (low level). The interlock also does not function in the test mode *. Laser diode oscillation will continue, if pin 1 of M51593FP (IC101) on the PRE-AMP BOARD ASSY mounted on the Pickup Assy is connected to GND, or pin 19 is connected to low level (ON). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. * : Refer to page 47. IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER : 5 mw WAVELENGTH : 780-785 nm
Page 2
3 XS-R9 2.1 PACKING · PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: · Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. · The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. · Screws adjacent to mark on the product are used for disassembly. NSP 1 Remix Effector EF-R9(S) 2 ¥ ¥ ¥ ¥ ¥ NSP 3 Remix Control Mixer MX-R9(S) NSP 4 Compact Disc Player PD-R9(S) 5 Caution Sheet ARM7034 6 ¥ ¥ ¥ ¥ ¥ 7 FM Antenna ADH7010 8 Operating Instructions ARC7201 (German/Italian) NSP 9 Warranty Card ARY7008 10 Operating Instructions ARC7202 (Spanish/Dutch) 11 Operating Instructions ARE7168 (English/French) 12 AM Loop Antenna ATB7009 13 Remote Control Unit AXD7148 (CU-SX123) NSP 14 Dry Cell Battery (R6P,AA) VEM-013 15 ¥ ¥ ¥ ¥ ¥ 16 Poly. Bag (0.03´230´340) Z21-038 17 Master Carton AHD7613 18 ¥ ¥ ¥ ¥ ¥ 19 Battery Cover AZA7219 20 ¥ ¥ ¥ ¥ ¥ 21 ¥ ¥ ¥ ¥ ¥ 22 Mirror Mat (500´650´0.5) AHG7050 23 Pad F EF AHA7189 24 Pad R EF AHA7190 25 Mirror Mat DHL1050 26 Pad L AHA7191 27 Pad R AHA7192 28 Pad F CD AHA7187 29 Pad R CD AHA7188 NSP 30 Silicagel AEN7001 FRONT 5 9 7 12 10 1114 16 1613 1 17 26 22 25 27 3 4 419 8 2830 30 29 25 28 29 25 23 24
