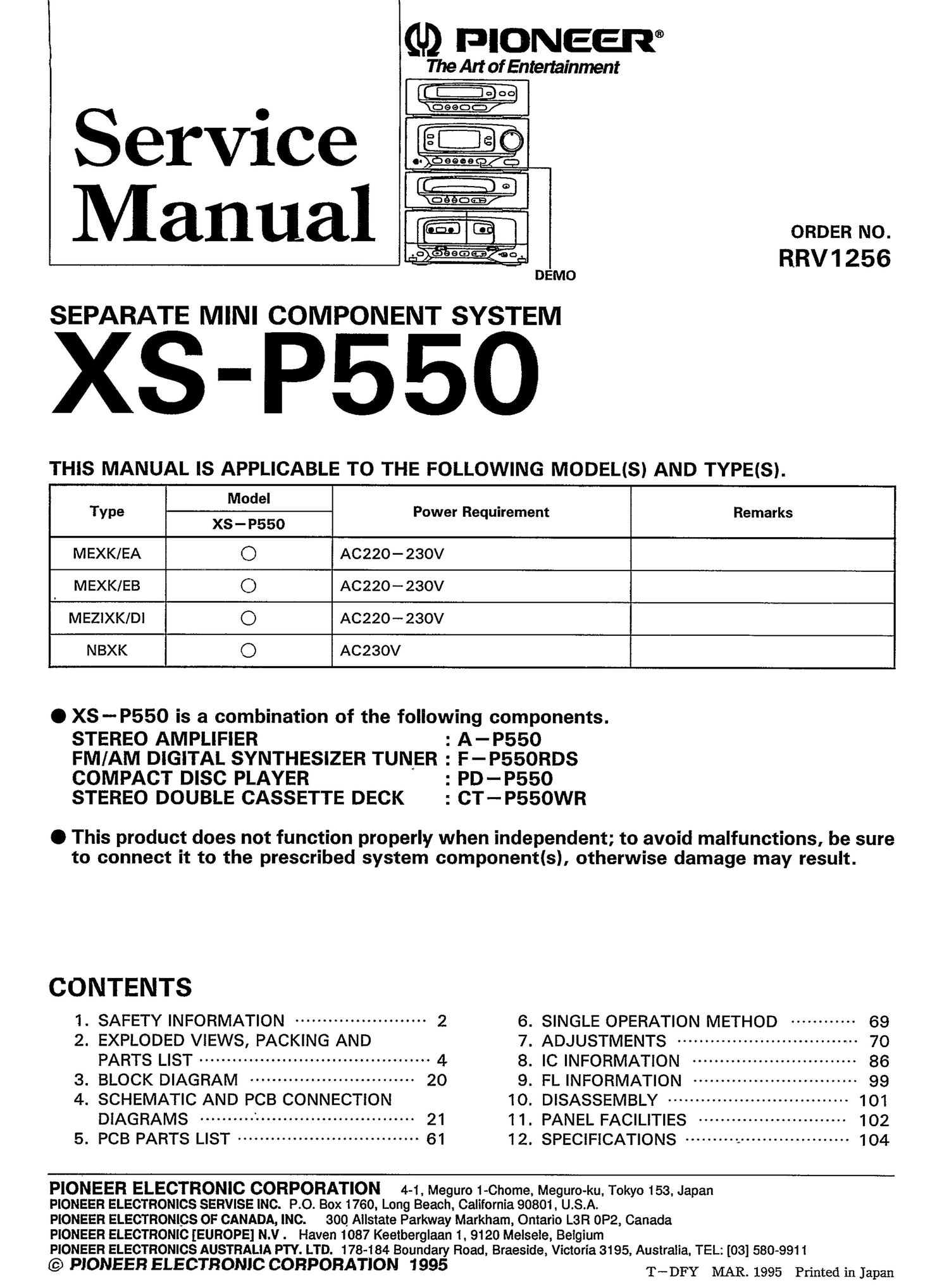

Page 1

(ll) PIONEER®
. The Art of Entertainment
(-

Service
Manual

SEPARATE MINI COMPONENT SYSTEM
XS - P 5 5 0 "

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELIS) AND TYPEISI.

Model

T e ------- Power Be uirement
yp XS-P550 q

MEXK/ EA 0 AC220- 230V
__.I_

MEXK/ EB AC220 -- 230V

ORDER NO.
RRV1256

MEZIXK/Dl A0220-230V

NBXK ACZ3OV

O XS--P550 is a combination of the following components.

STEREO AMPLIFIER : A-P550
FM/AM DIGITAL SYNTHESIZER TUNER : F-P550RDS
COMPACT DISC PLAYER : PD-P550

STEREO DOUBLE CASSETTE DECK : CT-P550WR

O This product does not function properly when independent; to avoid malfunctions, be sure
to connect it to the prescribed system componentls), otherwise damage may result.

CONTENTS

1. SAFETY INFORMATION ------------------------ 2 6. SINGLE OPERATION METHOD ------------ 69
2. EXPLODED VIEWS, PACKING AND 7. ADJUSTMENTS 70

PARTS LIST .......................................... 4 8. IC INFORMATION .............................. 86
3. BLOCK DIAGRAM .............................. 20 9_ FL INFORMATION .............................. 99
4. SCHEMATIC AND PCB CONNECTION 1o. DISASSEMBLY --------------------------------- 101

DIAGRAMS .......... ' ............................. 21 I 1. PANEL FACILITIES ........................... 102
5' PCB PARTS LIST ................................. 61 12. SPECIFICATIONS ..........J .................... 104

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVISE INC. PO. Box 1760, Long Beach, California 90801. USA.

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3FI 0P2, Canada

PIONEER ELECTRONIC [EUROPE] N.V . Haven 1087 Keetberglaan 1. 9120 Melsele, Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [03] 580-9911

© PIONEER ELECTRONIC CORPORATION 1995 T__DFY MAR.1995 Printed in Japan

Page 2

XS-P5 50

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxioant which
may cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5).

When servicing or handlng circuit boards and other components which contain lead in solder. avoid unprotected skin contact with
the solder. Also. when soldering do not inhale any smoke or fumes produced.

NOTICE

(FOR CANADIAN MODEL ONLY)

Fuse symbols EE- (fast operating fuse) and/or a (slow operating fuse) on PCB indicate that replacement parts
must be of identical designation.

REMARQUE

(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible-a- (fusible de type rapide) eru @- (fusible de type lent) sur CCl indiquent que les
pieces de remplacement doivent avoir la méme designation.

-- (FOR USA MODEL ONLY) -

1. SAFETY PRECAUTIONS ANY MEASUREMENTS NOT WITHIN THE LIMITS

The following check should be performed for the
continued protection of the customer and service

technician.

LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground

(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays. control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.

Reading should
not be above
0.5 mA

Test all exposed
metal 3 u'faces

% Also test writ" plug

reve'sed (Using

AC adapter plug
@ as required) 5

i Earth ground

-
-

AC Leakage Test

OUTLINED ABOVE ARE INDICATIVE OF A PC-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli«
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for
voltage, wattage , etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a Li} on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock.
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information. always consult the current
PIONEER Service Manual. Asubscriptlon to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
