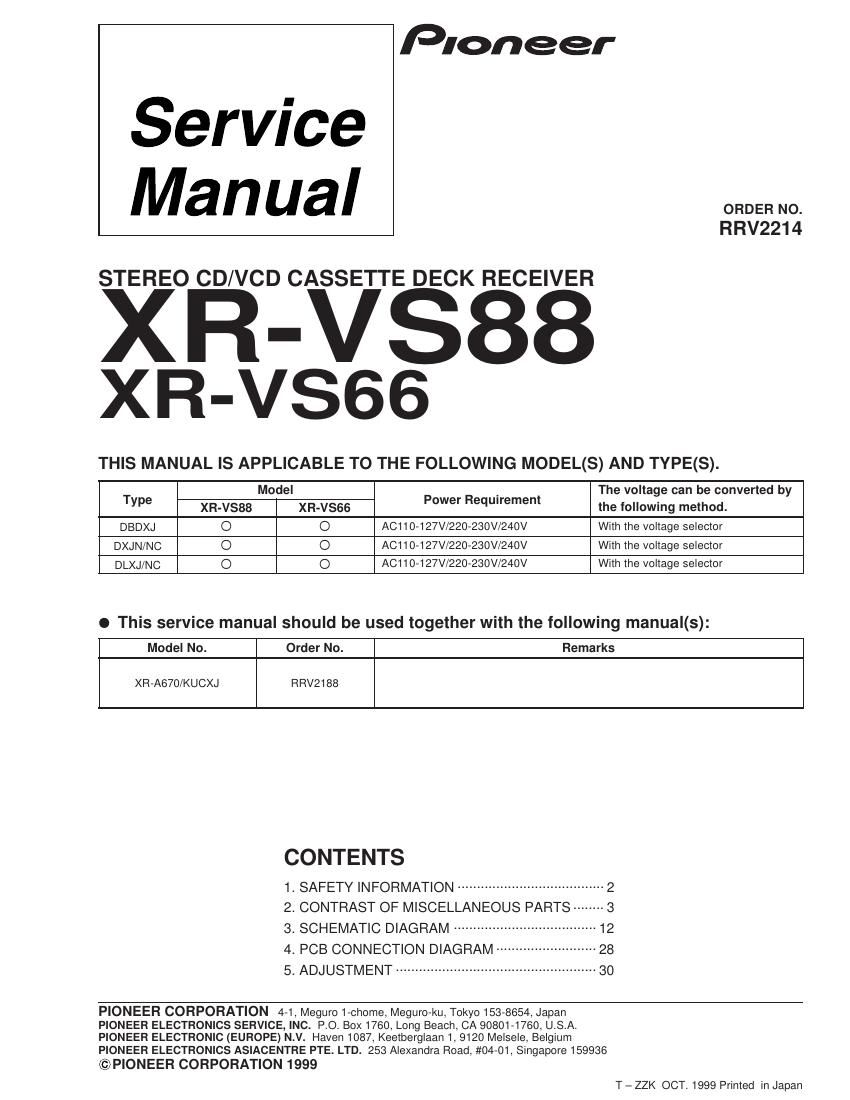

Page 1

Service
Manual

Pioneer

ORDER NO.
RRV2214

STEREO CD/VCD CASSETTE DECK RECEIVER

XR-VSBB
XR-VSGB

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type Model Power Requirement The voltage can be converted by
XR-VSSS XR-VSBG the followmg method.
DBDXJ O O ACt1o-127V/220-230V/240V With the voltage selector
DXJN/NC O O AC1tO-127V/220-230V/240V With the voltage selector
DLXJ/NC O O AC110-127V/220-230V/240V With the voltage selector

o This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
XR-A670/KUCXJ RRV2188
CONTENTS
1- SAFETY INFORMATION ...................................... 2
2. CONTRAST OF MISCELLANEOUS PARTS -------- 3
3- SCHEMATIC DIAGRAM ..................................... 12

4. PCB CONNECTION DIAGRAM ------
5. ADJUSTMENT -----

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 1999

T -ZZK OCT. 1999 Printed in Japan

Page 2

XR-VS88, XR-VSGG

1. SAFETY INFORMATION

LABEL CHECK (for DLXJ/NC and DXJN/NC types)

Printed on the Rear Panel

- IMPORTANT -
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.

SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.

LASER DIODE CHARACTERISTICS 7
MAXIMUM OUTPUT POWER: 1.3 mW
WAVELENGTH: 790nm : 25 nm

CAUTION
INVISIBLE LASER
RADIATION WHEN OPEN.
AVOID EXPOSURE
TO BEAM PRWIOIS

1. Laser Interlock Mechanism
The position of the switch (39501 I for detecting loading
state is detected by the system microprocessor, and
the design prevents laser diode oscillation when the
switch (89501) is pressed physically.
Thus, the interlock will no longer funcdon if the switch (89501)
is released physically and deliberatery.
The interlock also does not function in the test mode *.
Laser diode oscillation will continue, if pin 62 of L9240ML
(IC1101) on the CD ASSY mounted on the SM Loading
Mechanism assembly is connected to GND, or else the
terminals of 01101 are shorted to each other (fault
condition).

2.When the cover is opened, close viewing of the
objective lens with the naked eye will cause exposure
to a Class 1 laser beam.

Additional Laser Caution -

* : Refer to page 66 on the service manual RRV2188.
