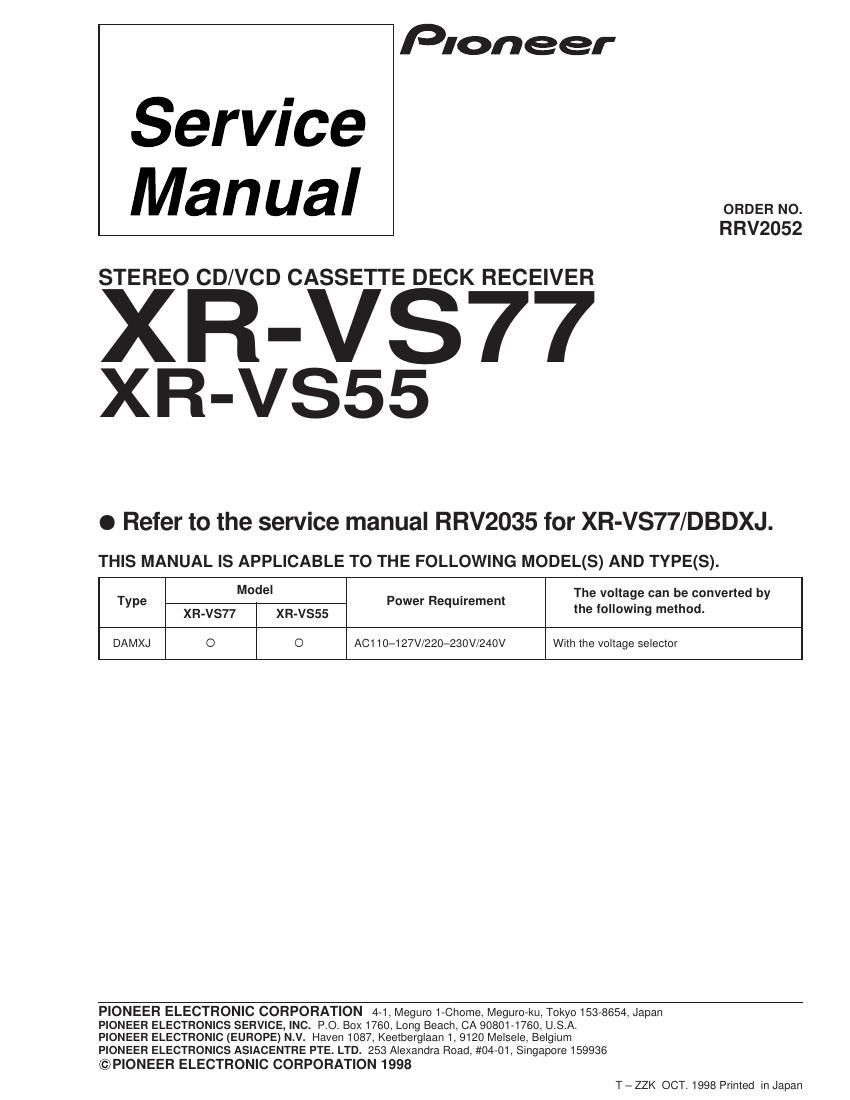

Pioneer xrvs 77 service manual

This is the 2 pages manual for pioneer xrvs 77 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
pioneer xrvs 77 service manual

Extracted text from pioneer xrvs 77 service manual (Ocr-read)


Page 1

XR-VS77, XR-VS55 2 1. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE XR-VS77/DAMXJ and XR-VS77/DBDXJ are constructed the same except for the following : NOTES: · Parts marked by "NSP" and can not be supplied. · The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. · Screws adjacent to mark on the product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. XR-VS55/DAMXJ and XR-VS55/DBDXJ are constructed the same except for the following : Packing Case 1Rear Panel 2 Part No. XR-VS77 /DBDXJ Ref. No. Symbol and Description Remarks MarkXR-VS77 /DAMXJ PACKING SECTION P3-10 Packing Case XHD3054 XHD3066 P3-13 Power Cord ADG1158 ADG7018 Label Not used ARW7038 No.1 NSP Warranty Card Not used ARY7028 EXTERIOR (2/2) SECTION P7-26 NSP Name Label XAL3008 XAL3009 Label Not used PRW1499 No.2 Part No. XR-VS55 /DBDXJ Ref. No. Symbol and Description Remarks MarkXR-VS55 /DAMXJ PACKING SECTION P3-10 Packing Case XHD3056 XHD3068 P3-13 Power Cord ADG1158 ADG7018 Label Not used ARW7038 No.1 NSP Warranty Card Not used ARY7028 EXTERIOR (2/2) SECTION P7-26 NSP Name Label XAL3023 XAL3024 Label Not used PRW1499 No.2 Notes:Ö The numbers in the remarks column correspond to the numbers on "EXPLOEDED VIEWS". EXPLODED VIEWS Ö PACKING SECTIONÖ EXTERIOR (2/2) SECTION
