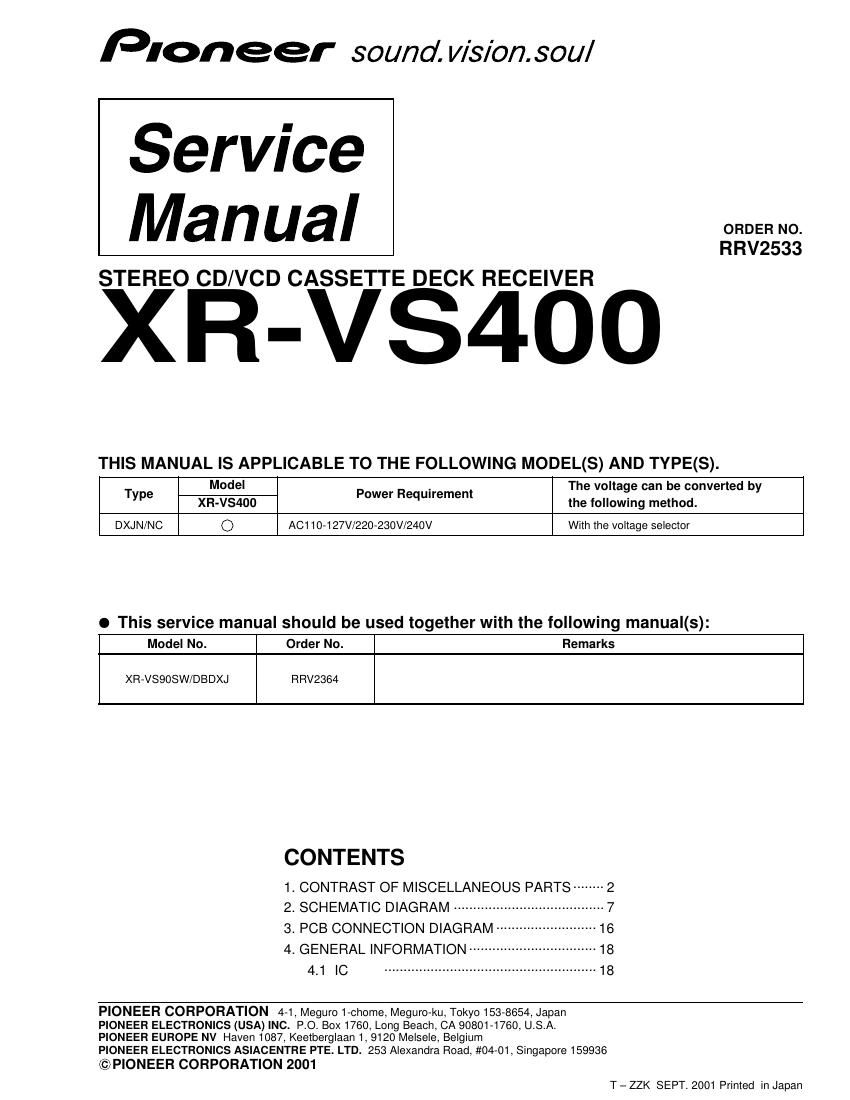

Pioneer xrvs 400 service manual
This is the 25 pages manual for pioneer xrvs 400 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xrvs 400 service manual (Ocr-read)
Page 1
XR-VS400 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 CONTRAST TABLE XR-VS400/DXJN/NC and XR-VS90SW/DBDXJ are constructed the same except for the following : Part No. Ref. No. Mark Symbol and Description XR-VS90SW XR-VS400 Remarks /DBDXJ /DXJN/NC PCB ASSEMBLIES MAIN ASSY XWM3164 AWM7604 P5- 1 AF ASSY XWZ3313 AWU7788 COMPLEX ASSY XWM3170 AWM7616 P5- 3 PRIMARY ASSY XWZ3291 AWU7965 P7- 1 DISPLAY ASSY XWZ3315 AWU7799 P5- 4 FM/AM TUNER Module AXQ7062 AXQ7065 *1 PACKING SECTION P3- 1 Power Cord ADG1158 ADG1154 P3- 4 Remote Control Unit XZN3107 XZN3121 P3- 8 Front Pad XHA3018 XHA3028 P3- 9 Rear Pad XHA3019 XHA3029 P3-10 Packing Case XHD3132 XHD3276 P3-12 Operating Instructions (English/Chinese/Spanish) XRE3034 Not used P3-12 Operating Instructions (Thai) Not used XRC3047 P3-14 SW Wire Antenna ADH7006 Not used Caution Sheet XRH3003 Not used EXTERIOR SECTION P5- 5 NSP $M MECHA. VCD XXA3017 Not used P5- 5 NSP $M MECHA. VCD/MP3 Not used AXA7107 P5-11 Tray Cap XAK3156 XAK3236 Tray Panel CD Not used XAK3235 For Tray Cap P5-15 Rear Panel XNC3062 XNC3135 P5-26 NSP Tray Cap Assy XXG3046 Not used P5-31 Caution Label Not used PRW1018 P5-36 NSP Getter XAX3173 XAX3268 P5-44 Barrier XEC3013 XEC3027 NSP Name Label XAL3048 XAL3098 Rear Sheet AED7037 Not used FRONT PANEL SECTION P7-8 GND Plate C XNG3047 Not used P7-18 Volume Knob XAA3013 XAA3022 P7-21 FUNC Button L XAD3050 XAD3111 No.8 FUNC Cap L Not used XAK3247 No.7 P7-22 FUNC Button R XAD3051 XAD3112 No.10
Page 2
XR-VS400 3 Notes : For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES and 2. SCHEMATIC DIAGRAM. The numbers in the remarks column correspond to the numbers on the FRONT PANEL ASSY . *1 Refer to XR-VS90/DLXJ/NC. Part No. Ref. No. Mark Symbol and Description XR-VS90SW XR-VS400 Remarks /DBDXJ /DXJN/NC FUNC Cap R Not used XAK3248 No.9 P7-23 FUNC Frame L XAD3052 Not used P7-24 FUNC Frame R XAD3053 Not used P7-25 CD ENT Button XAD3055 XAD3109 No.12 P7-26 Display Panel XAK3233 XAK3318 P7-27 EQ Panel XAK3150 Not used SC Panel Not used XAK3268 No.26 SC Panel Assy Not used XXG3090 No.13 P7-28 JOG Lens XAK3152 XAK3243 No.23 P7-29 V Lens XAK3153 XAK3313 P7-33 FL Cover XAK3163 XAK3239 P7-34 Cover Sheet L XAK3184 Not used P7-35 Cover Sheet R XAK3185 Not used LED Barrier Not used XEC3022 No.24 P7-36 Power Button XAD3043 XAD3102 No.17 P7-37 CD Button XAD3045 XAD3104 No.19 P7-38 SC Button XAD3046 Not used SC Button L Not used XAD3105 No.29 SC Cap L Not used XAK3241 No.27 SC Button R Not used XAD3106 No.30 SC Cap R Not used XAK3267 No.28 ASES Button Not used XAD3114 No.20 Timer Button Not used XAD3115 No.21 P7-39 SC Button L XAD3047 Not used Audio Button Not used XAD3107 No.14 P7-40 SC Button R XAD3048 Not used Visual Button Not used XAD3108 No.15 P7-41 DOLBY Button XAD3054 XAD3121 No.11 P7-42 Sub Panel XAK3201 XAK3307 No.6 P7-43 Standby Lens XAK3151 XAK3240 No.18 P7-44 Deck Lens L XAK3159 XAK3249 No.3 P7-45 Deck Lens R XAK3160 XAK3250 No.5 P7-46 JOG Conductor XAK3165 XAK3244 No.22 P7-47 Deck Door_L XAN3022 XAN3037 No.2 P7-48 Deck Door_R XAN3026 XAN3038 No.4 P7-49 Front Panel XMB3026 XMB3056 No.1 O/C Button Not used XAD3103 No.16 P7-50 NSP Front Panel Assy XXG3065 XXG3116 P7-51 GND Plate A Not used XNG3030 P7-52 Spacer XEB3012 Not used P7-53 Spacer XEB3013 Not used P7-59 Cushion Spacer XEB3015 Not used P7-60 Cushion Spacer XEB3016 Not used P7-61 Cushion Spacer XEB3017 Not used Spacer XEC3014 Not used Spacer XEC3019 Not used
