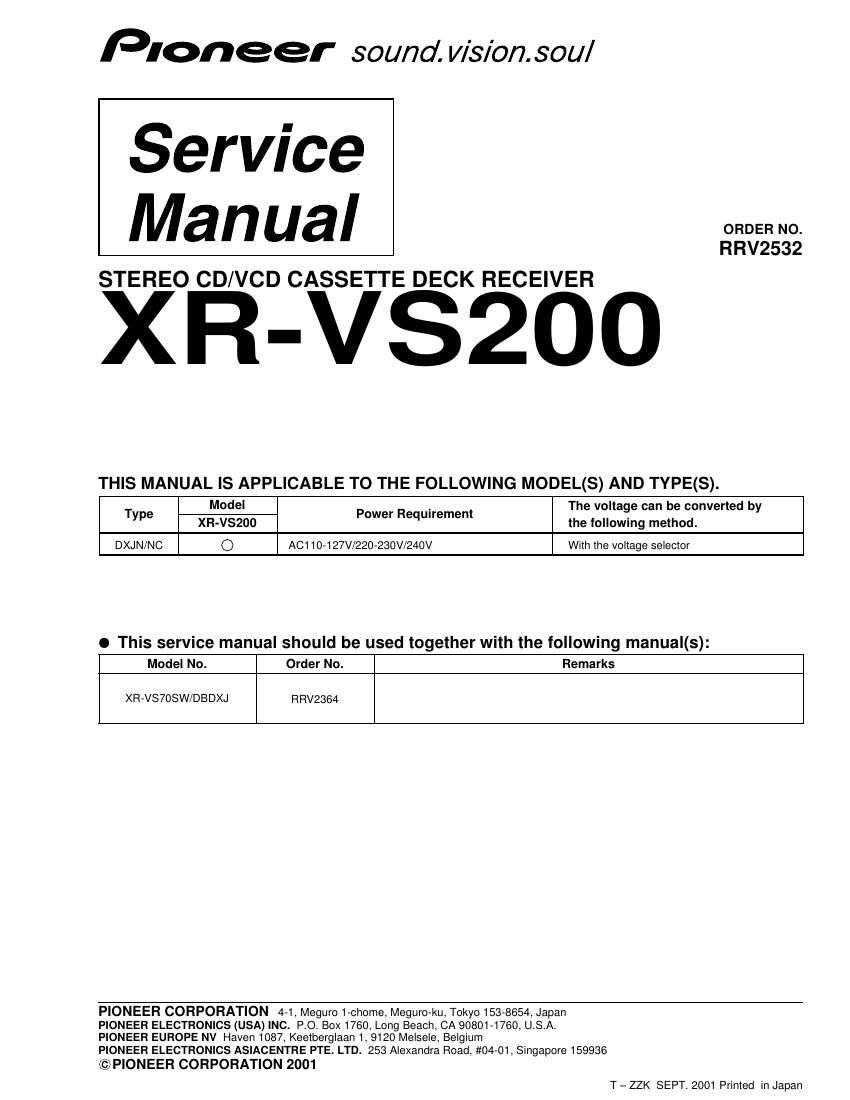

Pioneer xrvs 200 service manual
This is the 4 pages manual for pioneer xrvs 200 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xrvs 200 service manual (Ocr-read)
Page 1
XR-VS200 2 2. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 XR-VS200/DXJN/NC and XR-VS70SW/DBDXJ are constructed the same except for the following : Part No. Ref. No. Mark Symbol and Description XR-VS70SW XR-VS200 Remarks /DBDXJ /DXJN/NC PCB ASSEMBLIES COMPLEX ASSY XWM3160 AWM7611 P5- 3 PRIMARY ASSY XWZ3291 AWU7965 P7- 1 DISPLAY ASSY XWZ3302 AWU7795 P5- 4 FM/AM TUNER Module AXQ7062 AXQ7065 *1 PACKING SECTION P3- 1 Power Cord ADG1158 ADG1154 P3- 8 Front Pad XHA3018 XHA3028 P3- 9 Rear Pad XHA3019 XHA3029 P3-10 Packing Case XHD3124 XHD3270 P3-12 Operating Instructions XRE3034 Not used (English/Chinese/Spanish) P3-12 Operating Instructions (Thai) Not used XRC3047 P3-14 SW Wire Antenna ADH7006 Not used Caution Sheet XRH3003 Not used EXTERIOR SECTION P5-11 Tray Cap XAK3156 XAK3236 Tray Panel CD Not used XAK3269 For Tray Cap P5-15 Rear Panel XNC3057 XNC3133 P5-26 NSP Tray Cap Assy XXG3046 Not used P5-31 Caution Label Not used PRW1018 P5-36 NSP Getter XAX3168 XAX3264 P5-44 Barrier XEC3013 XEC3027 Rear Sheet AED7037 Not used NSP Name Label XAL3045 XAL3097 FRONT PANEL SECTION P7-18 Volume Knob XAA3013 XAA3022 P7-21 FUNC Button L XAD3078 XAD3116 No.8 FUNC Cap L Not used XAK3247 No.7 P7-22 FUNC Button R XAD3079 XAD3117 No.10 FUNC Cap R Not used XAK3248 No.9 P7-23 FUNC Frame L XAD3052 Not used P7-24 FUNC Frame R XAD3053 Not used P7-25 CD ENT Button XAD3055 XAD3109 No.12 P7-26 Display Panel XAK3129 XAK3317 P7-27 EQ Panel XAK3149 Not used
Page 2
XR-VS200 3 DISPLAY ASSY F I CONTRAST OF PCB ASSEMBLIES AWU7795 and XWZ3302 are constructed the same except for the following : Mark Symbol and DescriptionPart No. Remarks XWZ3302 AWU7795 D5594 1SS133 Not used D5610, D5611, D5615, D5616, D5904 SLP3118C51H SLR-343MC(NPQ) D5612, D5614 SLP6118C51H SLR-343DC(NPQ) D5619, D5620, D5903 SLP9118C51H SLR-343VC(NPQ) D5902 SLP7118C51H SLR-343PC(KLM) S5911, S5913, S5915–S5921, S5923–S5929 XSG3001 ASG1051 S5931–S5940 XSG3001 ASG1051 Notes : For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES. The numbers in the remarks column correspond to the numbers on the FRONT PANEL ASSY . *1 Refer to XR-VS70/DLXJ/NC. Part No. Ref. No. Mark Symbol and Description XR-VS70SW XR-VS200 Remarks /DBDXJ /DXJN/NC SC Panel Not used XAK3268 No.26 SC Panel Assy Not used XXG3090 No.13 P7-28 JOG Lens XAK3152 XAK3243 No.23 P7-29 V Lens XAK3153 XAK3313 P7-33 FL Cover XAK3163 XAK3239 P7-34 Cover Sheet L XAK3184 Not used P7-35 Cover Sheet R XAK3185 Not used LED Barrier Not used XEC3022 No.24 P7-36 Power Button XAD3043 XAD3102 No.17 P7-37 CD Button XAD3045 XAD3104 No.19 P7-38 SC Button XAD3060 Not used SC Button L Not used XAD3105 No.29 SC Cap L Not used XAK3241 No.27 SC Button R Not used XAD3106 No.30 SC Cap R Not used XAK3267 No.28 ASES Button Not used XAD3114 No.20 Timer Button Not used XAD3115 No.21 P7-39 SC Button L XAD3047 Not used Audio Button Not used XAD3107 No.14 P7-40 SC Button R XAD3049 Not used Visual Button Not used XAD3108 No.15 P7-41 DOLBY Button XAD3054 XAD3119 No.11 P7-42 Sub Panel XAK3198 XAK3256 No.6 P7-43 Standby Lens XAK3151 XAK3240 No.18 P7-44 Deck Lens L XAK3159 XAK3249 No.3 P7-45 Deck Lens R XAK3160 XAK3250 No.5 P7-46 JOG Conductor XAK3165 XAK3244 No.22 P7-47 Deck Door_L XAN3021 XAN3041 No.2 P7-48 Deck Door_R XAN3025 XAN3042 No.4 P7-49 Front Panel XMB3026 XMB3056 No.1 O/C Button Not used XAD3103 No.16 P7-50 NSP Front Panel Assy XXG3062 XXG3115 P7-52 Spacer XEB3012 Not used P7-53 Spacer XEB3013 Not used P7-59 Cushion Spacer XEB3015 Not used P7-60 Cushion Spacer XEB3016 Not used P7-61 Cushion Spacer XEB3017 Not used Spacer XEC3014 Not used Spacer XEC3019 Not used
